Anti Interference Intelligent Weighing Technology Scales Data Transmission Weighing Transmitter
Anti Interference Intelligent Weighing Technology Scales Data Transmission Weighing Transmitter
Anti Interference Intelligent Weighing Technology Scales Data Transmission Weighing Transmitter
Anti Interference Intelligent Weighing Technology Scales Data Transmission Weighing Transmitter
Anti Interference Intelligent Weighing Technology Scales Data Transmission Weighing Transmitter
Anti Interference Intelligent Weighing Technology Scales Data Transmission Weighing Transmitter
Anti Interference Intelligent Weighing Technology Scales Data Transmission Weighing Transmitter
Anti Interference Intelligent Weighing Technology Scales Data Transmission Weighing Transmitter
Specifications
Communication :
RS232， RS485（Modbus-RTU)
Packaging Details :
carton packaging
Brand Name :
Linmindu
Model Number :
LM520
Option :
4-20mA, 0~10V Analog Output 2 In 4 Out IO
Delivery Time :
20 days
Shell Structure :
ABS Engineering Plastic
Product :
Ordinary Weighing Instrument
Supply Ability :
1,000 units per month
Rate :
A/D Rate 120Hz
Payment Terms :
Payment before delivery
Working Power Supply :
18~36VDC DC Input, Power 3~5W
Place of Origin :
China
Description

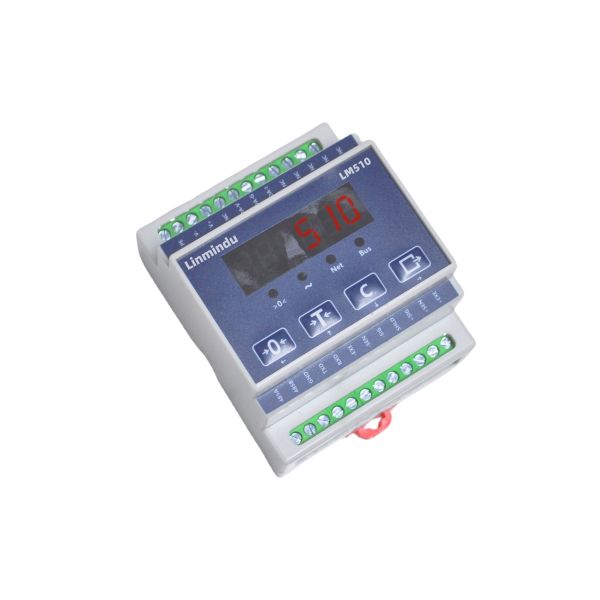

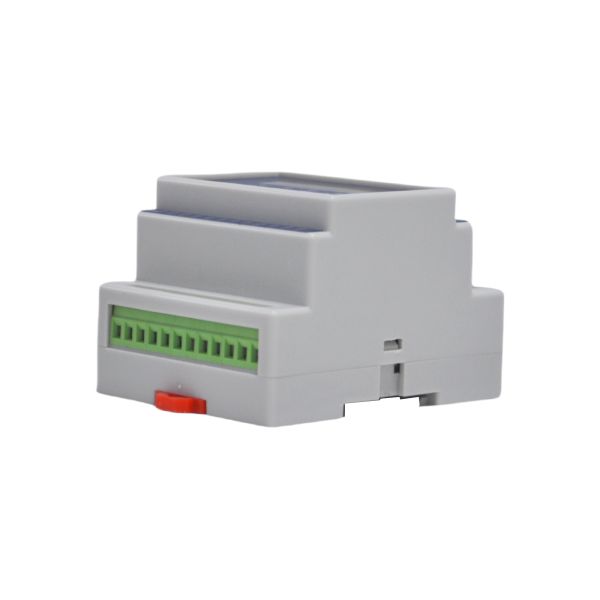

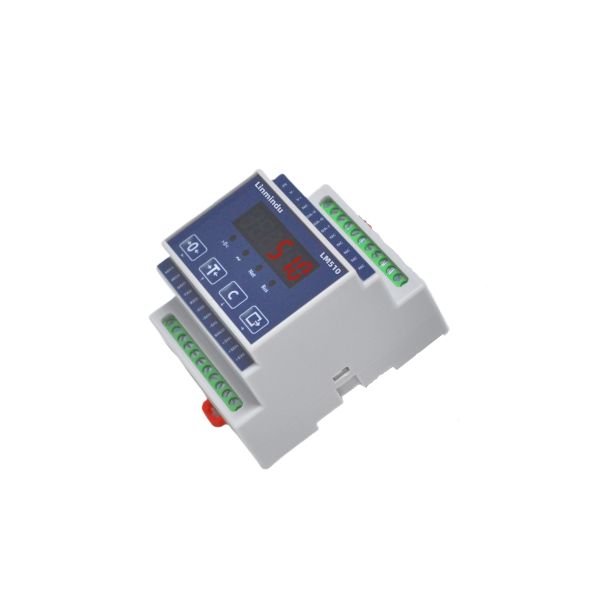

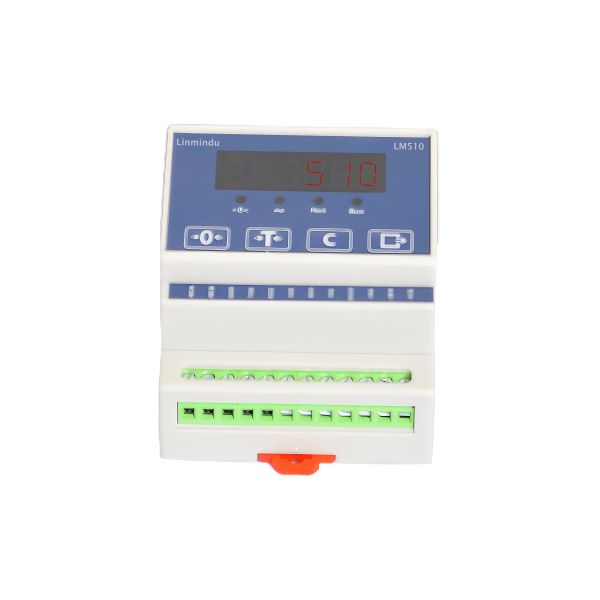

LM520 Weighing Transmitter Owns Excellent Stability And Outstanding Anti-interference Capability, Ideal For Signal Conversion And Data Transmission In Industrial Weighing Systems.

The LM520 Weight Transmitter boasts high stability and robust anti-interference performance, specifically designed for signal conversion and transmission in industrial weighing systems. It delivers reliable signal processing, ensuring accurate and consistent data transfer to meet the operational needs of various industrial weighing scenarios.

Specifications

Project

Parameters

Overall Dimensions

Length x width x height: 72 × 88 × 59mm

Shell Structure

ABS Engineering plastic

Installation Method

Rail mounted installation inside the control cabinet

Protection Level

IP54

Keyboard

4 Touch buttons

Accuracy Rate

Display division of 100000, A/D rate of 120Hz
Weighing

1 Analog signal, 8-10 350 Ω sensors

Storage Environment

-40~60 ℃, 10%~95% relative humidity, no condensation

Working Environment

-10~40 ℃, 10%~95% relative humidity, no condensation

Application Cases

Anti Interference Intelligent Weighing Technology Scales Data Transmission Weighing Transmitter

Anti Interference Intelligent Weighing Technology Scales Data Transmission Weighing Transmitter

Weighing of material tower

Convert the weighing sensor signal into digital display, and transmit, store, count, and print the weight data. The application of tower weighing not only improves the automation and intelligence level of aquaculture, but also effectively reduces feed waste, improves aquaculture efficiency and economic benefits through precise data analysis and management.

Industrial automation field

It can be applied to automated production processes, production line sorting, automatic batching, and quantitative packaging. Industrial robots play an important role in handling, mechanical processing, production line assembly, welding, and multiple fields, and are widely used in the industrial robot industry.
