24vdc Weighing Transmitter Signal Conversion Data Transmission Hi Tech Weighing Scale
24vdc Weighing Transmitter Signal Conversion Data Transmission Hi Tech Weighing Scale
24vdc Weighing Transmitter Signal Conversion Data Transmission Hi Tech Weighing Scale
24vdc Weighing Transmitter Signal Conversion Data Transmission Hi Tech Weighing Scale
24vdc Weighing Transmitter Signal Conversion Data Transmission Hi Tech Weighing Scale
24vdc Weighing Transmitter Signal Conversion Data Transmission Hi Tech Weighing Scale
24vdc Weighing Transmitter Signal Conversion Data Transmission Hi Tech Weighing Scale
24vdc Weighing Transmitter Signal Conversion Data Transmission Hi Tech Weighing Scale
Specifications
Place of Origin :
China
Protection Level :
IP54
Supply Ability :
1,000 units per month
Product :
Ordinary Weighing Instrument
Installation Method :
Panel Installation
Brand Name :
Linmindu
Working Power Supply :
DC 24 VDC
Rate :
A/D rate 120Hz
Packaging Details :
carton packaging
Delivery Time :
20 days
Model Number :
LM570
Payment Terms :
Payment before delivery
Keyboard :
20 Touch buttons
Description

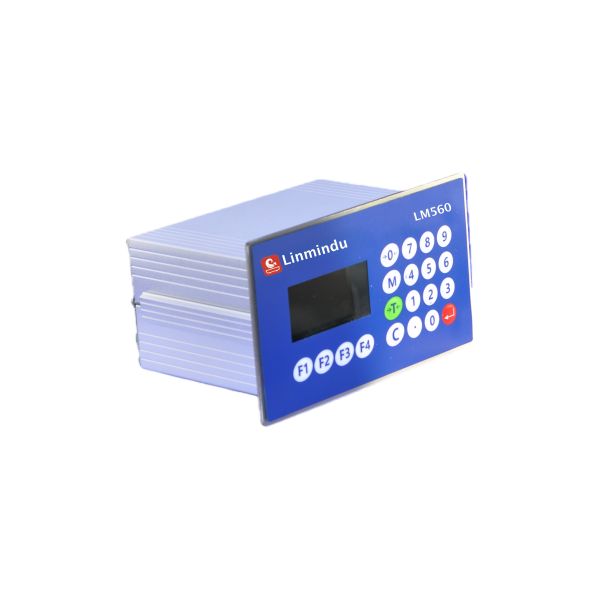

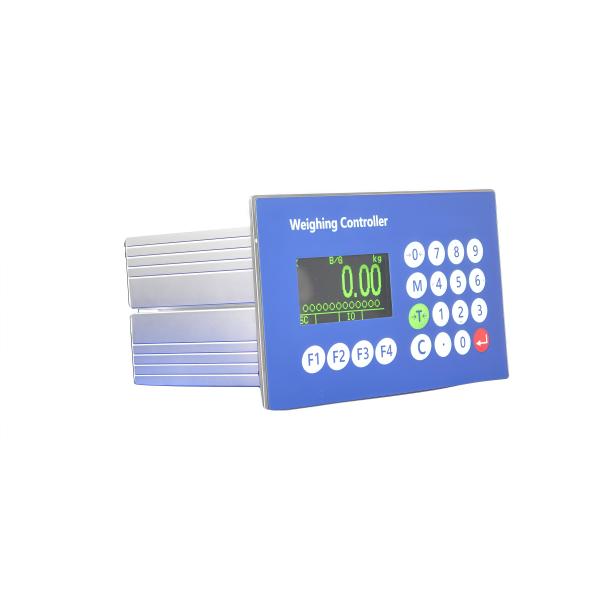

LM570 Weighing Transmitter features dependable performance and consistent output, suited for signal conversion and data transmission in industrial weighing scenarios.

The LM570 Weighing Controller is engineered for the quantitative filling of various liquids, both on and below the liquid surface. This instrument features a Chinese-English graphical interface that can directly display the working process of the filling scale. It comes with multiple practical functions, including automatic barrel detection, automatic gun lowering, barrel collision protection, and automatic underwater gun lifting. It is suitable for filling all types of foamy or non-foamy liquids, whether for net weight or gross weight measurement.

Product Features

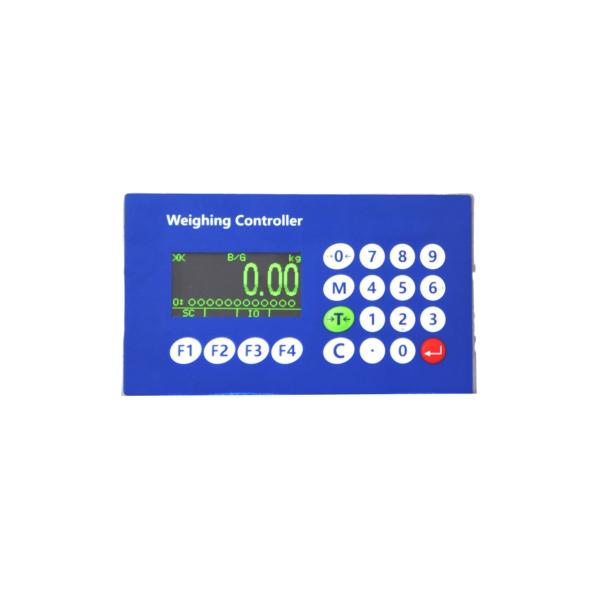

  • 2.7-inch OLED dot matrix graphic display screen, supporting switching between Chinese and English

  • Supports 1 analog scale platform access, up to 12 sensors

  • Maximum display division of 100000

  • Standard configuration includes 1 RS232, 1 RS485, IO: 4 inputs, 6 transistor outputs

  • Multiple calibration modes

    • Multi point calibration (supports up to 5 points)

    • Calibration via MODBUS-RTU remote protocol (only supports 2-point calibration)

    • Weight free calibration

  • Working power supply: DC 24VDC, AC 100-20VAC, power less than 6W

Specifications

Project

Parameters

Overall Dimensions

Length x Width x Height: 170 x 100 x 106mm

Shell Structure

Aluminum alloy shell, stainless steel panel

Installation Method

Panel installation

Protection Level

IP54

Keyboard

20 Touch buttons

Accuracy Rate

Display division of 100000, A/D rate of 120Hz

Weighing

1 Analog signal, up to 12 350 Ω sensors

Working Mode

Comparison of preset points, upper and lower limit alarms, weight control, reduction control, peak force measurement, weighing and canning, etc

Working Environment

-10 ° C~+40 ° C, relative humidity: 10%~90%, non condensing

Application Scenario

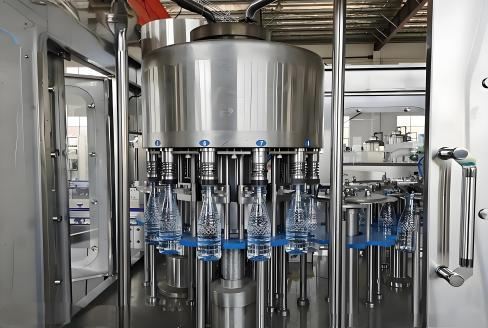

Filling mode

24vdc Weighing Transmitter Signal Conversion Data Transmission Hi Tech Weighing Scale

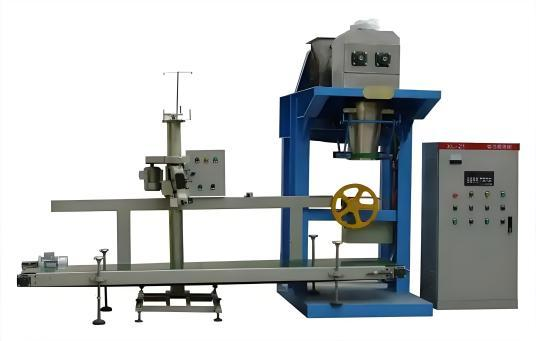

packaging scale

24vdc Weighing Transmitter Signal Conversion Data Transmission Hi Tech Weighing Scale

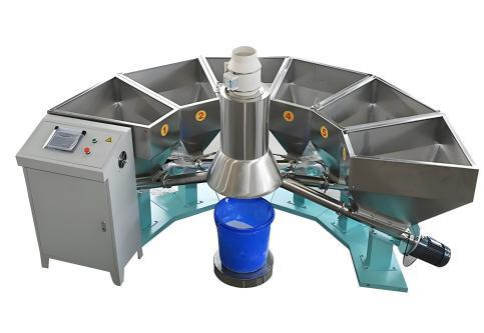

Automatic batching
24vdc Weighing Transmitter Signal Conversion Data Transmission Hi Tech Weighing Scale
