1260°C 1430°C Ceramic Fiber Module Thermal Insulation Kiln Refractory Material
1260°C 1430°C Ceramic Fiber Module Thermal Insulation Kiln Refractory Material
1260°C 1430°C Ceramic Fiber Module Thermal Insulation Kiln Refractory Material
1260°C 1430°C Ceramic Fiber Module Thermal Insulation Kiln Refractory Material
1260°C 1430°C Ceramic Fiber Module Thermal Insulation Kiln Refractory Material
1260°C 1430°C Ceramic Fiber Module Thermal Insulation Kiln Refractory Material
Specifications
Brand Name :
SUNWOOL
Model Number :
1260C 1350C 1430C
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
1000 tons/month
Delivery Time :
15 days
Packaging Details :
Carton Box or Pallet
Refractoriness :
1050-1800C
Size :
Customizable
Package :
bag or carton box or pallet
Shape :
Customizable
Color :
White
Type :
blanket board module paper textile
Description

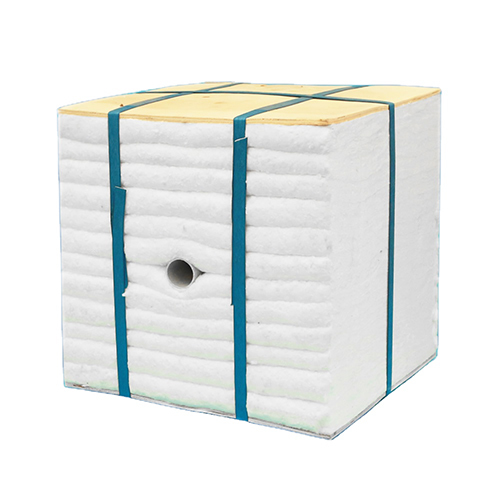

1260C 1430C Standard Ceramic Fiber Module Thermal Insulation for Industry Kiln Furnace Lining


Products Introduction:

Ceramic fiber module is a new refractory lining product designed to simplify and speed up kiln construction and improve the integrity of the lining. The product is white and regular in size. It can be fixed directly on the anchor nails of the steel plate of the industrial kiln housing. It has good effect of fire resistance and heat insulation, improves the integrity of kiln fire resistance and heat insulation, and promotes the progress of kiln masonry technology.


Products Feature

1.Excellent chemical stability
2.Excellent thermal stability
3.Excellent flexibility, the module is in pre-compression state, after the lining masonry
4.The Expansion of modules enable seamless lining,fiber lining can be compensated to improve
5.Insulation performance of Fiber lining, and the overall performance is good
6.Excellent thermal stability and thermal shock resistance
7.Ceramic fiber module can be installed quickly, and anchors set in the wall lining , which can lower the requiement of anchor material

Ceramic fiber module physical and chemical performance index

SUNWOOL Ceramic Fiber Module
Items
Common
Standard
High Pour
High Alumina
Zirconium
AL2O3(%)
44
46
47-49
52-55
39-40
Al2O3+SiO2(%)
96
97
99
99
-
Al2O3+SiO2+ZrO2(%)
-
-
-
-
99
ZrO2(%)
-
-
-
-
15-17
Fe2O3(%)
＜1
＜1
＜1
0.2
0.2
Na2O+K2O(%)
≤0.5
≤0.5
0.2
0.2
0.2
Classification Temperature(℃)
1050
1260
1260
1360
1430
Working Temperature (℃)
<1000
1000
1100
1200
1350
Density(kg/m3)
200±15
220±15
220±15
220±15
300±15
Size
300×300×200mm, 300×300×250mm, 300×300×300mm,with the anchoring piece Other sizes and shapes on request
Ceramic fiber modules are a new type of refractory lining products for simplifying and speeding up the construction of kiln and improving the integrity of furnace lining.

The product is white and regular in size, and can be directly fixed on the anchor nail of the furnace shell of industrial kiln, which has good refractorily and heat insulation effect, improves the integrity of refractorily and heat insulation of kiln.
We adhere to strict quality control standards throughout the production process, ensuring that every batch of ceramic fiber modules meets international quality requirements. With professional technical support and after-sales service, we provide customized insulation solutions according to your specific application needs. Whether you are looking for standard products or custom-designed solutions, we are here to help you optimize your thermal insulation system and achieve better energy efficiency.
