Specifications
Supply Ability :
1000 rolls/week
Model Number :
Ceramic Fiber Rope Tape Cloth
Size :
Customizable
MOQ :
1roll
Delivery Time :
7-10days
Color :
White
Payment Terms :
L/C,D/P,T/T,Western Union
Price :
Negotiable
Certification :
ISO CE

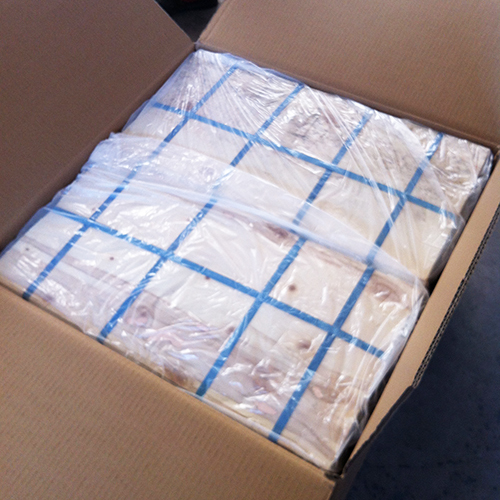

Package :
bag or carton box or pallet
Brand Name :
SUNWOOL
Refractoriness :
1050-1800C
Place of Origin :
China
Shape :
Customizable
Packaging Details :
Woven Bag
Description
Customized 1430C 220kg/m³ Ceramic Fiber Module Anchored Folded High Temperature Resistance For Industrial Furnace Kiln Lining

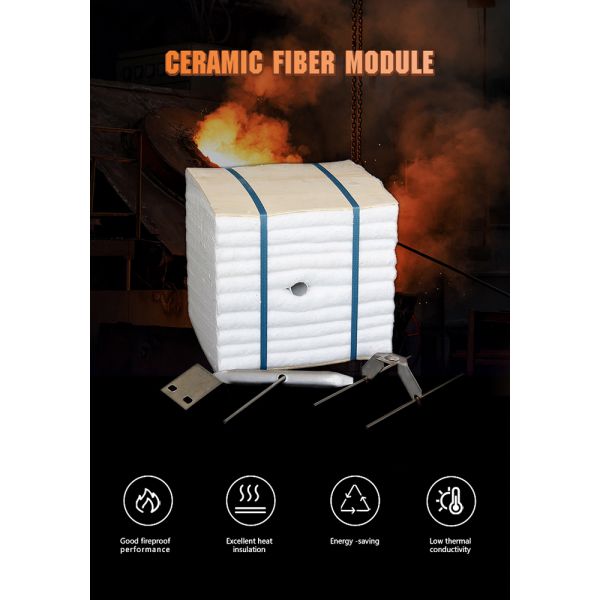

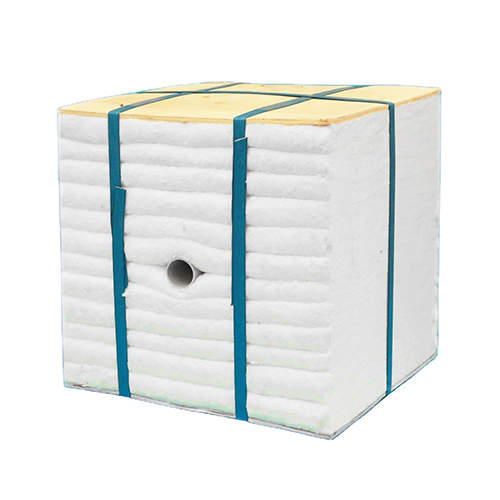

A series of ceramic fiber modules are processed from corresponding ceramic fiber needled blankets on specialized machinery, tailored to the specific structure and dimensions of each module. To ensure a seamless, joint-free lining after installation, precise proportional reduction is maintained during processing to account for varying expansion rates of the ceramic fiber folded modules. These modules are securely fixed using specialized anchors to studs in the steel board of industrial furnaces.

Leadsun ceramic fiber modules represent the pinnacle of high-temperature insulation, engineered to deliver the highest insulating value achievable within ceramic fiber materials. The superior performance originates from their innovative construction. The controlled compression of individual ceramic fiber sheets ensures optimal density, maximizing resistance to heat flow while maintaining structural integrity. This unique design creates a dense, seamless lining with no through-joints, effectively eliminating the direct paths for heat leakage common in traditional brick or blanket systems.

Technical Specifications
Item Standard H Pure Zirconium
AL2O3(%) ≥44 ≥45 ≥34
Sio2(%) ≥52 ≥54 ≥50
Fe2O3+Tio2(%) ≤1.0 ≤0.5 ≤0.5
ZrO2(%) － － ≥15
Classification Temperature (℃) 1260 1260 1430
Working Temperature (℃) 1050 1100 1350
Density (kg/m3) 220 220 220
Linear shrinkage after heating(%) @24 hours ≤2.5 (1000°C) ≤2.5 (1100°C) ≤3.5 (1350°C)
Thermal Conductivity(w/m.k) @400°C 0.09 0.101 0.118

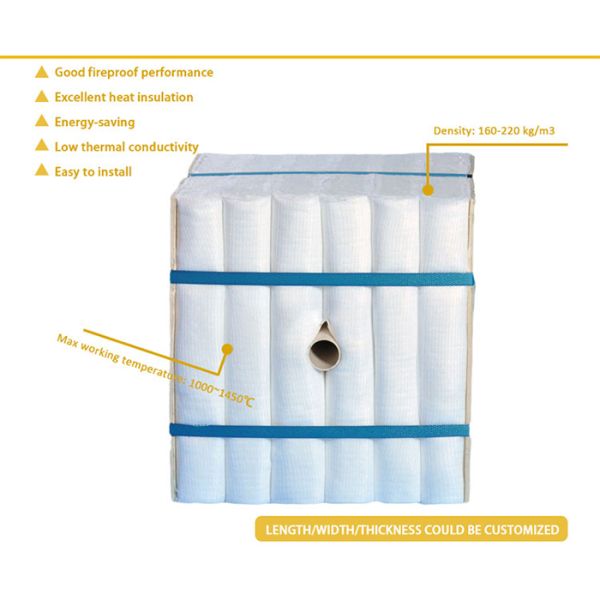

Key Advantages
  • Lightweight lining design reduces structural steel requirements
  • Lower heat storage and reduced fuel costs
  • Multiple anchor system options for versatile installation
  • Fast and easy installation process

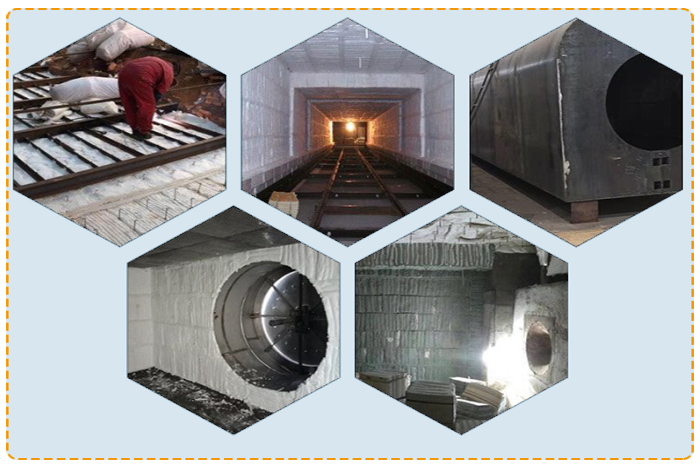

Primary Applications
  • Ceramic Industry: Continuous and batch kilns; Door linings; Low mass kiln cars; Glazing, porcelain furnace linings
  • Steel Industry: Ladle pre-heaters and covers; Heaters and reformer lining; Heat treat furnace
  • Power Generation: Heat recovery steam system; Boiler insulation; Duct lining; Stack linings
  • Refining and Petrochemical: Ethylene furnace roof and walls; Boiler linings; Paralysis furnace lining
Product Gallery
Customized 1430C  220kg/m³ Ceramic Fiber Module Anchored Folded High Temperature Resistance For Industrial Furnace Kiln Lining Customized 1430C  220kg/m³ Ceramic Fiber Module Anchored Folded High Temperature Resistance For Industrial Furnace Kiln Lining Customized 1430C  220kg/m³ Ceramic Fiber Module Anchored Folded High Temperature Resistance For Industrial Furnace Kiln Lining Customized 1430C  220kg/m³ Ceramic Fiber Module Anchored Folded High Temperature Resistance For Industrial Furnace Kiln Lining Customized 1430C  220kg/m³ Ceramic Fiber Module Anchored Folded High Temperature Resistance For Industrial Furnace Kiln Lining Customized 1430C  220kg/m³ Ceramic Fiber Module Anchored Folded High Temperature Resistance For Industrial Furnace Kiln Lining
Frequently Asked Questions
How do I select the right insulation grade for my furnace?
Selection depends on the maximum operating temperature, thermal cycling frequency, and chemical atmosphere. Please provide your design specifications for a tailored recommendation.
Do these materials contain hazardous substances?
We offer a range of bio-soluble (low-bio-persistence) fibers that meet international health and safety standards for handling and usage.
Can you provide customized shapes?
Yes, we provide vacuum-formed custom shapes, blocks, and modules based on your CAD drawings to ensure a perfect fit for your equipment.
