Custom 1260C Ceramic Fiber Blanket for High Temp Thermal Insulation in Industrial Furnace and Kiln Lining
Custom 1260C Ceramic Fiber Blanket for High Temp Thermal Insulation in Industrial Furnace and Kiln Lining
Custom 1260C Ceramic Fiber Blanket for High Temp Thermal Insulation in Industrial Furnace and Kiln Lining
Custom 1260C Ceramic Fiber Blanket for High Temp Thermal Insulation in Industrial Furnace and Kiln Lining
Custom 1260C Ceramic Fiber Blanket for High Temp Thermal Insulation in Industrial Furnace and Kiln Lining
Custom 1260C Ceramic Fiber Blanket for High Temp Thermal Insulation in Industrial Furnace and Kiln Lining
Custom 1260C Ceramic Fiber Blanket for High Temp Thermal Insulation in Industrial Furnace and Kiln Lining
Custom 1260C Ceramic Fiber Blanket for High Temp Thermal Insulation in Industrial Furnace and Kiln Lining
Custom 1260C Ceramic Fiber Blanket for High Temp Thermal Insulation in Industrial Furnace and Kiln Lining
Custom 1260C Ceramic Fiber Blanket for High Temp Thermal Insulation in Industrial Furnace and Kiln Lining
Specifications
Model Number :
1050C; 1260C; 1350C; 1430C
Type :
1050C; 1260C; 1350C; 1430C
MOQ :
1
Delivery Time :
10-15days
Package :
Bag
Packaging Details :
bag
Payment Terms :
L/C,D/P,T/T
Certification :
ISO; CE
Width :
610/1220mm
Brand Name :
SUNWOOL
Color :
White
Place of Origin :
China
Length :
7200mm
Price :
Negotiable
Thickness :
10-50mm
Supply Ability :
100000 pcs/month
Description
Product Overview

Leadsun ceramic fiber blanket is composed of long, flexible, interwoven fibers manufactured by the "blown" and the "spun" process, yielding a strong, lightweight yet durable blanket for applications in a temperature range from 1100°C to 1430°C. Ceramic fiber blanket has the heat resistance of a hard refractory with five times better insulation value.

Key Features
  • Low thermal conductivity
  • Very low heat storage

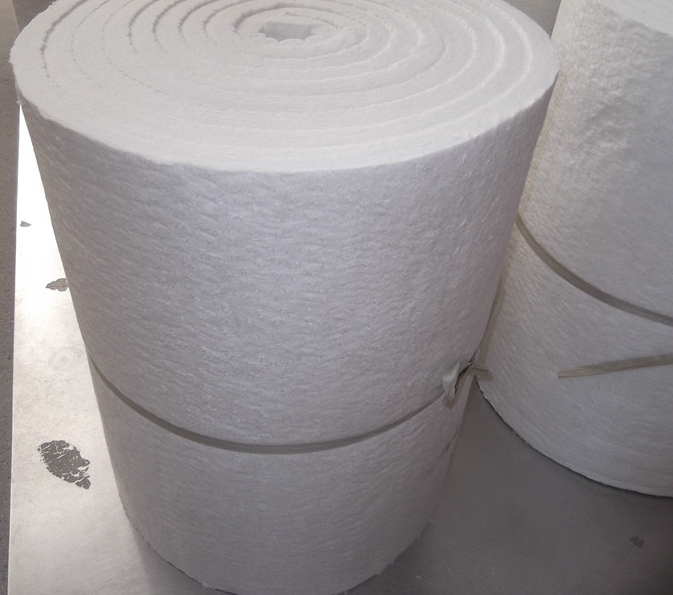

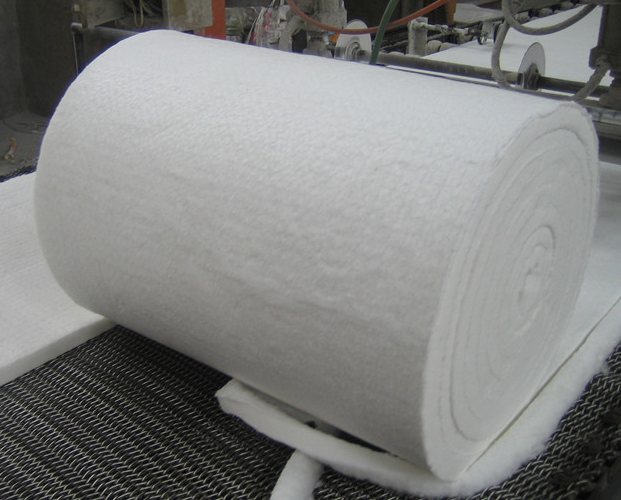

Product Images
Custom 1260C Ceramic Fiber Blanket for High Temp Thermal Insulation in Industrial Furnace and Kiln Lining
Custom 1260C Ceramic Fiber Blanket for High Temp Thermal Insulation in Industrial Furnace and Kiln Lining
Technical Specifications
Description STD Blanket High Pure Blanket High Zirconium Blanket
AL2O3 (%) ≥44 ≥45 ≥34
AL2O3+SiO2 (%) ≥96 ≥99 ≥84
Fe2O3+TiO2 (%) ≤1.0 ≤0.5 ≤0.5
ZrO2 (%) - - ≥15
K2O+Na2O (%) ≤1.0 ≤0.2 ≤0.2
Density (kg/m³) 64 | 96 | 128 96 | 128 128 | 160
Classification Temperature (°C) 1260 1260 1430
Fiber Diameter (µm) 3.5 3.5 3.5
Shot Content (%) ≤15 ≤15 ≤15
Shrinkage after Heating (%) 1000°C * 24h ≤ 2.5 1100°C * 24h ≤ 2.5 1350°C * 24h ≤ 3.5
Thermal Conductivity (W/m·K) at 400°C 0.090 | 0.095 | 0.124 0.114 | 0.101 0.138 | 0.122 | 0.118
Thermal Conductivity (W/m·K) at 500°C 0.119 | 0.123 | 0.145 0.135 | 0.120 0.179 | 0.153 | 0.149
Thermal Conductivity (W/m·K) at 600°C 0.152 | 0.158 | 0.202 0.191 | 0.175 0.233 | 0.184 | 0.172
Tensile Strength (MPa) 0.040 | 0.05 | 0.05 0.060 | 0.075 0.050 | 0.060 | 0.075

Density and thermal conductivity values are listed in order corresponding to the density grades shown for each blanket type. Custom specifications are available upon request.
