Specifications
MOQ :
5pcs
Delivery Time :
7-10days
Shape :
Customizable
Payment Terms :
L/C,D/P,T/T,Western Union
Type :
blanket board module paper textile
Model Number :
1260C 1430C 1600C
Density :
300 kg/m³
Price :
Negotiable
Color :
White
Certification :
ISO CE SGS
Refractoriness :
1050-1800C
Place of Origin :
CHINA
Package :
bag or carton box or pallet
Supply Ability :
100tons/week
Brand Name :
Leadsun
Size :
Customizable
Packaging Details :
carton
Description
1260C High Temperature Ceramic Fiber Board
Product Overview

Leadsun ceramic fiber board is a high-quality lightweight refractory material made from high-purity alumina silicate fibers, capable of withstanding continuous working temperatures up to 1430°C (2600°F).

Manufactured through advanced vacuum molding technology, this ceramic fiber board features a uniform and sturdy structure with excellent mechanical strength. Compared to traditional ceramic fiber blankets, it can better withstand high-speed airflows, making it an ideal inner lining solution for high-temperature industrial equipment such as furnaces, boilers, pipes, and chimneys.

The material's extremely low thermal conductivity and negligible thermal capacity significantly reduce heat loss and enhance energy efficiency. It accelerates heating and cooling cycles, shortens processing time, and allows for quicker equipment access for inspection and maintenance after operation.

Technical Specifications
Item Common Standard H Pure H Alumina Zirconium
AL2O3(%) 44 46 47-50 52-55 39-40
Fe2O3(%) 1.2 1 0.2 0.2 0.2
ZrO2(%) － － － － 15-19
Classification Temperature (℃) 1100 1260 1260 1360 1430
Working Temperature (℃) 1000 1050 1100 1200 1350
Density (kg/m3) 260/320 260/320 260/320 260/320 260/320
Permanent linear shrinkage(%)(after 24 hours, density 128kg/m3) -4 (1000°C) -3 (1000°C) -3 (1100°C) -3 (1250°C) -3 (1350°C)
Tensile strength (Mpa) density 128kg/m3 0.08-0.12 0.08-0.12 0.08-0.12 0.08-0.12 0.08-0.12
Key Advantages
  • Light weight - replaces heavy back-up insulation, less steel required
  • Very low heat storage - faster heat-up and cool-down reducing cycle times
  • Easy to cut, handle and install
  • Resists most chemical attacks
  • Resists penetration by molten aluminum and other non-ferrous metals
  • Low sound transmission
  • Resistant to hot gas erosion
  • Low thermal conductivity - saves fuel
Primary Applications
  • Back-up insulation for brick and monolithic refractories
  • Transfer of molten aluminum and other non-ferrous metals
  • Combustion chamber liners, boilers and heaters
  • Hot face layer for high velocity or abrasive furnace atmosphere
  • Refractory lining for industrial furnaces in walls, roofs, doors, stacks, etc.

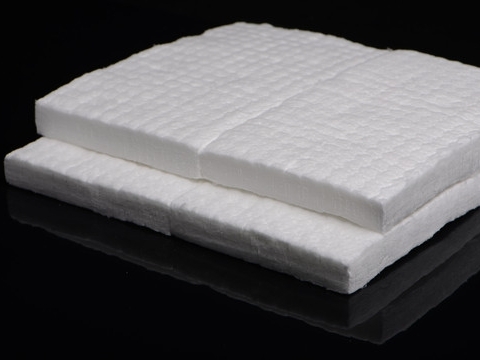

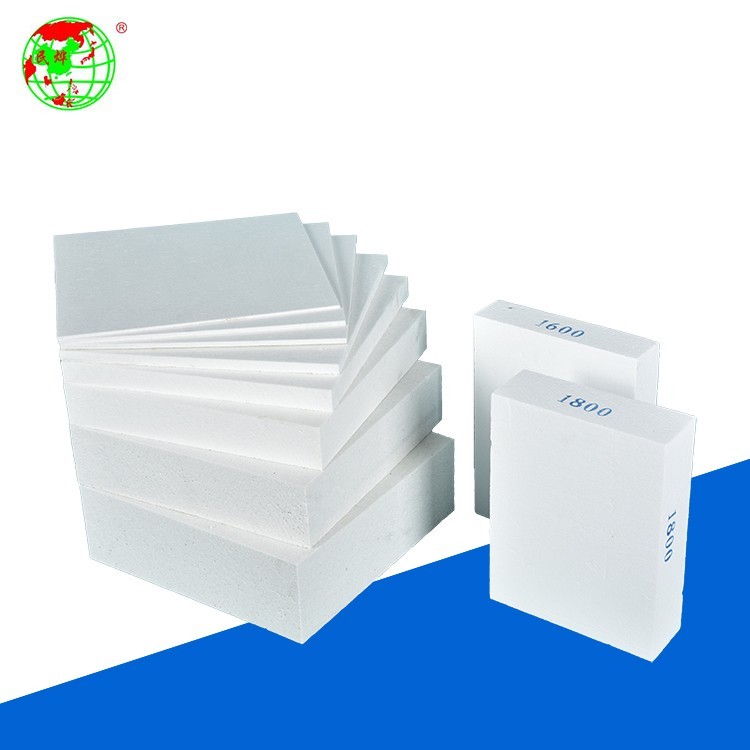

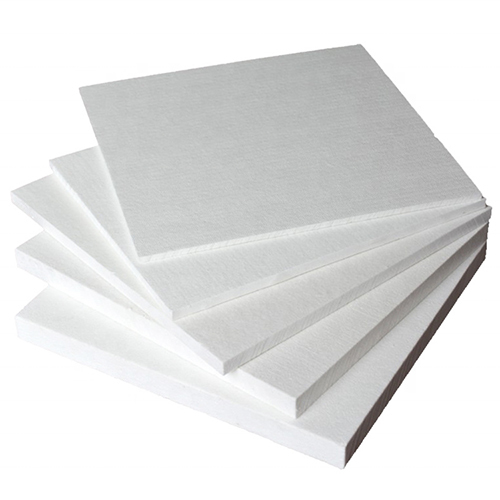

Product Images
1260C High Temperature And High Quality Ceramic Fiber Board For Thermal Insulation 1200-1800C Fire Prevention Application 1260C High Temperature And High Quality Ceramic Fiber Board For Thermal Insulation 1200-1800C Fire Prevention Application 1260C High Temperature And High Quality Ceramic Fiber Board For Thermal Insulation 1200-1800C Fire Prevention Application 1260C High Temperature And High Quality Ceramic Fiber Board For Thermal Insulation 1200-1800C Fire Prevention Application 1260C High Temperature And High Quality Ceramic Fiber Board For Thermal Insulation 1200-1800C Fire Prevention Application 1260C High Temperature And High Quality Ceramic Fiber Board For Thermal Insulation 1200-1800C Fire Prevention Application 1260C High Temperature And High Quality Ceramic Fiber Board For Thermal Insulation 1200-1800C Fire Prevention Application 1260C High Temperature And High Quality Ceramic Fiber Board For Thermal Insulation 1200-1800C Fire Prevention Application 1260C High Temperature And High Quality Ceramic Fiber Board For Thermal Insulation 1200-1800C Fire Prevention Application
Frequently Asked Questions
How do I select the right insulation grade for my furnace?

Selection depends on the maximum operating temperature, thermal cycling frequency, and chemical atmosphere. Please provide your design specifications for a tailored recommendation.

Do these materials contain hazardous substances?

We offer a range of bio-soluble (low-bio-persistence) fibers that meet international health and safety standards for handling and usage.

Can you provide customized shapes?

Yes, we provide vacuum-formed custom shapes, blocks, and modules based on your CAD drawings to ensure a perfect fit for your equipment.
