1260C High Temperature Resistant Ceramic Fiber Board with Low Thermal Conductivity and CNC-Calibrated Precision
1260C High Temperature Resistant Ceramic Fiber Board with Low Thermal Conductivity and CNC-Calibrated Precision
1260C High Temperature Resistant Ceramic Fiber Board with Low Thermal Conductivity and CNC-Calibrated Precision
1260C High Temperature Resistant Ceramic Fiber Board with Low Thermal Conductivity and CNC-Calibrated Precision
1260C High Temperature Resistant Ceramic Fiber Board with Low Thermal Conductivity and CNC-Calibrated Precision
1260C High Temperature Resistant Ceramic Fiber Board with Low Thermal Conductivity and CNC-Calibrated Precision
Specifications
Brand Name :
Leadsun
Certification :
ISO CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union
Packaging Details :
carton
Delivery Time :
5-7days
Bulk Density :
220(kg/m³)
Chemical Content :
Al2O3+SiO2
Water Content :
≤1%
Width :
600/900/1000mm
Environmentalsafety :
Non-toxic, asbestos-free
Waterabsorption :
< 10%
Application :
Thermal insulation, fireproofing, refractory linings
Description
Ceramic Fiber 1260C Ceramic Fiber Board
Product Overview

Refractory ceramic fiber board is manufactured using fully automated vacuum forming equipment, combined with scientific slurry control and a low-shrinkage formula. These ensure the board maintains excellent flatness and mechanical support even in extreme temperatures.

Through secondary pressing and directional drying, fiber bonding is further reinforced, resulting in superior thermal shock resistance and anti-pulverization performance.

Each board is CNC-calibrated before cutting, keeping dimensional error within +0.5mm. This significantly improves installation precision, reduces labor intensity, and prevents heat leakage caused by large panel gaps.

Applications

Refractory ceramic fiber board can be directly used as internal lining in the walls, doors, and roof sections of heat treatment furnaces. With its high strength and low thermal conductivity, it supports heavy thermal loads while effectively preventing thermal bridges and optimizing heat retention.

Even under continuous operation at 1100°C–1260°C, the board retains its form, resists shrinkage, and avoids spalling. This significantly extends furnace life, reduces maintenance frequency, and lowers operational energy costs.

Technical Specifications
Item Common Standard H Pure H Alumina Zirconium
AL2O3(%) 44 46 47-50 52-55 39-40
Fe2O3(%) 1.2 1.0 0.2 0.2 0.2
ZrO2(%) – – – – 15-19
Classification Temperature (°C) 1100 1260 1260 1360 1430
Working Temperature (°C) 1000 1050 1100 1200 1350
Density (kg/m³) 260/320 260/320 260/320 260/320 260/320
Permanent Linear Shrinkage (%)
After 24 hours, density 128kg/m³		 -4 (1000°C) -3 (1000°C) -3 (1100°C) -3 (1250°C) -3 (1350°C)
Tensile Strength (MPa)
Density 128kg/m³		 0.08-0.12 0.08-0.12 0.08-0.12 0.08-0.12 0.08-0.12

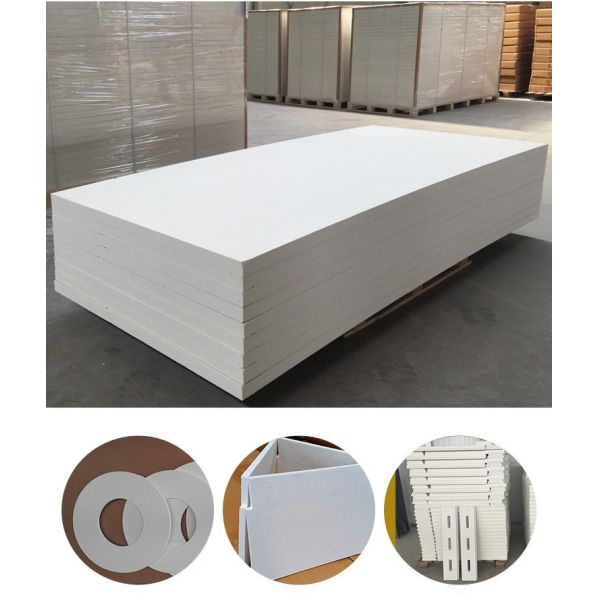

Product Images
1260C High Temperature Resistant Ceramic Fiber Board with Low Thermal Conductivity and CNC-Calibrated Precision 1260C High Temperature Resistant Ceramic Fiber Board with Low Thermal Conductivity and CNC-Calibrated Precision 1260C High Temperature Resistant Ceramic Fiber Board with Low Thermal Conductivity and CNC-Calibrated Precision
