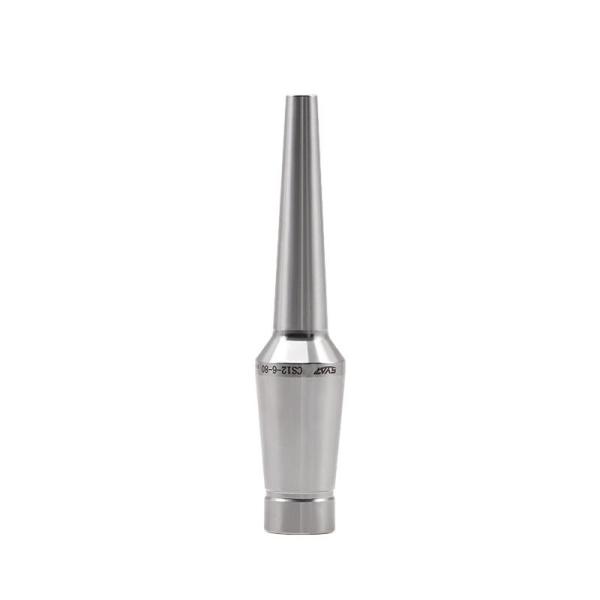

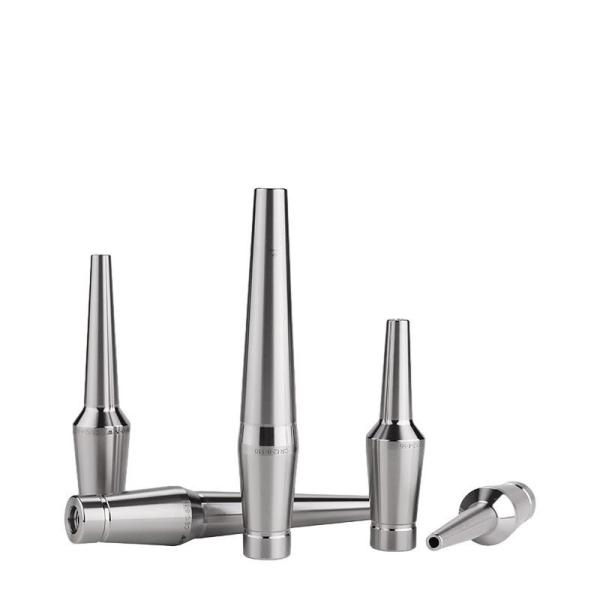

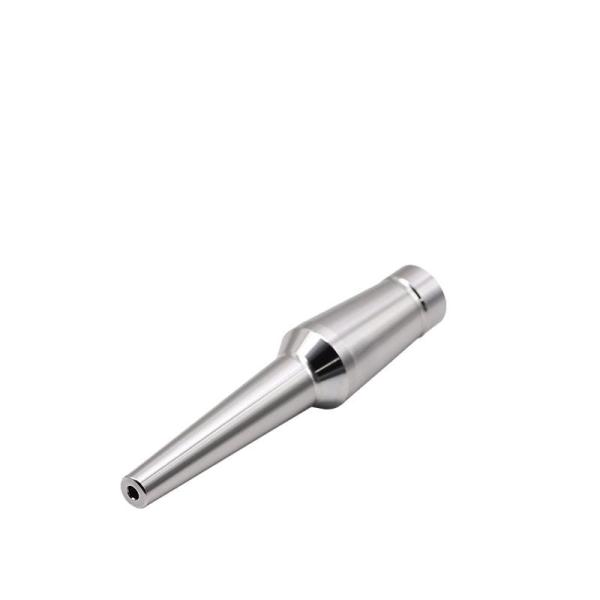

Slim ECR12 Shrink Fit Chucks Standard Type For Mills And Drills
Slim ECR12 Shrink Fit Chucks Standard Type For Mills And Drills
Slim ECR12 Shrink Fit Chucks Standard Type For Mills And Drills
Slim ECR12 Shrink Fit Chucks Standard Type For Mills And Drills
Slim ECR12 Shrink Fit Chucks Standard Type For Mills And Drills
Slim ECR12 Shrink Fit Chucks Standard Type For Mills And Drills
Slim ECR12 Shrink Fit Chucks Standard Type For Mills And Drills
Slim ECR12 Shrink Fit Chucks Standard Type For Mills And Drills
Slim ECR12 Shrink Fit Chucks Standard Type For Mills And Drills
Slim ECR12 Shrink Fit Chucks Standard Type For Mills And Drills
Specifications
Run Out :
3 μm
Material :
Steel
Product Name :
Heat Shrink Chuck
Application :
For Clamping Tools
Balance quality :
G 2.5 At 25,000 Rpm
Shank tolerance :
H6
Place of Origin :
Shenzhen.China
Brand Name :
Inrover
Certification :
ISO9001
MOQ :
5pcs
Price :
Please contact supplier
Packaging Details :
plastic box+cartons
Delivery Time :
7-10 days
Payment Terms :
T/T
Supply Ability :
30000/Month
Description

Slim ECR12 Hot Fitting Collet Standard Type Hit Shink Chuck Extension For Mills And Drills

Production Description:

The Shrink Chuck Extension Slim is a tool used in machining processes.

It is designed to extend the reach of a shrink fit chuck, allowing for machining in hard-to-reach areas

Feature:

1. Slim design reduces interference contours of the holder

2. High Precision

3. Strong shock resistance

4. Marerial: ally steel

5. Heat treatment hardness: HRC50-52

6. Runout accuracy: 0.003mm

Specifications:

Model D C t L M C1 H
ECR12-3-35 3 7.5 2.25 35 22 9.9 10
ECR12-3-55 55 42 12
ECR12-3-80 80 67 14.6
ECR12-3-110 110 97 19.2
ECR12-4-35 4 10 3 35 22 12.4 12
ECR12-4-55 55 42 14.5
ECR12-4-80 80 67 17.1
ECR12-4-110 110 97 20.2
ECR12-4-130 130 117 22.3
ECR12-6-35 6 12 3 35 22 14.4 18
ECR12-6-55 55 42 16.5
ECR12-6-80 80 67 19.1
ECR12-6-110 110 97 22.2
ECR12-6-130 130 117 24.3
ECR12-8-35 8 14 3 35 22 16.4 24
ECR12-8-55 55 42 18.5
ECR12-8-80 80 67 21.1
ECR12-8-110 110 97 24.2
ECR12-8-130 130 / /
ECR12-10-35 10 16 3 35 22 18.4 30
ECR12-10-55 55 42 20.5
ECR12-10-80 80 67 23.1
ECR12-10-110 110 / /
ECR12-10-130 130 / /
ECR12-12-35 12 20 4 35 22 22.4 30
ECR12-12-55 55 42 24.5
ECR12-12-80 80 / /
ECR12-12-110 110 / /
ECR12-12-130 130 / /
