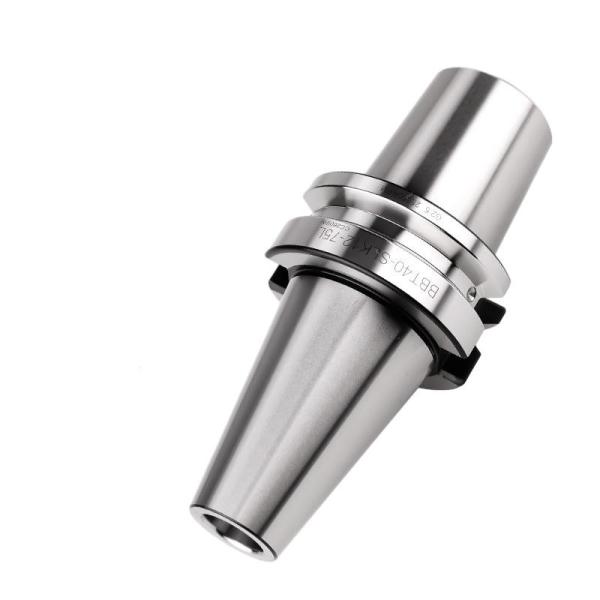

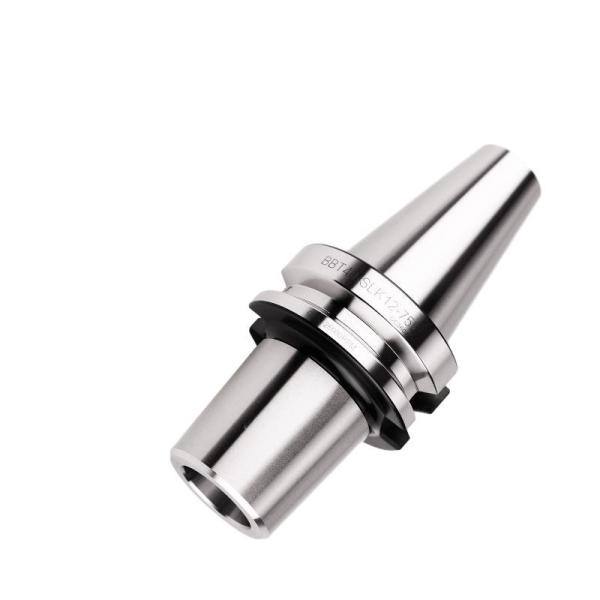

HSK32E 40E Heat Shrink Chuck , BT40 BT30 Shrink Fit Steel Material
HSK32E 40E Heat Shrink Chuck , BT40 BT30 Shrink Fit Steel Material
HSK32E 40E Heat Shrink Chuck , BT40 BT30 Shrink Fit Steel Material
HSK32E 40E Heat Shrink Chuck , BT40 BT30 Shrink Fit Steel Material
HSK32E 40E Heat Shrink Chuck , BT40 BT30 Shrink Fit Steel Material
HSK32E 40E Heat Shrink Chuck , BT40 BT30 Shrink Fit Steel Material
HSK32E 40E Heat Shrink Chuck , BT40 BT30 Shrink Fit Steel Material
HSK32E 40E Heat Shrink Chuck , BT40 BT30 Shrink Fit Steel Material
Specifications
Material :
Steel
Application :
For Clamping Tools
Run Out :
3 μm
Product Name :
Heat Shrink Chuck
Balance quality :
G 2.5 At 25,000 Rpm
Shank tolerance :
H6
Place of Origin :
Shenzhen.China
Brand Name :
Inrover
Certification :
ISO9001
MOQ :
5pcs
Price :
Please contact supplier
Packaging Details :
plastic box+cartons
Delivery Time :
7-10 days
Payment Terms :
T/T
Supply Ability :
30000/Month
Description

HSK32E/40E/50A/63A Hot Fitting Collet Type 12 Cost-Effective Shrink-Fit Chuck BT30 BT40

Technical Parameters:

Product Name Hot shink fit chuck
Material Steel
Concentricity < 0.003 mm
G Value G 2.5 at 25,000 rpm
Hardness HRC 55+2
Shank tolerance H6
Surface roughness ≤0.005

Application:

For clamping milling tools and drill bits with straight shank, tolerance h6. Suitable for shrinking on

inductive contact and hot air devices.

Specifications:

BT30-EL/BT30-CV

BT40-EL/BT40-CV

BT50-EL/BT50-CV

A40-EL/A50-EL/A63-EL/A63-CV/A100-EL-A100-CV

E32-EL/E32-CV

E40-EL/E40-CV

E50-EL/E50-CV

E63-EL/E63-CV

Features:

1. High rigidity

2. High clamping force

3. High positioning and repeat accuracy

4. Slim design, narrow interfering contour

5. Can adapt to high speed rotation

6. The uniform clamping force makes the runout accracy of the tool very high

7. Suitable for finishing and roughing

8. Compact structure, small size suitable for deep grooving machining

9. Anti-vibration

Differences between Collet Chuck and Shink Fit Chuck
