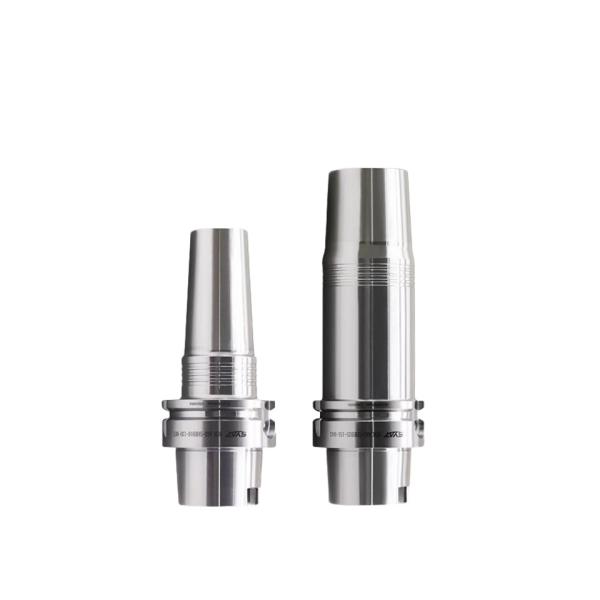

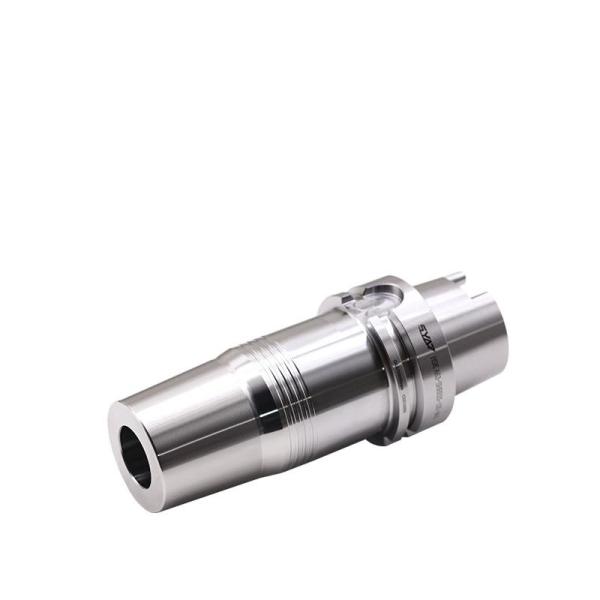

Stainless Steel Heat Shrink Chuck , HSK A63 Shrink Fit Collet Anti Vibration
Stainless Steel Heat Shrink Chuck , HSK A63 Shrink Fit Collet Anti Vibration
Stainless Steel Heat Shrink Chuck , HSK A63 Shrink Fit Collet Anti Vibration
Stainless Steel Heat Shrink Chuck , HSK A63 Shrink Fit Collet Anti Vibration
Stainless Steel Heat Shrink Chuck , HSK A63 Shrink Fit Collet Anti Vibration
Stainless Steel Heat Shrink Chuck , HSK A63 Shrink Fit Collet Anti Vibration
Stainless Steel Heat Shrink Chuck , HSK A63 Shrink Fit Collet Anti Vibration
Stainless Steel Heat Shrink Chuck , HSK A63 Shrink Fit Collet Anti Vibration
Specifications
Model Number :
HSK A63 SHRB
Material :
Stainless Steel
Application :
For Clamping Tools
Run Out :
3 μm
Product Name :
Heat Shrink Chuck
Balance quality :
G 2.5 At 25,000 Rpm
Shank tolerance :
H6
Place of Origin :
Shenzhen.China
Brand Name :
Inrover
Certification :
ISO9001
MOQ :
5pcs
Price :
Please contact supplier
Packaging Details :
plastic box+cartons
Delivery Time :
7-10 days
Payment Terms :
T/T
Supply Ability :
30000/Month
Description

High Precision Stainless Steel HSK A63 Large Diameter Shink Fit Collet Toolholder Anti-Vibration Hot Fitting Chuck

Application:

For clamping milling tools and drill bits with straight shank, tolerance h6. Suitable for shrinking

on inductive contact and hot air devices.

Technical Parameters:

Product Name Hot shink fit chuck
Material Stainless Steel
Concentricity < 0.003 mm
G Value G 2.5 at 25,000 rpm
Hardness 52+2 HRC
Shank tolerance H6

Features:

1. High rigidity

2. High clamping force

3. High positioning and repeat accuracy

4. Slim design, narrow interfering contour

5. Can adapt to high speed rotation

6. The uniform clamping force makes the runout accracy of the tool very high

7. Suitable for finishing and roughing

8. Compact structure, small size suitable for deep grooving machining

9. Anti-vibration

Specifications:

BT30-EL/BT30-CV

BT40-EL/BT40-CV

BT50-EL/BT50-CV

A40-EL/A50-EL/A63-EL/A63-CV/A100-EL-A100-CV

E32-EL/E32-CV

E40-EL/E40-CV

E50-EL/E50-CV

E63-EL/E63-CV

Differences between Collet Chuck and Shink Fit Chuck
