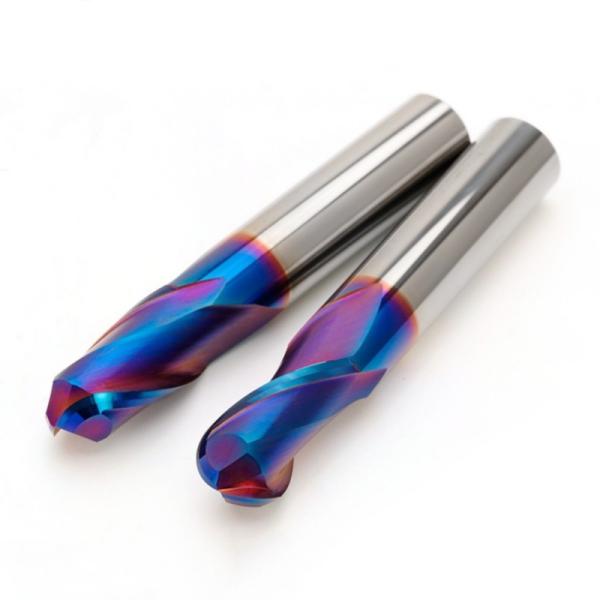

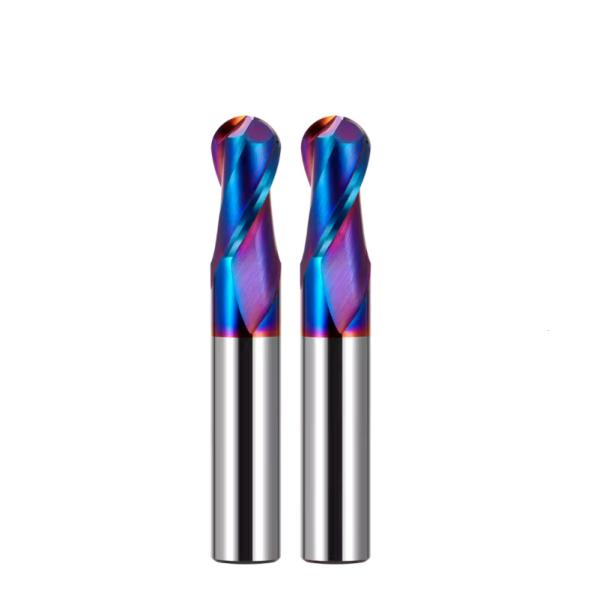

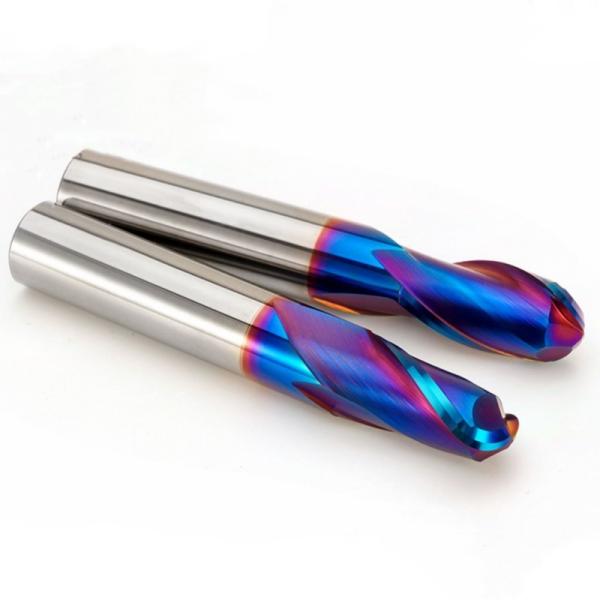

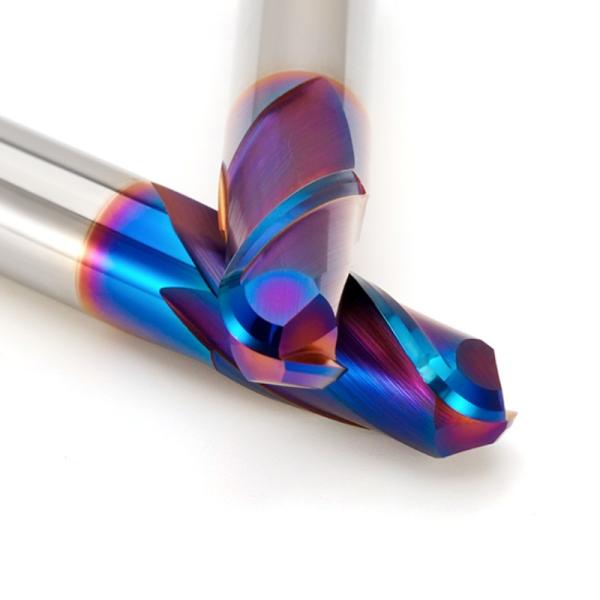

HRC65 Degree Carbide End Mill , Blue Nano Coating Ball Nose CNC Milling Cutter
HRC65 Degree Carbide End Mill , Blue Nano Coating Ball Nose CNC Milling Cutter
HRC65 Degree Carbide End Mill , Blue Nano Coating Ball Nose CNC Milling Cutter
HRC65 Degree Carbide End Mill , Blue Nano Coating Ball Nose CNC Milling Cutter
HRC65 Degree Carbide End Mill , Blue Nano Coating Ball Nose CNC Milling Cutter
HRC65 Degree Carbide End Mill , Blue Nano Coating Ball Nose CNC Milling Cutter
HRC65 Degree Carbide End Mill , Blue Nano Coating Ball Nose CNC Milling Cutter
HRC65 Degree Carbide End Mill , Blue Nano Coating Ball Nose CNC Milling Cutter
HRC65 Degree Carbide End Mill , Blue Nano Coating Ball Nose CNC Milling Cutter
HRC65 Degree Carbide End Mill , Blue Nano Coating Ball Nose CNC Milling Cutter
Specifications
Overall Length :
50mm-100mm
Helix Angle :
35°
Flute Length :
2mm-40mm
Number of Flutes :
2
Cutting Diameter :
1.0mm-20.0mm
Coating :
Nano Coating
Type :
Ball Nose End Mill
Shank Diameter :
D4-D20
Place of Origin :
Shenzhen.China
Brand Name :
Inrover
Certification :
ISO9001
MOQ :
5pcs
Price :
Please contact supplier
Packaging Details :
plastic box+cartons
Delivery Time :
7-10 days
Payment Terms :
T/T
Supply Ability :
30000/Month
Description

CNC Milling Cutter HRC65° Blue Nano Coating Ball Nose End Mill For Titianum Alloy

Product Description:

HRC65 Degree Carbide End Mill , Blue Nano Coating Ball Nose CNC Milling Cutter
Cutting Dia(d)

Cutting
Length(L1)

R

Shank
Dia(D)

Full
Length(L)

Flute(F)
1.02R0.54502
1.52R0.754502
2.04R1.04502
3.06R1.54502
4.08R2.04502
5.010R2.5 6502
6.012R3.06502
8.016R4.08602
10.020R5.010752
12.024R6.012752
14.028R7.014802
16.032R8.0161002
18.036R9.0181002
20.040R10.0201002

Technical Parameters:

ParameterDetails
CoatingNano Coating
Shank DiameterD4-D20
Helix Angle35°
Overall Length50mm-100mm
Cutting Diameter1.0mm-20.0mm
Number of Flutes2
MaterialSolid Carbide
Flute Length2mm-40mm
TypeBall Nose End Mill
Processing Materialstainless steel, cast iron, iron, alloy steel, mold steel, titianum alloy

Customization:

1. Provide drawing design to us.
2. If no drawing, samples are also okay.
3. Our technical team will make drawing design for customers to approval.
4. Customer approve the drawing design, we start production.

Support and Services:

Carbide End Mill provides technical support and services, including:

  • 24/7 customer service
  • Comprehensive product manuals
  • Online product troubleshooting
  • In-person product installation and maintenance
  • Training on product usage
  • Replacement parts
