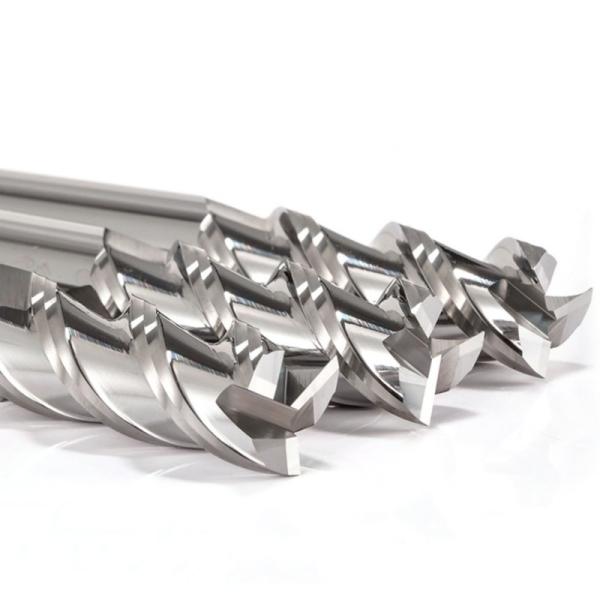

3 Flutes Flat End Mill Cutter Mirror Polishing Uncoated For Aluminum Machining
3 Flutes Flat End Mill Cutter Mirror Polishing Uncoated For Aluminum Machining
3 Flutes Flat End Mill Cutter Mirror Polishing Uncoated For Aluminum Machining
3 Flutes Flat End Mill Cutter Mirror Polishing Uncoated For Aluminum Machining
3 Flutes Flat End Mill Cutter Mirror Polishing Uncoated For Aluminum Machining
3 Flutes Flat End Mill Cutter Mirror Polishing Uncoated For Aluminum Machining
3 Flutes Flat End Mill Cutter Mirror Polishing Uncoated For Aluminum Machining
3 Flutes Flat End Mill Cutter Mirror Polishing Uncoated For Aluminum Machining
3 Flutes Flat End Mill Cutter Mirror Polishing Uncoated For Aluminum Machining
3 Flutes Flat End Mill Cutter Mirror Polishing Uncoated For Aluminum Machining
Specifications
Overall Length :
50mm-100mm
Helix Angle :
30°
Flute Length :
3mm-45mm
Number of Flutes :
3
Cutting Diameter :
1.0mm-20.0mm
Coating :
Nano Coating
Type :
Square End Mill
Shank Diameter :
D4-D20
Place of Origin :
Shenzhen.China
Brand Name :
Inrover
Certification :
ISO9001
MOQ :
5pcs
Price :
Please contact supplier
Packaging Details :
plastic box+cartons
Delivery Time :
7-10 days
Payment Terms :
T/T
Supply Ability :
30000/Month
Description

3 Flutes Mirror Polishing Milling Tool Flat End Mill Uncoated For Aluminum Machining

Product Description:

Carbide End Mill for Aluminum
3 Flutes Flat End Mill Cutter Mirror Polishing Uncoated For Aluminum Machining
Cutting Dia(d) Cutting Length(L1) Shank Dia(D) Full Length(L) Flute(F)
1.0 3 4 50 3
1.5 4 4 50 3
2.0 6 4 50 3
2.5 8 4 50 3
3.0 8 4 50 3
4.0 11 4 50 3
5.0 13 6 50 3
6.0 16 6 50 3
8.0 20 8 60 3
10.0 25 10 75 3
12.0 30 12 75 3
14.0 35 14 80 3
16.0 36 16 100 3
18.0 38 18 100 3
20.0 45 20 100 3

Features:

1. High Polish Surface, High Feeding Rate for Aluminum

2. Dual blades shape design, remove aluminum chips faster than normal type.

3. Unique polished process leads the work piece with no lateral marks milling result.

4. Designed for all aluminum work piece with better surface demand.

Technical Parameters:

Parameter Details
Coating Nano Coating
Shank Diameter D4-D20
Helix Angle 30°
Overall Length 50mm-100mm
Cutting Diameter 1.0mm-20.0mm
Number of Flutes 4
Material Solid Carbide
Flute Length 3mm-45mm
Type Square End Mill
Processing Material aluminum alloy,copper,plastic,zinc alloy

Customization:

1. Provide drawing design to us.
2. If no drawing, samples are also okay.
3. Our technical team will make drawing design for customers to approval.
4. Customer approve the drawing design, we start production.

Support and Services:

Carbide End Mill provides technical support and services, including:

  • 24/7 customer service
  • Comprehensive product manuals
  • Online product troubleshooting
  • In-person product installation and maintenance
  • Training on product usage
  • Replacement parts
