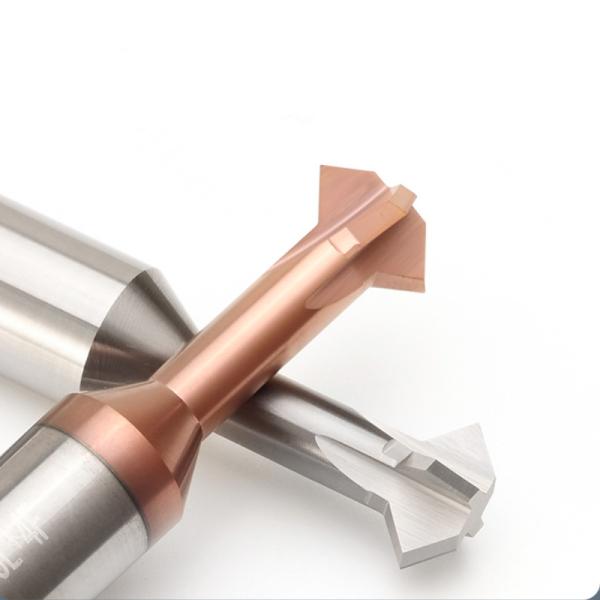

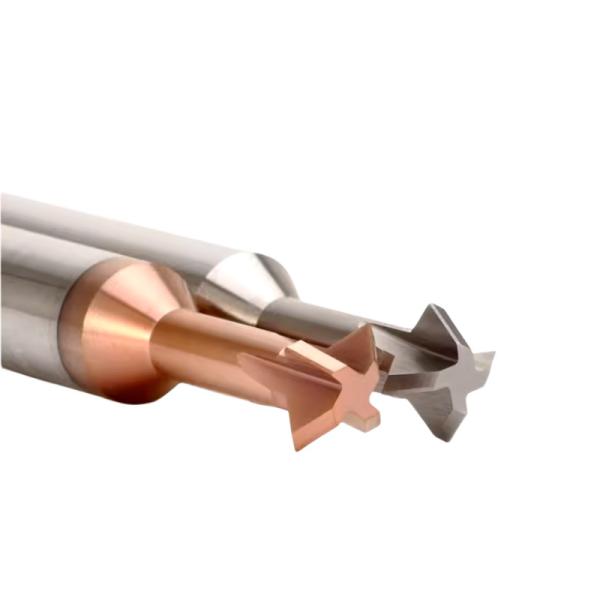

90 Degree Carbide End Mill , Double Angular Deburring Chamfering Milling Cutter
90 Degree Carbide End Mill , Double Angular Deburring Chamfering Milling Cutter
90 Degree Carbide End Mill , Double Angular Deburring Chamfering Milling Cutter
90 Degree Carbide End Mill , Double Angular Deburring Chamfering Milling Cutter
90 Degree Carbide End Mill , Double Angular Deburring Chamfering Milling Cutter
90 Degree Carbide End Mill , Double Angular Deburring Chamfering Milling Cutter
90 Degree Carbide End Mill , Double Angular Deburring Chamfering Milling Cutter
90 Degree Carbide End Mill , Double Angular Deburring Chamfering Milling Cutter
Specifications
Overall Length :
50mm-60mm
Radius :
R0.5-R14
Coating :
Nano Coating/No coating
Type :
Chamfer End Mill
Shank Diameter :
D3-D14
Place of Origin :
Shenzhen.China
Brand Name :
Inrover
Certification :
ISO9001
MOQ :
5pcs
Price :
Please contact supplier
Packaging Details :
plastic box+cartons
Delivery Time :
7-10 days
Payment Terms :
T/T
Supply Ability :
30000/Month
Description

Single 45°30° Solid Carbide Double Angular Chamfering Milling Cutter 90 Degree Front Back Deburring End Mill

Product Description:

90 Degree Carbide End Mill , Double Angular Deburring Chamfering Milling Cutter
Radius

Diameter

Shank Diameter

Full Length
1.96 10 4 50
2.35 8 4 50
2.4 8 4 50
3.0 15 4 50
3.15 10 4 50
3.9 12 4 50
4.0 16 4 50
4.5 20 5 50
4.8 15 6 50
5.0 20 6 50
6.0 25 6 50
8.0 28 8 60
9.4 30 10 75
10 35 10 75
12 50 12 100
14 48 14 100
16 55 16 100

Technical Parameters:

Parameter Details
Coating Nano Coating/no coating
Shank Diameter D4-D16
Overall Length 50mm-100mm
Cutting Diameter 1.96mm-16.0mm
Angle 60°/ 90°
Material Solid Carbide
Type Chamfering End Mill
Processing Material 45# steel, mold steel, carbon steel, alloy steel,cast iron, 40.42 chrome molybdenum

Customization:

1. Provide drawing design to us.
2. If no drawing, samples are also okay.
3. Our technical team will make drawing design for customers to approval.
4. Customer approve the drawing design, we start production.

Features

1. Full grinding helix angle, smooth cutting
2. Passivating treatment on surface to increase protective layer
  • Training on product usage
  • Replacement parts
