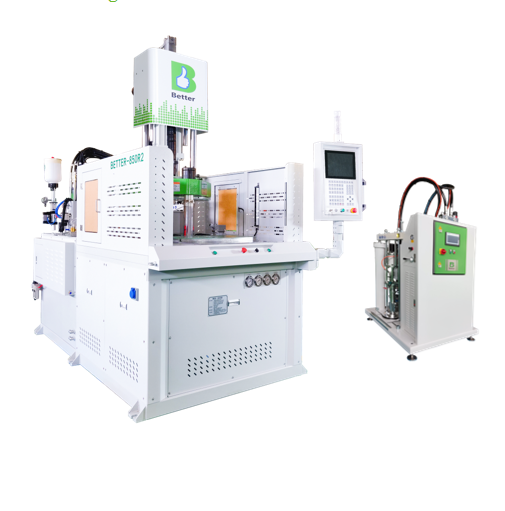

200ton LSR Injection Molding Machine with PLC Control
200ton LSR Injection Molding Machine with PLC Control
200ton LSR Injection Molding Machine with PLC Control
200ton LSR Injection Molding Machine with PLC Control
200ton LSR Injection Molding Machine with PLC Control
200ton LSR Injection Molding Machine with PLC Control
Specifications
Brand Name :
BETTER
Model Number :
BETTER-2000R2
Certification :
CE、ISO
Place of Origin :
GuangZhou，China
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
T/T,L/C
Supply Ability :
10 sets per month
Delivery Time :
45 days
Packaging Details :
Plastic packaging
Gross Weight :
5.5-10ton
Dimensions :
3320 x 2630 x 3520 mm
After Warranty Service :
Video technical support
Control System :
PLC control
Color :
Gray & Green
Country Of Origin :
China
Work Principle :
Plunger pump
Motor Source :
Hydraulic
Mix Mode :
Static Mixing/Static+Dynamic/Dynamic
Bucket Capacity :
20L/200L
Shot volume per 60s :
0 - 1500g
Description
200ton LSR Injection Molding Machine with PLC Control
Product Specifications
Attribute Value
Gross Weight 5.5-10ton
Dimensions 3320 x 2630 x 3520 mm
After Warranty Service Video technical support
Control System PLC control
Color Gray & Green
Country Of Origin China
Technical Specifications
Clamping force 200tons
Size Φ1600
Max mold size 600*600(750*500)mm
Min mold height 310+50mm
Mold stroke 350mm
Max daylight 600+50mm
Ejector force 4.6tons
Thimble diameter Φ35
Ejector distance(product) 140(110)mm
Max hydraulic pressure 140kg/cm2
Cooling water 1500-1800liters/hr
Electrothermal 4kw
Motor 26kw
Dimension (L*W*H) 3.32*2.63*3.52/4.47
Weight 12tons
Injection Unit Features
  • Square hydraulic motor with position accuracy ≤0.1MM
  • Non-return valve between motor and tube
  • Bidirectional axial positioning to avoid screw wiggle (swing accuracy ≤0.05MM)
  • Barrel with LSR-specific spline design and pneumatic sealant shut-off nozzle
  • One-piece casting injection cylinder (5~10mm larger diameter than standard)
  • Specially designed LSR oil circuit (storage position accuracy ≤0.05MM)
  • Aluminum jacketed oil seal with bidirectional buffering for smooth operation
  • Dorsal bracket ring protects O-ring
  • Internal installed pneumatic sealing needle nozzle with electronic measuring ruler (Gefran-Italy)
  • Optional Rexroth full closed loop servo valve for real-time monitoring and automatic feedback correction
Key Advantages
  • Mould clamping device: Finite element analysis casting ensures strength with hinged lugs for increased rigidity
  • Injection device: High precision dosing machine ensures stable injection process with intelligent control
  • Full digital CAN control: Precise system pressure and flow control with easy operation and maintenance
  • Manifold: YUKEN solenoid valve for reliable sealing and long service life
  • Main die cylinder: Forged steel construction for stability
  • Adjustable ejector: Flexible operation for different mold characteristics
  • High-quality PLC system: Distribution box for reliable operation
  • User-friendly interface: Computer operation display reduces waiting time
