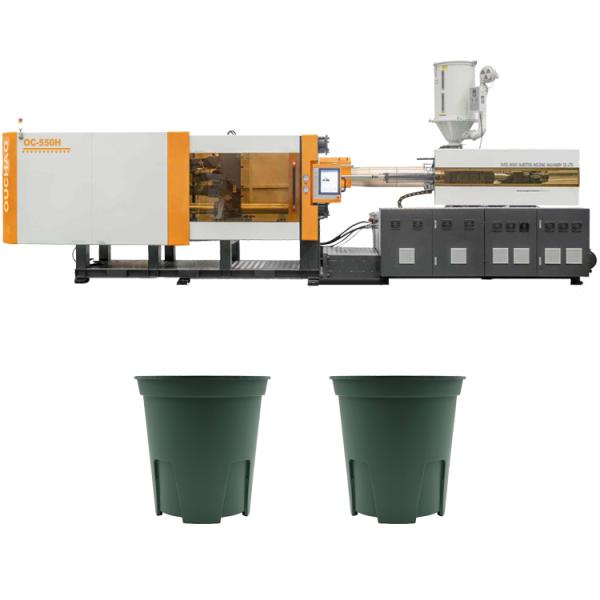

Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Specifications
Brand Name :
OUCO
Model Number :
OCM-550H
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine

OUCO injection molding machines are committed to building a brand that is exclusively our own, and walking in the forefront of the industry. In order to meet the needs of customers, we are not afraid of hardships and challenges, independent research and development and manufacture of high-quality injection molding equipment, customized for customers with high efficiency, energy saving, professional production solutions. We win the favor of the market with our quality and win the praise of customers with our service.
Features and Advantages:
1. Advantages of injection unit: fast and accurate, precise and efficient, high repeatability, fast response to production demand, improve production efficiency, create greater value for the enterprise.
2. Advantages of hydraulic system: sufficient power, fast response. The use of advanced control technology and efficient pump sets not only improves power transmission efficiency, but also reduces energy loss. Bring stability and reliability to the machine, effectively extend the life of the machine, and bring unlimited possibilities for your production.

Product Advantages

1. High efficiency and energy saving: bring you the maximum production benefits, reduce production energy consumption and improve production efficiency.
2. Convenient operation: the machine design is more humanized, easy and convenient to operate, reducing the difficulty of operation, to a certain extent, reducing the error of labor costs, reducing the operator's fatigue.
3. Safe and reliable: with complete personnel protection devices, work under the condition of ensuring safety, reduce the occurrence of accidents, reflecting the people-oriented corporate culture.
4. Accurate and stable: precise control of injection speed, pressure and position to ensure product quality and consistency.

Parameters

MODEL OCH-550T
Clamping force (kN) 5500
Space between tie bar (mm*mm) 860*800
Max. mold thickness (mm) 800
Min. mold thickness(mm) 300
Opening stroke (mm) 1010
Ejector stroke(mm) 210
Ejector force forward(Kn) 103
Screw diameter(mm) 90
Screw L/D ratio 22
Theoretical injection volume (cm3) 2608
Shot weight (PS) g 2519
Injection pressure(MPa) 118
Injection speed (mm/s) 133
Injection rate (g/s) 817
Motor power (Kw) 75
Oil tank capacity(L) 850
Heater power (Kw) 41
Machine Weight (kg) 20
Machine size L×W×H (mm) 8700*2100*2200

Detail Pictures
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding MachineCustomizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding MachineCustomizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding MachineCustomizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding MachineCustomizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Company Profile
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
Customizable Highly Responsive Production Flower Pot OUCO 550T Servo Hydraulic Injection Molding Machine
