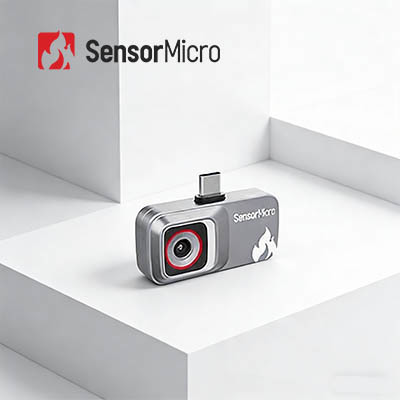

Dongle-sized 120×90 Resolution Thermal Camera with USB2.0 Interface for Mobile Devices
Dongle-sized 120×90 Resolution Thermal Camera with USB2.0 Interface for Mobile Devices
Specifications
Brand Name :
SensorMicro
Model Number :
iMC112
Place of Origin :
WUHAN
MOQ :
1 Piece
Payment Terms :
L/C,T/T
Certification :
CE, FCC, RoHS
Price :
Negotiable
Storage Temperature :
-45℃~+85℃
Operating Voltage :
3.3V±0.1V
Typical Power Consumption :
150mW
Type :
Dongle-sized Thermal Camera
Frame Rate :
25Hz
Output Data :
14bit Raw
Description
Dongle-sized 120×90/12μm Thermal Camera with USB2.0 Interface for Mobile Devices
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, targeting mobile terminal applications. Paired with a dedicated app, it outputs images and temperature matrices directly without requiring temperature calibration, making development effortless. This ultra-compact module offers cost-effective performance with low power consumption and universal control interfaces that simplify integration.
Product Applications
The iMC112 infrared miniature module is widely used across multiple industries including AloT, Machine Vision, Industrial Vision, and Security Monitoring.
Main Features
Portable and Cost-Effective
  • Equipped with self-developed 120×90/12μm wafer-level infrared detector for significant cost advantages
  • Ultra-compact design ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with dedicated app to output thermal images and temperature matrices directly
  • Encased in structural components for enhanced reliability and durability
Mainstream Interfaces, Easy Development
  • Standard USB 2.0 digital video output interface with wide compatibility
  • Factory-calibrated temperature data eliminates additional development effort
Technical Specifications
Model iMC112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
About Global Sensor Technology
SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors to customers worldwide. Our professional application experience supports diverse integration needs.
SensorMicro provides advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors are widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capability meets growing demand from all existing and emerging markets.
