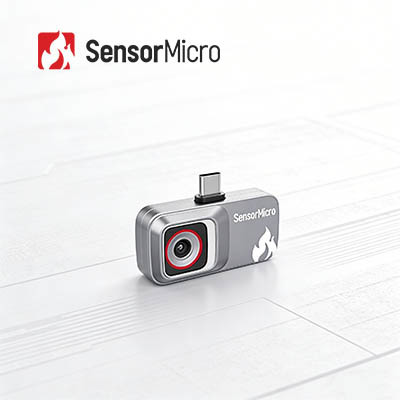

256×192/12μm Resolution Plug-in Thermal Camera with USB2.0 Interface and Focus Free Design
256×192/12μm Resolution Plug-in Thermal Camera with USB2.0 Interface and Focus Free Design
Specifications
Brand Name :
SensorMicro
Model Number :
iMC212
Place of Origin :
WUHAN
MOQ :
1 Piece
Payment Terms :
T/T
Certification :
CE, FCC, RoHS
Price :
Negotiable
Infrared Detector Resolution :
256×192/12μm
Temperature Measurement Range :
-20℃~+550℃
Digital Video Interface :
USB2.0
Frame Rate :
25Hz
Lens (HFOV/FL) :
56°/ 3.2mm
Focus Mode :
Focus Free
Description
Interchangeable Attachments 256*192/12μm Plug-in Thermal Camera
The iMC212 infrared miniature module is built on the self-developed TIMO212 module, targeting mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without the need for temperature calibration, significantly reducing development effort. The iMC ultra-compact module is a cost-effective and low-power solution equipped with universal control interfaces that simplify integration and development processes.
Main Features
Portable and Cost-Effective
  • Equipped with a self-developed 256*192/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with ISP Processing Board and Intelligent Image Algorithm to output thermal images and temperature matrices directly
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, eliminating additional development effort
Technical Specifications
Model iMC212
Resolution 256*192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/ 3.2mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
About SensorMicro
SensorMicro is the world's leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors to customers worldwide. We share professional application experience and provide advanced infrared detectors, camera cores, and modules with versatile formats and wavebands.
Our products are designed for clarity, sensitivity, and efficiency, integrating seamlessly into diverse systems to empower next-generation imaging and sensing applications across industries. SensorMicro detectors are widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capability enables us to meet the growing demand from all existing and emerging markets.
