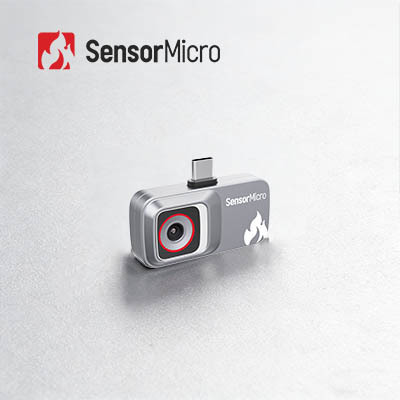

Fully SWaP 256×192/12μm Infrared Camera Module with 300mW Power Consumption and USB2.0 Interface for Security Monitoring
Fully SWaP 256×192/12μm Infrared Camera Module with 300mW Power Consumption and USB2.0 Interface for Security Monitoring
Specifications
Brand Name :
SensorMicro
Model Number :
iMC212
Place of Origin :
WUHAN
MOQ :
1 Piece
Payment Terms :
T/T
Price :
Negotiable
Certification :
CE, FCC, RoHS
Lens (HFOV/FL) :
56°/ 3.2mm
Digital Video Interface :
USB2.0
Infrared Detector :
Ucooled LWIR FPA 256×192/12μm
Typical Power Consumption :
300mW
Temperature Measurement Accuracy :
Greater of ±2℃ / ±2%
Operating Voltage :
3.3V±0.1V
Description
Fully SWaP Infrared Camera Module 256×192/12μm for Effective Security Monitoring
The iMC212 infrared miniature module is engineered for mobile terminal applications, built on our self-developed TIMO212 platform. This integrated solution combines an infrared ISP processing board with structural components to deliver thermal images and temperature matrices directly, eliminating the need for temperature calibration and significantly reducing development complexity.
Key Features
Portable and Cost-Effective
  • Features a self-developed 256×192/12μm wafer-level infrared detector with significant cost advantages
  • Ultra-compact design optimized for mobile and portable device integration
Robust Structure, Reliable Performance
  • Integrated ISP Processing Board with Intelligent Image Algorithm for direct thermal image and temperature matrix output
  • Encased in protective structural components for enhanced reliability and system completeness
Mainstream Interfaces, Easy Development
  • Standard USB 2.0 digital video output interface for broad compatibility
  • Factory-calibrated temperature data eliminates additional development requirements
Technical Specifications
Model iMC212
Resolution 256×192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/3.2mm
Digital Video Interface USB 2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃~60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Manufacturing Advantages
In-House Infrared Detector Technologies
  • 8-inch 0.11μm VOx Uncooled Infrared Detectors
  • 8-inch 0.5μm MCT Cooled Infrared Detectors
  • 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Capabilities
  • 6 million self-developed infrared detectors annual production capacity
  • 30,000 m² semiconductor fabrication facility
  • 20,000 m² cleanroom area
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors to customers worldwide. Our products integrate advanced infrared detectors, camera cores, and modules with versatile formats and wavebands, designed for exceptional clarity, sensitivity, and efficiency.
SensorMicro detectors are widely deployed in thermography, security & surveillance, personal vision, automotive, and consumer infrared applications. Our volume production capabilities ensure we can meet growing demand across all existing and emerging markets.
