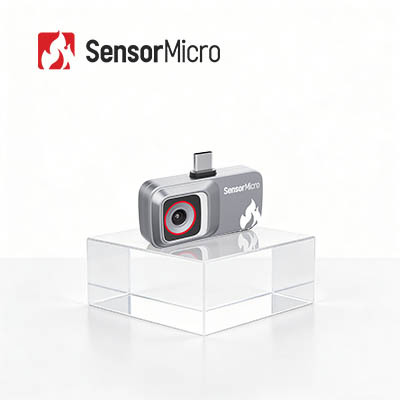

Portable and Cost-Effective iMC112 Thermal Imaging Module with 120×90 Resolution
Portable and Cost-Effective iMC112 Thermal Imaging Module with 120×90 Resolution
Specifications
Brand Name :
SensorMicro
Model Number :
iMC112
Place of Origin :
WUHAN
MOQ :
1 Piece
Payment Terms :
T/T
Certification :
CE, FCC, RoHS
Resoultion :
120×90/12μm
Detector Type :
Uncooled VOx FPA Microbolometer
Used for :
AloT, Machine Vision, Industrial Vision, Security Monitoring
Typical Power Consumption :
150mW
Temperature Measurement Range :
-20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy :
Greater of ±2℃ / ±2%
Description
Portable and Cost-Effective Uncooled Tiny iMC112 Thermal Imaging Module
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, targeting mobile terminal applications. Paired with a dedicated app, it can output images and temperature matrices directly, requiring no temperature calibration, making development effortless. The iMC ultra-compact module is a cost-effective and low-power solution. Equipped with universal control interfaces, it simplifies integration and development while reducing technical barriers to infrared thermal imaging technology.
Main Features
Portable and Cost-Effective
  • Equipped with a self-developed 120×90/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with a dedicated app to output thermal images and temperature matrices directly, showing excellent universality
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, eliminating additional development effort
Technical Specifications
Model iMC112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Frequently Asked Questions
What is the difference between low light, active IR and thermal imaging?
Low light requires natural light and transforms weak natural light images into enhanced electronic images through image intensifiers. Active IR actively emits infrared light and uses infrared beams reflected by the target, offering poor concealment. Thermal imaging doesn't require any light and is a passive infrared night vision technology that detects infrared radiation differences between targets and scenes or different parts of an object. It is not affected by changes in surrounding lighting conditions, during night, or even in fog, rain and other harsh environments.
Can you block thermal imaging?
In most cases, you cannot block thermal imaging. However, infrared rays cannot penetrate walls, and glass can block IR. To avoid detection, you can conceal yourself behind glass or walls to block thermal imaging.
About SensorMicro
SensorMicro was founded with a simple but powerful belief: Innovation should serve real-world needs. Backed by Guide Infrared, a world leader in the infrared industry, SensorMicro benefits from over three decades of accumulated experience. We exist to empower people and systems to see beyond the surface—revealing patterns, problems, and possibilities that lie beneath. SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Our products are designed for clarity, sensitivity, and efficiency, integrating seamlessly into diverse systems to empower next-generation imaging and sensing applications across multiple industries. With a wide range of resolutions, interfaces, and form factors, our products enable seamless deployment across sectors including security, energy, environmental monitoring, healthcare, and industrial automation. By providing both detectors and modules across uncooled and cooled technologies, SensorMicro empowers partners with versatile, scalable infrared solutions—unlocking new possibilities in thermal imaging innovation worldwide.
