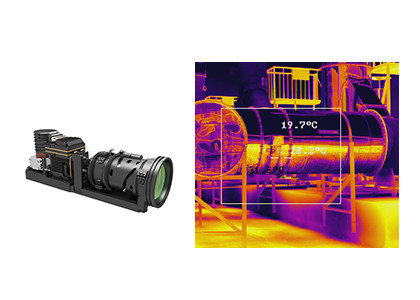

LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection

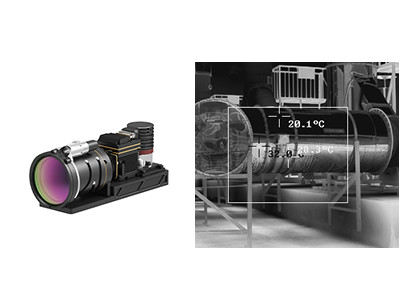

LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection

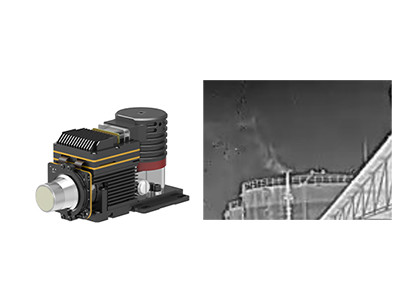

LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection

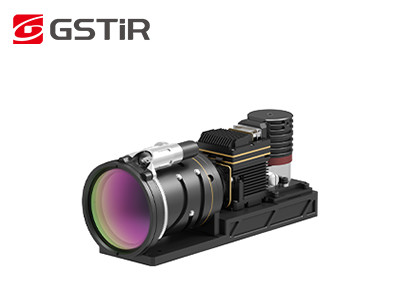

LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection

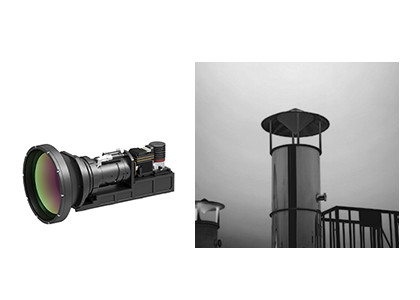

LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection

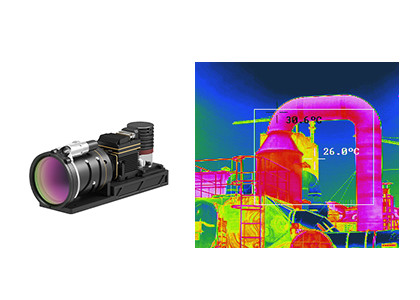

LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection
LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection
LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection
LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection
LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection
LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection
LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection
LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection
LWIR 320x256/30μm Cooled Infrared Camera Core with 20mK NETD for Gas Leakage Detection
Specifications
Brand Name :
SensorMicro
Model Number :
LFM330C2
Certification :
RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C,T/T
Size :
142mm×58.5mm×80mm
Resolution :
320x256/30μm
NETD :
20mK (F1.5)
Spectral Range :
10.3±0.1μm～10.9±0.1μm
Style :
Cooled Infrared Module
Optional Lens :
Fixed Zoom
Description
LWIR 320x256/30μm Cooled Gas Leakage Infrared Camera Core with 23mm Lens
The LFM330C2 is a cooled infrared camera module specifically designed for gas leakage detection. It integrates a 320x256/30μm cooled LWIR infrared detector capable of detecting SF₆ and NH₃ gas leaks with high precision.
Critical Safety Application
Gas leakage represents a serious safety concern in industrial production environments. The escape of harmful gases can lead to catastrophic consequences including explosions, resulting in significant personnel and property damage. Effective gas detection is therefore essential for maintaining safe operations.
SensorMicro provides comprehensive infrared thermal imaging integration solutions, including professional technical support and full after-sales services for gas leak detection applications. Camera manufacturers can quickly integrate this infrared module to design their own efficient gas leak detection cameras.
Key Features
  • Advanced Technology: Developed using T2SL technology with high quantum efficiency
  • Easy Integration: Supports various interfaces and RAW/YUV image output formats
  • High Sensitivity: Superior detection capabilities for precise gas leak identification
Technical Specifications
Module Model LFM330C2
Resolution 320*256
Pixel Size 30μm
Spectral Response 10.3±0.1μm～10.9±0.1μm
Typical NETD 20mK (F1.5)
Frame Rate 60Hz
Digital Video Interfaces Standard: DVP/LVDS/USB2.0
Optional: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode fiber/Multi-mode fiber
Communication Interfaces Standard: USB2.0/LV-TTL
Optional: RS422/CAN/USB3.0/GigE
Cooling Time (23℃) ≤8min@24V
Stable Power Consumption (23℃) ≤13W
Dimensions 142*58.5*80 mm
Weight ≤680 g
Operating Temperature -40℃～+71℃
Focal Length 25mm
Industrial Applications
The LFM330C2 gas leak detection thermal imaging camera is designed for detecting various industrial gases including:
  • Sulfur hexafluoride • Anhydrous ammonia • Cyanoacrylate ethyl ester
  • Chlorine dioxide • Acetic acid • Freon-12 • Ethylene
  • Methyl ethyl ketone • Acetyl chloride • Allyl bromide
  • Allyl chloride • Allyl fluoride • Bromomethane • Freon-11
  • Furan • Hydrazine • Methylsilane • Methylvinyl ketone
  • Acrolein • Propene • Tetrahydrofuran • Trichloroethylene
  • Uranyl fluoride • Vinyl chloride • Vinyl cyanide
Manufacturing Capabilities
In-House Infrared Detector Technologies:
  • 8-inch 0.11μm VOx Uncooled Infrared Detectors
  • 8-inch 0.5μm MCT Cooled Infrared Detectors
  • 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Advantages:
  • 6 million self-developed infrared detectors per year
  • 30,000 m² semiconductor fabrication facility
  • 20,000 m² cleanroom area
Frequently Asked Questions
What is NETD?
NETD refers to "Noise Equivalent Temperature Difference". It measures a thermal imaging detector's ability to distinguish between very small differences in thermal radiation. NETD is typically expressed in milli-Kelvin (mK). Generally, a lower NETD value indicates higher thermal sensitivity.
In which industries can the infrared detectors/thermal camera cores be used?
SensorMicro infrared detectors and thermal camera cores are widely used across multiple industries including:
  • Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
  • Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
  • Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
  • UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
  • Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
  • ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
  • AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
  • Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
