320x256/30 μm Cooled Gas Leakage Detector Camera with 23mm Lens for Petrochemical Industry

In the petrochemical industry, gas leak detection scenarios occur frequently. Traditional detection devices have limited detection distance and low detection efficiency, making it difficult to achieve intuitive and accurate identification of common VOCs gas leaks such as methane and benzene.

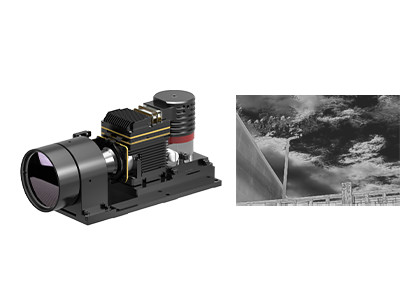

The LFM330Z3 gas leak detection camera integrates a 320x256/30µm MCT cooled MWIR infrared detector and covers mid wavelength from 3.2 to 3.5μm. This cooled infrared camera module can detect leaks of dozens of volatile organic compounds (VOCs), which are human-made chemicals used in manufacturing paints, and refrigerants, some of which may have adverse health effects.

Designed specifically for VOCs gas leak detection, the LFM330Z3 can remotely and visually detect minor leaks of VOCs gases such as methane, benzene, and ethanol, enabling efficient gas operation monitoring and safety production warning.

By using this thermal module, inspectors can quickly detect harmful gas leakage, playing a crucial role in safe production, efficiency improvement, and cost saving.

• Resolution: 320x256
• Pixel Pitch: 30µm
• NETD 10mK, High Sensitivity
• Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm
• High reliability
• Minor leaks are clearly visible with gas enhanced HSM algorithm
• Multi-scenario application for portable handheld devices or 24/7 online monitoring
• Easy integration with various interfaces and RAW/YUV image output

The LFM330Z3 gas leak detection thermal imaging camera is used for visualizing invisible VOCs (volatile organic compounds) and detecting gas leakage including:

Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Xylene, Ethylbenzene and many others.

Diverse Product Portfolio: A wide range of product formats including infrared detectors, camera cores, and modules to meet various integration requirements.

Rich Product Variety: Multiple array resolutions, pixel sizes, wavebands, and lens options combinations provide greater flexibility for diverse applications.

Outstanding Performance: Clear imaging, compact size, low power consumption, high sensitivity, and strong reliability—designed to perform under a wide range of environmental challenges.

Easy Integration: Multiple interface options make integration straightforward and enable rapid development across multiple application fields.

Uncooled infrared focal plane detectors do not need cooled devices and can work at room temperature. They offer advantages including fast start-up, low power consumption, small size, light weight, long life, and low cost.

• The detector resolution
• The pixel size
• The NETD
• The image quality
• The lens options
• The power consumption
• The size and weight
• The mechanical & electrical interface
• The budget
