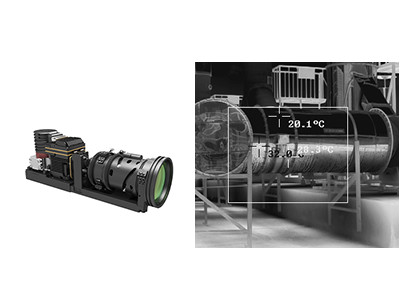

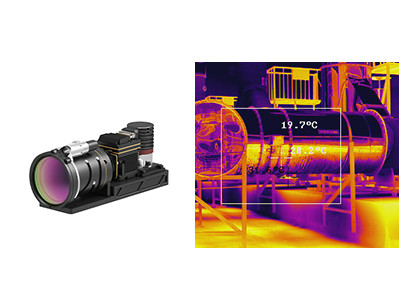

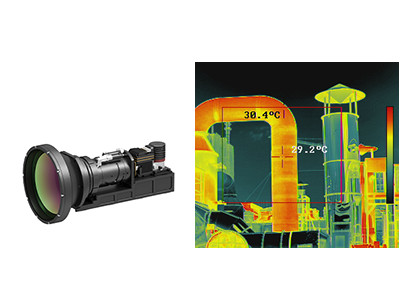

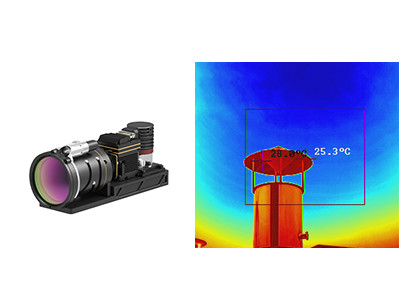

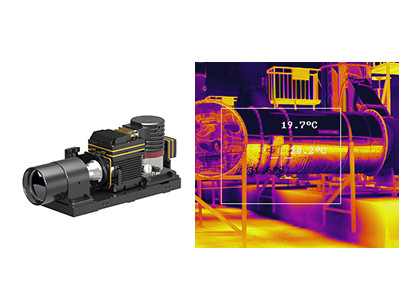

25mm Lens Cooled Infrared Camera Module with 320x256 Resolution and 20mK NETD for Optical Gas Imaging and Gas Leak Detection
25mm Lens Cooled Infrared Camera Module with 320x256 Resolution and 20mK NETD for Optical Gas Imaging and Gas Leak Detection
25mm Lens Cooled Infrared Camera Module with 320x256 Resolution and 20mK NETD for Optical Gas Imaging and Gas Leak Detection
25mm Lens Cooled Infrared Camera Module with 320x256 Resolution and 20mK NETD for Optical Gas Imaging and Gas Leak Detection
25mm Lens Cooled Infrared Camera Module with 320x256 Resolution and 20mK NETD for Optical Gas Imaging and Gas Leak Detection
25mm Lens Cooled Infrared Camera Module with 320x256 Resolution and 20mK NETD for Optical Gas Imaging and Gas Leak Detection
25mm Lens Cooled Infrared Camera Module with 320x256 Resolution and 20mK NETD for Optical Gas Imaging and Gas Leak Detection
25mm Lens Cooled Infrared Camera Module with 320x256 Resolution and 20mK NETD for Optical Gas Imaging and Gas Leak Detection
25mm Lens Cooled Infrared Camera Module with 320x256 Resolution and 20mK NETD for Optical Gas Imaging and Gas Leak Detection
25mm Lens Cooled Infrared Camera Module with 320x256 Resolution and 20mK NETD for Optical Gas Imaging and Gas Leak Detection
25mm Lens Cooled Infrared Camera Module with 320x256 Resolution and 20mK NETD for Optical Gas Imaging and Gas Leak Detection
25mm Lens Cooled Infrared Camera Module with 320x256 Resolution and 20mK NETD for Optical Gas Imaging and Gas Leak Detection
Specifications
Brand Name :
SensorMicro
Model Number :
LFM330C2
Certification :
RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C,T/T
Resolution :
320x256/30μm
Size :
142mm×58.5mm×80mm
NETD :
20mK (F1.5)
Style :
Cooled Infrared Module
Spectral Range :
10.3±0.1μm～10.9±0.1μm
Optional Lens :
Fixed Zoom
Description
25mm Lens Optical Gas Imaging Cooled Infrared Camera Module
Advanced cooled infrared thermal module specifically engineered for precise gas leak detection applications.
Product Overview
Sulfur hexafluoride (SF₆) is commonly used in high-voltage power equipment and has significant greenhouse effects. Ammonia, widely employed in industrial refrigeration systems, is highly toxic and volatile.
The LFM330C2 is a cooled infrared thermal module specifically designed for gas leakage detection. It integrates a 320x256/30µm cooled LWIR infrared detector and utilizes spectral wavelength filtering technology to visualize SF₆/NH₃ gas leaks.
This system provides rapid, non-contact measurement capabilities for hard-to-access locations, significantly enhancing safety for both inspectors and equipment.
Key Features
  • Resolution: 320x256 pixels
  • Pixel Pitch: 30µm
  • NETD: 20mK, High Sensitivity
  • Spectral Response: 10.3µm±0.1µm~10.9µm±0.1µm
  • Support for various interfaces and RAW/YUV image output
Technical Specifications
Module Model LFM330C2
Resolution 320*256
Pixel Size 30μm
Spectral Response 10.3±0.1μm～10.9±0.1μm
Typical NETD 20mK (F1.5)
Frame Rate 60Hz
Digital Video Standard: DVP/LVDS/USB2.0
Optional: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode fiber/Multi-mode fiber
Communication Standard: USB2.0/LV-TTL
Optional: RS422/CAN/USB3.0/GigE
Cooling Time (23℃) ≤8min@24V
Stable Power Consumption (23℃) ≤13W
Size 142*58.5*80 mm
Weight ≤680 g
Working Temperature -40℃～+71℃
Focal Length 25mm
Industrial Applications
The LFM330C2 gas leak detection thermal imaging camera is used for detecting various industrial gases including:
Sulfur hexafluoride
Anhydrous ammonia
Cyanoacrylate ethyl ester
Chlorine dioxide
Acetic acid
Freon-12
Ethylene
Methyl ethyl ketone
Acetyl chloride
Allyl bromide
Allyl chloride
Allyl fluoride
Bromomethane
Freon-11
Furan
Hydrazine
Methylsilane
Methylvinyl ketone
Acrolein
Propene
Tetrahydrofuran
Trichloroethylene
Uranyl fluoride
Vinyl chloride
Vinyl cyanide
Customer Testimonials
25mm Lens Cooled Infrared Camera Module with 320x256 Resolution and 20mK NETD for Optical Gas Imaging and Gas Leak Detection
Frequently Asked Questions
What is infrared thermal imaging?
Infrared thermal imaging utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible thermal images showing temperature distribution across target surfaces. Different objects and even different parts of the same object exhibit varying radiation capabilities and infrared reflection strengths.
What can infrared imaging be used for?
  • Night vision
  • Search & rescue operations
  • Non-destructive testing
  • Epidemic prevention
  • Thermography
  • Security & monitoring
  • Firefighting applications
What is a thermal imaging module?
A thermal imaging module typically consists of an infrared detector, infrared lens, and hardware electronics with embedded software and algorithms. It represents the fundamental building block of a complete thermal imaging system.
