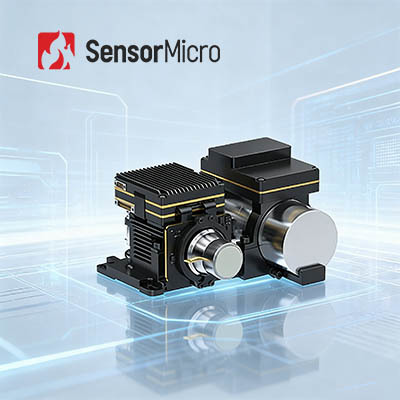

Gas Leakage Detection Thermal Camera Core with 320x256/30μm and 10mK NETD Optical Gas Imaging Infrared Detector
Gas Leakage Detection Thermal Camera Core with 320x256/30μm and 10mK NETD Optical Gas Imaging Infrared Detector
Specifications
Brand Name :
SensorMicro
Model Number :
LFM330Z3
Certification :
RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C,T/T
Type :
Optical Gas Imaging Thermal Module
Wave Band :
Mid Wavelength
Resolution :
320x256 / 30μm
Cryocooler :
RS058I; LS713; LS734
NETD :
10mK
Spectral Range :
3.2±0.1~3.5±0.1μm
Description
Gas Leakage Detection Thermal Camera Core with 320x256/30μm Infrared Detector
The LFM330Z3 infrared gas leak detection camera is specifically designed for detecting minute fugitive emissions of industrial gases. Featuring a customized 320x256 / 30µm cooled infrared detector, it operates in the spectral range of 3.2~3.5µm for VOC leak detection.
This real-time non-contact measurement system enables inspectors to detect gas leaks in dangerous or hard-to-access areas, ensuring personnel safety during inspections. It offers significant value in safety production, environmental protection supervision, and cost reduction applications.
Main Features
High Sensitivity
  • High sensitivity cooled infrared detector with NETD≤15mK
  • Highly efficient for low gas concentration and slow gas flow applications
  • Effective leak detection for Alkanes, Alkenes, Alcohols, Benzenes, Ketones and other gases
Easy Integration
  • Cameralink/DVP/USB/Gig-E image output interfaces compatible with various development environments
  • Multiple lens configurations with optional fields of view for diverse application scenarios
Product Specifications
Module model LFM330Z3
Resolution 320×256
Pixel Size 30μm
Spectral Response 3.2±0.1μm～3.5±0.1μm
Typical NETD 10mK (F1.5)
Frame rate 30Hz
Digital video Standard: DVP/LVDS/USB2.0
Optional: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode fiber/Multi-mode fiber
Communication Standard: USB2.0/LV-TTL
Optional: RS422/CAN/USB3.0/GigE
Cryocooler RS058I | LS713 | LS734
Cooling time (23 ℃) ≤8min@12V | ≤6.5min@12V | ≤6.5min@24V
Stable power consumption (23 ℃) ≤10W | ≤11W | ≤16W
Size (mm) 142×58.5×80 | 108×116×73 | 130×131×80
Weight (g) ≤680 | ≤800 | ≤1610
Working temperature -40℃～+71℃
Focal length 23mm/55mm/25-75mm
Industrial Applications
The LFM330Z3 gas leak detection thermal imaging camera visualizes invisible VOCs (volatile organic compounds) and detects gas leaks including: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Xylene, Ethylbenzene and more.
About SensorMicro
SensorMicro focuses on infrared thermal imaging technology and is driven by user needs. We are committed to the in-depth development and continuous improvement of infrared products and application solutions.
In the field of gas leak detection, we offer a series of infrared detectors and thermal modules for medium to long wave gas leak detection based on the spectral characteristics of different gases. Integrators can quickly develop various gas leak detection system solutions such as handheld devices, online monitoring systems, and UAV payloads using our product portfolio and application solutions, ensuring environmental protection, energy efficiency, and safety production across industries including petroleum, natural gas, chemical, power, and environmental monitoring.
Frequently Asked Questions
What is a cryocooler used for?
Cryocoolers maintain sensors at extremely low temperatures to enable thermal imaging during long-term missions. Many high-end applications require sensors to operate at these low temperatures for optimal performance.
What are the main factors to measure the quality of a cryocooler?
Long battery life and reliable operation are the primary factors for measuring cryocooler quality. LFM330Z3 cryocoolers feature a wide operating temperature range and excellent reliability, with MTTF (Mean Time to Failures) reaching 10,000 hours to meet 24/7 operational requirements.
What is MTTF?
MTTF (Mean Time to Failure) measures component reliability by indicating the average time before a part fails and requires replacement. This metric provides insight into the quality of components, with longer lifespans delivering greater value.
