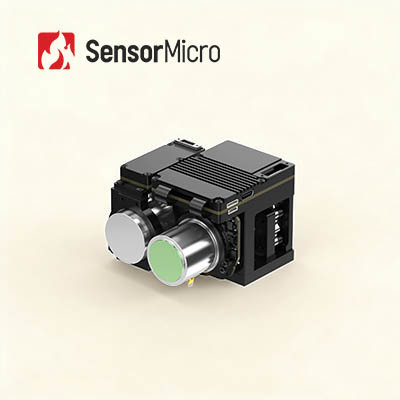

640x512/15μm Cooled IR Camera Module with 25mK NETD and 3.2-3.5μm Spectral Range for Optical Gas Imaging
640x512/15μm Cooled IR Camera Module with 25mK NETD and 3.2-3.5μm Spectral Range for Optical Gas Imaging
Specifications
Brand Name :
SensorMicro
Model Number :
LFM615HZ3
Certification :
RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C,T/T
NETD :
25mK (F1.5)
Style :
Cooled Infrared Module
Optional Lens :
Fixed Zoom
Size :
71mm×72mm×52mm
Resolution :
640x512/15μm
Spectral Range :
3.2±0.1~3.5±0.1μm
Description
640x512/15μm Cooled IR Camera Module for Optical Gas Imaging
Product Overview
The LFM615HZ3 is a cooled infrared thermal imaging module specifically engineered for gas leakage detection. It integrates a 640x512/15µm MCT cooled MWIR infrared detector and employs spectral wavelength filtering technology to visualize invisible VOCs (Volatile Organic Compounds) that are undetectable by the naked eye.
Main Features
  • SWaP³ optimization: Smaller size, lighter weight, lower power consumption
  • Clear & identifiable leakage detection with 640*512 resolution
  • Gas enhanced HSM algorithm support
  • High reliability and sensitivity
  • Easy integration with various interfaces and RAW/YUV image output
  • Full scene coverage for handheld and long-term online applications
Product Specifications
Module Model LFM615HZ3
Resolution 640*512
Pixel Size 15μm
Spectral Response 3.2±0.1μm～3.5±0.1μm
Typical NETD 25mK (F1.5)
Frame Rate 30Hz
Digital Video USB3.0/GigE/MIPI
Communication USB3.0/GigE/RS422
Cooling Time (23℃) ≤5min@12V
Stable Power Consumption (23℃) ≤8.5W
Size (mm) 71*72*52
Weight (g) ≤370
Working Temperature -40℃～+71℃
Focal Length 23mm/55mm/25-75mm
Industrial Applications
This gas leak detection thermal imaging camera visualizes invisible VOCs and detects gas leakage including: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Xylene, Ethylbenzene and more.
About SensorMicro
SensorMicro specializes in infrared thermal imaging technology, focusing on the development and improvement of infrared products and application solutions. As a leading infrared detector manufacturer, we provide high-performance uncooled and cooled thermal imaging detectors along with professional application expertise to customers worldwide.
640x512/15μm Cooled IR Camera Module with 25mK NETD and 3.2-3.5μm Spectral Range for Optical Gas Imaging
Frequently Asked Questions
Advantages of Optical Gas Imaging
  • Time-saving & Efficient: Large-scale real-time detection with rapid leak location
  • Long Range Detection: Non-contact testing from safe distances
  • Easy to Analyze: Intuitive imaging with instant storage capabilities
  • Multi-function Inspection: Detects various gases with remote temperature measurement
Working Principle of Optical Gas Imaging
Optical gas imaging uses infrared technology to detect invisible industrial gases. The technology works by identifying infrared radiation differences between gas and background at specific absorption wavelengths. The detector's narrowband filter converts these differences into visible infrared images.
