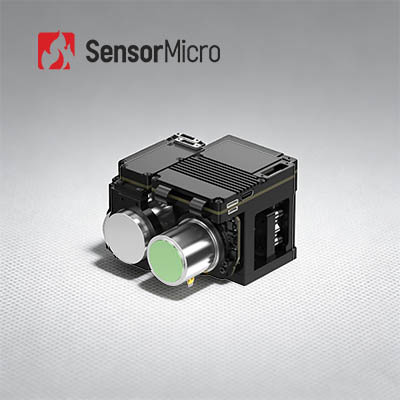

OGI Optical Gas Imaging Camera with 640x512 Resolution, 25mK NETD for Gas Leak Detection
OGI Optical Gas Imaging Camera with 640x512 Resolution, 25mK NETD for Gas Leak Detection
Specifications
Brand Name :
SensorMicro
Model Number :
LFM615HZ3
Certification :
RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C,T/T
Detector resolution :
640x512
NETD :
25mK (F1.5)
Function :
Gas Leak Detection
Cooling time (23 ℃) :
≤5min@12V
Pixel Size :
15μm
Spectral Range :
3.2±0.1~3.5±0.1μm
Description
OGI Optical Gas Imaging Camera with 640x512 Resolution, 25mK NETD for Gas Leak Detection
LFM615HZ3 Cooled Infrared Module
Optical Gas Imaging (OGI) is an innovative thermal imaging technology that utilizes high sensitivity infrared cameras for detecting minute fugitive emissions of industrial gases.
The LFM615HZ3 cooled optical gas imaging infrared camera module detects hazardous gas leaks by visualizing them. This thermal camera module features a cooled infrared detector with 640x512 resolution, 15µm pixel size, and 3.2~3.5μm spectral range.
Using the LFM615HZ3 thermal camera module enables non-contact detection, ensuring inspector safety while improving quality, efficiency, and cost savings.
Main Features
  • Resolution: 640x512
  • Pixel pitch: 15µm
  • NETD: 25mK, high sensitivity
  • Spectral response: 3.2µm±0.1µm~3.5µm±0.1µm
Product Specifications
Module model LFM615HZ3
Resolution 640×512
Pixel size 15μm
Spectral response 3.2±0.1μm～3.5±0.1μm
Typical NETD 25mK (F1.5)
Frame rate 30Hz
Digital video USB3.0/GigE/MIPI
Communication USB3.0/GigE/RS422
Cooling time (23 ℃) ≤5min@12V
Stable power consumption (23 ℃) ≤8.5W
Size (mm) 71×72×52
Weight (g) ≤370
Working temperature -40℃～+71℃
Focal length 23mm/55mm/25-75mm
Industrial Applications
The LFM615HZ3 gas leak detection thermal imaging camera module visualizes invisible VOCs (volatile organic compounds) and detects gas leakage including: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Xylene, Ethylbenzene and more.
Core Technology
Strong R&D Capabilities
SensorMicro is one of China's earliest companies researching antimonide-based Type-II superlattice (T2SL) cooled infrared detectors. We pioneered the mass production and engineering application of such detectors domestically, with proven capabilities in R&D and manufacturing of high-end advanced devices, including MWIR, LWIR, large-format arrays, and high-operating-temperature (HOT) detectors.
Leading Technological Achievements
SensorMicro leads the development trend of SWaP³ technology in the industry, and is far ahead of similar products in the fields of large-format array, small pixel, high-temperature operation, miniaturization, high performance, and low power consumption.
Complete Supply Chain
From cutting-edge chip design and precise cooler manufacturing to high vacuum packaging processes, we have achieved stable supply chain, reliable quality, and significant cost advantages with integrated technology.
Frequently Asked Questions
Advantages of Optical Gas Imaging
  • Time-saving & Efficient: supports large-scale real-time detection, rapid leak location without interrupting production
  • Long Range Detection: operates away from dangerous areas with non-contact, non-destructive testing
  • Easy to Analyze: intuitive imaging with instant storage and convenient analysis
  • Multi-function Inspection: detects various gases with excellent remote temperature measurement
Working Principle of Optical Gas Imaging
Optical gas imaging is an infrared technology that visualizes invisible industrial gases. After absorbing infrared radiation at specific wavelengths, infrared radiation differences occur between the gas and background. The gas leak detection infrared detector with built-in narrowband filter receives the infrared band near the gas infrared absorption peak and converts the gas into visible infrared images through radiation differences.
