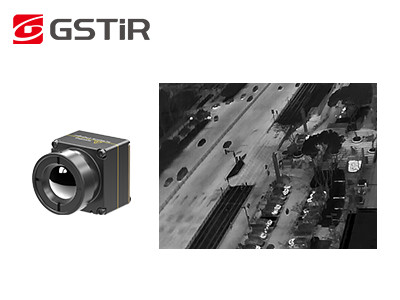

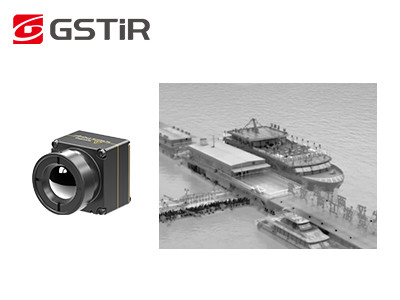

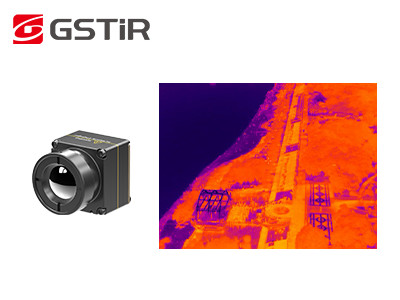

Uncooled Thermal Imaging Camera Core with 640x512 Resolution 12μm Pixel Pitch and 0.5W Power Consumption for UAV Payloads
Uncooled Thermal Imaging Camera Core with 640x512 Resolution 12μm Pixel Pitch and 0.5W Power Consumption for UAV Payloads
Uncooled Thermal Imaging Camera Core with 640x512 Resolution 12μm Pixel Pitch and 0.5W Power Consumption for UAV Payloads
Uncooled Thermal Imaging Camera Core with 640x512 Resolution 12μm Pixel Pitch and 0.5W Power Consumption for UAV Payloads
Uncooled Thermal Imaging Camera Core with 640x512 Resolution 12μm Pixel Pitch and 0.5W Power Consumption for UAV Payloads
Uncooled Thermal Imaging Camera Core with 640x512 Resolution 12μm Pixel Pitch and 0.5W Power Consumption for UAV Payloads
Uncooled Thermal Imaging Camera Core with 640x512 Resolution 12μm Pixel Pitch and 0.5W Power Consumption for UAV Payloads
Uncooled Thermal Imaging Camera Core with 640x512 Resolution 12μm Pixel Pitch and 0.5W Power Consumption for UAV Payloads
Uncooled Thermal Imaging Camera Core with 640x512 Resolution 12μm Pixel Pitch and 0.5W Power Consumption for UAV Payloads
Uncooled Thermal Imaging Camera Core with 640x512 Resolution 12μm Pixel Pitch and 0.5W Power Consumption for UAV Payloads
Specifications
Resolution :
640x512
Pixel Pitch :
12μm
Brand Name :
SensorMicro
Model Number :
iTL612 Pro
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T
Spectral Range :
8~14μm
Power Consumption :
0.5W
Typical NETD :
≤40mK
Frame Rate :
25/30Hz/50Hz
Description
Customized Uncooled Thermal Imaging Camera Core 0.7W for UAV Payloads
Tiny Size Uncooled Infrared Camera Core 640x512 12um for UAV Payloads

The iTL612Pro ultra-miniature infrared camera core sets a new benchmark for compact thermal imaging modules. Equipped with a high-performance 640×512 resolution, 12μm wafer-level detector, it delivers crisp and detailed thermal images in an ultra-compact form factor. Boasting a tiny footprint of 17.3×17.3×23.4 mm (with 9.1mm lens) and an ultra-light weight of 13.7±0.5g, alongside ultra-low power consumption down to 0.5W, this core greatly optimizes system SWaP performance. It supports multiple mainstream video interfaces, diverse data output modes and flexible SDK configuration, enabling effortless integration and secondary development for various miniaturized infrared system applications.

Main Features
  • Unmatched Lightness and Minimal Load
    • Ultra-Miniature Size: 17.3×17.3×23.4 mm (including 9.1 mm lens)
    • Ultra-Lightweight: 13.7±0.5g (including 9.1 mm lens)
    • Ultra-Low Power Consumption: As low as 0.5W
  • Mainstream FPA with Clear Imaging
    • 640x512 Resolution for widespread integration
    • Enhanced Image Clarity: Multiple New-generation image algorithms for improved image quality
  • Easy Development & Seamless Integration
    • Multiple lens options available to suit various application scenarios
    • Supports multiple image output interfaces: DVP8, LVDS, MIPI, USB 2.0, and BT.656
    • RAW/YUV/Matrix-TEMP data output with serial port control
Product Specifications
ModeliTL612Pro
IR Detectors Indicators
Sensitive MaterialVOx
Resolution640×512
Pixel Size12μm
Spectral Response8μm ~ 14μm
Typical NETD≤40mK
Image Processing
Digital Frame Rate25/30Hz/50Hz
Start-up Time≤5s
Digital VideoRAW/YUV/Matrix-TEMP
Image AlgorithmNUC/3DNR/DNS/DRC/EE
Image Display10(Black Hot/White Hot/Pseudo Color)
PC Software
Infrared ModuleModule Control & Video Display
Electrical
Standard External Interface30Pin_HRS interface:DF40C-30DP-0.4V(51)
MIPI External Interface34Pin_Panasonic Connector Interface:AXE634124
Communication InterfaceTTL-232/USB2.0
Digital Video InterfaceDVP8/LVDS/MIPI/USB2.0/BT.656
Supply Voltage4.2-5.5V
Typical Power Consumption0.5W
Temperature Measurement
Operating Temperature-10℃~+50℃
Temperature Measurement Range/
Temperature Measurement Accuracy/
Partial Temperature Measurement/
SDK/
Mechanical
Size (including lens)17.3×17.3×23.4 (9.1mm lens)
17.3×17.3×30.2 (13mm lens)
17.3×17.3×38 (25mm lens)
17.3×17.3×54 (45mm lens)
Weight (including lens)13.7±0.5g (9.1mm lens)
20±0.5g (13mm lens)
27.3±0.5g (25mm lens)
51±0.5g (45mm lens)
Environmental Adaptability
Operating Temperature-40℃~+70℃
Storage Temperature-45℃~+85℃
Humidity5%~95%, non-condensing
VibrationSine Vibration, Frequency: 10HZ～150HZ～10HZ, Peak Value: 0.15mm, Axial Direction: X, Endurance Time: 8min/axis, Cycles: 2 times
ImpactHalf Sine Wave, 30g/11ms, Impact Direction X Axis, 3 times
CertificationROHS2.0/REACH
Optical LensFixed Focus Athermal: 9.1/13/25/45mm
Industrial Applications

The iTL612 Pro thermal imaging module can be used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.

Our Product Line
  • High sensitivity and excellent performance
  • World-leading technology in infrared industry
  • Various infrared detectors available - Both uncooled and cooled IR detectors in different formats and pixel size
  • Volume production to ensure fast delivery - Three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
1. How does uncooled focal plane array microbolometer work?
By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.
2. What's the advantage of uncooled infrared detector?
Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
