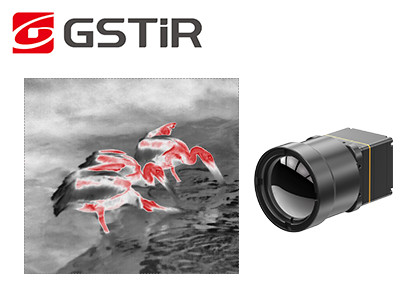

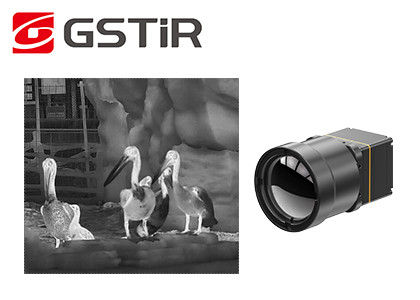

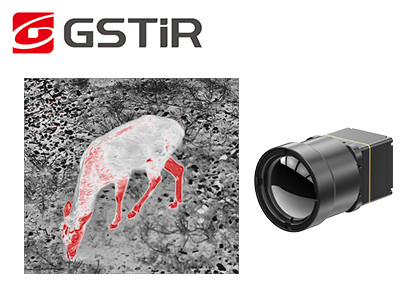

LWIR Infrared Thermal Module with 384x288 Resolution 0.65W Power Consumption and 25Hz/30Hz Frame Rate for Machine Vision
LWIR Infrared Thermal Module with 384x288 Resolution 0.65W Power Consumption and 25Hz/30Hz Frame Rate for Machine Vision
LWIR Infrared Thermal Module with 384x288 Resolution 0.65W Power Consumption and 25Hz/30Hz Frame Rate for Machine Vision
LWIR Infrared Thermal Module with 384x288 Resolution 0.65W Power Consumption and 25Hz/30Hz Frame Rate for Machine Vision
LWIR Infrared Thermal Module with 384x288 Resolution 0.65W Power Consumption and 25Hz/30Hz Frame Rate for Machine Vision
LWIR Infrared Thermal Module with 384x288 Resolution 0.65W Power Consumption and 25Hz/30Hz Frame Rate for Machine Vision
LWIR Infrared Thermal Module with 384x288 Resolution 0.65W Power Consumption and 25Hz/30Hz Frame Rate for Machine Vision
LWIR Infrared Thermal Module with 384x288 Resolution 0.65W Power Consumption and 25Hz/30Hz Frame Rate for Machine Vision
LWIR Infrared Thermal Module with 384x288 Resolution 0.65W Power Consumption and 25Hz/30Hz Frame Rate for Machine Vision
LWIR Infrared Thermal Module with 384x288 Resolution 0.65W Power Consumption and 25Hz/30Hz Frame Rate for Machine Vision
LWIR Infrared Thermal Module with 384x288 Resolution 0.65W Power Consumption and 25Hz/30Hz Frame Rate for Machine Vision
LWIR Infrared Thermal Module with 384x288 Resolution 0.65W Power Consumption and 25Hz/30Hz Frame Rate for Machine Vision
Specifications
Brand Name :
SensorMicro
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Power Consumption :
0.65W
Payment Terms :
T/T
Frame Rate :
25/30/50Hz
Spectral Range :
8~14μm
Pixel Pitch :
17μm
NETD :
≤30mK/F1.0/25℃
Resolution :
384x288
Model Number :
COIN417G3
Description
LWIR Infrared Thermal Module 384x288 25Hz/30Hz for Machine Vision
Product Overview

COIN417G3 integrates a 384×288/17µm uncooled infrared detector with typical NETD ≤30mK. This thermal module features a compact design, lightweight structure, and power consumption as low as 0.65W. Enhanced image algorithms deliver exceptionally smooth thermal imaging.

Tailored for diverse edge vision scenarios, the COIN417G3 wafer-level infrared camera core provides reliable night thermal detection for security monitoring and outdoor border observation. For industrial and machine vision workflows, its high-fidelity RAW data output supports AI thermal defect identification. For automotive ADAS and consumer AIoT devices, ultra-low power consumption extends equipment standby lifespan. Rich expansion interfaces enable seamless integration with all mainstream embedded vision terminals.

Main Features
  • Comprehensive Functionality, Cost-Effective Design
    • Developed using high cost-performance wafer-level packaging detector
    • Integrated with advanced image processing algorithms to enhance image quality
  • Outstanding Performance, Superior Imaging
    • High sensitivity with typical NETD ≤30mK
    • Next-generation image algorithms deliver clearer, sharper thermal images
  • Flexible Extension, Rapid Integration
    • Multiple optical lens options available for diverse application scenarios
    • Supports USB2.0/DVP/LVDS/BT.656 image output interfaces
    • Outputs RAW/YUV image data with serial port control
Product Specifications
Model COIN417G3
IR Detectors Indicators
Sensitive Material VOx
Resolution 384×288
Pixel Size 17μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK/F1.0/25℃
Image Processing
Digital Frame Rate 25/30/50Hz
Start-up Time 6s
Analog Video PAL/NTSC
Digital Video RAW/YUV422
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Suppression (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software
ICC Software Module Control & Video Display
Electrical
Standard External Interface 50Pin: DF40C-50DP-0.4V(51), (HRS,Male)
Extension Board USB3.0/USB2.0/VPC/USB2.0&VPC
Communication Interface TTL-232/USB2.0
Digital Video Interface DVP8/DVP16/USB2.0/BT.656/LVDS
Supply Voltage 4.5~5.5V
Typical Power Consumption 0.65W
Mechanical
Bare Core Size(mm) 25.4mm×25.4mm×16.5mm
Bare Core Weight(g) 16.6±1
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration Random Vibration, 5.35grms, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens
Optical Lens Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm/35mm
Protection Level IP67(Front Lens)
Industrial Applications

The COIN417G3 thermal imaging module is applied in Industrial Vision, Security Monitoring, Firefighting & Rescue, Outdoors, Machine Vision, ADAS, and related fields.

Our Service Approach
Pre-Sales
  • Requirement Analysis
  • Scenario Assessment
  • Product Selection
  • Customized Solutions
Deployment
  • Rapid Delivery
  • System Integration & Testing
  • Technical Training
  • Application Guidance
After-Sales
  • Remote Diagnostics
  • Warranty Service
  • Firmware Upgrades
Frequently Asked Questions
Advantages of T2SL Cooled Infrared Detector

Type II superlattice is primarily used in the fabrication of high-performance infrared focal plane imaging arrays. Based on Type II superlattice materials, the cooled infrared focal plane detector products offer numerous advantages with broad market prospects across various fields:

  • High quantum efficiency, high frame rate, high sensitivity
  • Strong penetration, strong anti-interference
  • All-weather operation
  • Wider response band and higher operating temperature
  • Small dark current, high detection efficiency of long wave/dual color
  • High detection rate, better uniformity, more suitable for large area array devices
