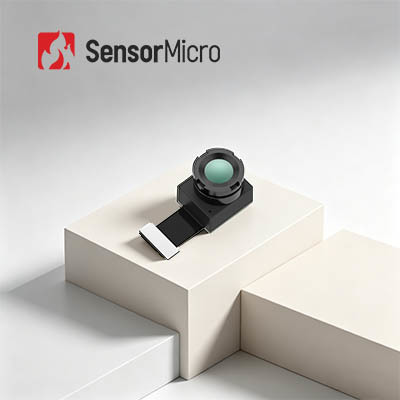

Light Weight LWIR Uncooled Thermal Camera Core with 256x192 Resolution, 12 μm Pixel Size

TIMO212 uncooled IR imaging module, also known as the uncooled thermal module, is one of the TIMO infrared camera module family. It includes an exceptionally small size 256x192 / 12μm wafer level package (WLP) infrared detector that covers long wavelength from 8 to 14 microns.

Thanks to the WLP technology, the TIMO212 thermal camera module achieves super micro structure, ultra low cost expenditure while offers greater sensitivity and superior image quality at an affordable price, enabling the customer to choose the most suitable type according to their own requirements.

Due to its fully optimized structure, TIMO212 thermal camera core is popular and widely used in infrared thermal imaging applications such as Thermography, Epidemic Prevention, Smart Hardware, AIoT etc.

• Ultra-Miniature Module with Ultimate SWaP-C Optimization
  • Wafer-level packaged detector + wafer-level optics + micro-electromagnetic valve shutter
  • The smallest infrared thermal module, enabling basic thermal imaging functionality with maximum cost efficiency
  • Compact size, lightweight, and low power consumption, ideal for integration into miniature devices
• Flexible Optic Options, Accurate Temperature Measurement
  • Multiple lens options available, including wide-angle and telephoto, to meet diverse application needs
  • High-precision temperature measurement with accuracy up to ±2°C; supports both regional and full-frame temperature monitoring
• Easy Integration, Fast Development
  • Supports DVP image interface, compatible with various embedded platforms
  • Compliant with RoHS 2.0 environmental standards

The TIMO212 thermal camera core is widely used in many areas, such as Thermography, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.

• High sensitivity and excellent performance
• World-leading technology in infrared industry
• Various infrared detectors available - Both uncooled and cooled IR detectors in different formats and pixel size
• Volume production to ensure fast delivery - Three production lines with annual production capability up to millions of detectors

Our infrared detectors and thermal camera cores are widely used in many industries such as:

• Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
• Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
• Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
• UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
• Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
• ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
• AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
• Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
