Specifications
NETD :
≤40mK/F1.0/25℃
Pixel Pitch :
12μm
Spectral Range :
8~14μm
Power Consumption :
1.0W
Resolution :
1280x1024
Frame Rate :
30Hz
Brand Name :
SensorMicro
Model Number :
COIN1212
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T
Description

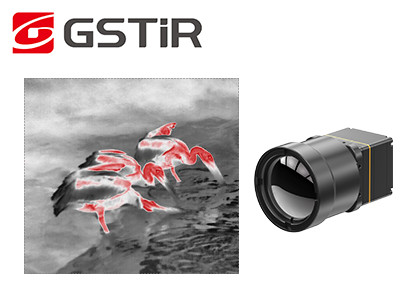

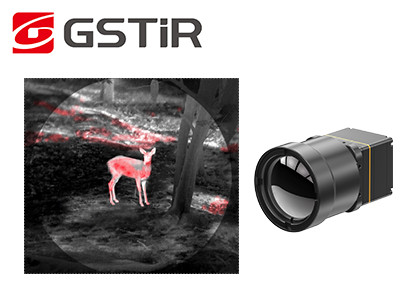

LWIR Uncooled Thermal Camera Core 1280x1024 12μm for Personal Night Vision
Product Overview

The COIN1212 infrared camera core is a tailored high-end thermal imaging solution for multiple key industry scenarios. Its 1280×1024 high-definition 12μm wafer-level detection system enables long-distance wide-range monitoring and short-distance fine detection, perfectly matching the precision requirements of industrial quality inspection and infrastructure safety investigation.

Equipped with complete communication protocols and video output modes, it can be quickly integrated into intelligent transportation systems and scientific research experimental equipment, providing stable, efficient and high-precision thermal imaging support for various high-end scenario applications.

Main Features
  • High-Definition Imaging, Precise Detection: 1280×1024/12μm megapixel resolution enables wide field-of-view and long-range HD imaging. Captures fine target details clearly during close-range observation.
  • Full-Featured and Cost-Effective: Built with an industry-leading large-format wafer-level infrared detector. Integrated with advanced image processing algorithms to enhance image clarity and visual quality.
  • Rapid Integration, Accelerated Development: Supports multiple image output interfaces including DVP and BT.1120. Outputs RAW/YUV image data with serial port control.
Product Specifications
Model COIN1212
IR Detectors Indicators
Sensitive Material VOx
Resolution 1280×1024
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤40mK/F1.0/25℃
Image Processing
Digital Frame Rate 30Hz
Start-up Time 6s
Analog Video /
Digital Video RAW/YUV422
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Suppression (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software
ICC Software Module Control & Video Display
Electrical
Standard External Interface 50pin: DF40C-50DP-0.4V(51), (HRS,Male)
Extension Board USB3.0
Communication Interface TTL-232
Digital Video Interface DVP16/BT.1120/MIPI
Supply Voltage 4.5~5.5V
Typical Power Consumption 1.0W
Mechanical
Bare Core Size(mm) 14mm/19mm/25mm: 25.4mm×25.4mm×19.3mm
35mm/50mm/100m: 35.4mm×35.4mm×17.8mm
Bare Core Weight(g) 14mm/19mm/25mm: 19.7±1g
35mm/50mm/100m: 32.5±1g
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens
Optical Lens Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm/100mm
Protection Level IP67(Front Lens)
Industrial Applications

The COIN1212 thermal imaging module is applied in the field of Key Infrastructure Monitoring, High-end Manufacturing, Industrial Inspection, Scientific Research, and more.

About Us

Focusing on infrared thermal imaging technology, SensorMicro specializes in providing a comprehensive portfolio of core products, including high-performance cooled and uncooled infrared detectors, thermal modules, and infrared cores. These products serve as the "eyes" of thermal perception, empowering a wide range of industries with reliable and efficient infrared solutions.

Frequently Asked Questions
1. Infrared Thermal Module Interface * HDMI

HDMI is short for High Definition Multimedia Interface. It is used to replace the older analog signal AV transmission interface, such as RCA. HDMI is the most widely used digital audio and video interface in the field of infrared thermal imaging consumer electronics, and is also widely used by various infrared camera module products.

There are many versions of the HDMI interface:

  • HDMI standard interface: namely HDMI A-type interface, with a width of 14mm, and it is used for HD TV, desktop computer, projector and other equipment
  • HDMI mini interface: namely HDMI C-type interface, with a width of 10.5mm, and it is used for MP4, tablet computers, cameras and other devices
  • HDMI micro interface: namely the HDMI D-type interface, with a width of 6mm wide, and it is used for smart phones, tablets and other devices.

At present, the infrared thermal module developed by SensorMicro uses the HDMI standard interface.
