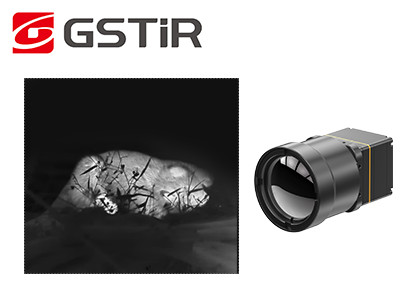

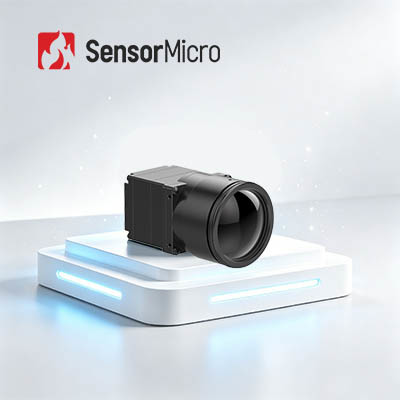

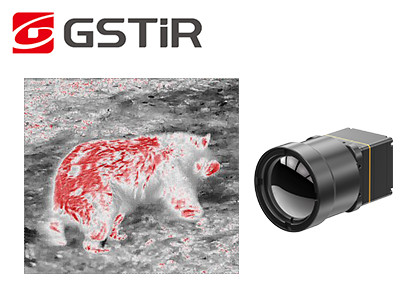

1280×1024 Resolution 12μm Pixel Pitch Infrared Camera Core with USB3.0 Extension Board
1280×1024 Resolution 12μm Pixel Pitch Infrared Camera Core with USB3.0 Extension Board
1280×1024 Resolution 12μm Pixel Pitch Infrared Camera Core with USB3.0 Extension Board
1280×1024 Resolution 12μm Pixel Pitch Infrared Camera Core with USB3.0 Extension Board
1280×1024 Resolution 12μm Pixel Pitch Infrared Camera Core with USB3.0 Extension Board
1280×1024 Resolution 12μm Pixel Pitch Infrared Camera Core with USB3.0 Extension Board
1280×1024 Resolution 12μm Pixel Pitch Infrared Camera Core with USB3.0 Extension Board
1280×1024 Resolution 12μm Pixel Pitch Infrared Camera Core with USB3.0 Extension Board
1280×1024 Resolution 12μm Pixel Pitch Infrared Camera Core with USB3.0 Extension Board
1280×1024 Resolution 12μm Pixel Pitch Infrared Camera Core with USB3.0 Extension Board
1280×1024 Resolution 12μm Pixel Pitch Infrared Camera Core with USB3.0 Extension Board
1280×1024 Resolution 12μm Pixel Pitch Infrared Camera Core with USB3.0 Extension Board
Specifications
Power Consumption :
1.0W
Frame Rate :
30Hz
Extension Board :
USB3.0
Spectral Range :
8~14μm
Resolution :
1280×1024
Brand Name :
SensorMicro
Model Number :
COIN1212
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T
Pixel Pitch :
12μm
Description
1280×1024 12μm Infrared Camera Core with 35/50/100mm Lens
Product Overview

Designed for rigorous industrial and continuous operating environments, the COIN1212 infrared camera core features a robust 1280×1024 12μm wafer-level infrared detector and highly stable signal processing circuits. Optimized professional imaging algorithms ensure consistent and clear thermal image output in complex working conditions, while fast and precise hotspot detection guarantees operational safety monitoring. With versatile interface compatibility and full optical lens adaptability, the highly integrated module delivers long-term stable operation, serving as a dependable core component for industrial manufacturing inspection, key infrastructure operation monitoring and intelligent industrial perception systems.

Main Features
High-Definition Imaging, Precise Detection
  • 1280×1024/12μm megapixel resolution enables wide field-of-view and long-range HD imaging
  • Captures fine target details clearly during close-range observation
Full-Featured and Cost-Effective
  • Built with an industry-leading large-format wafer-level infrared detector
  • Integrated with advanced image processing algorithms to enhance image clarity and visual quality
Rapid Integration, Accelerated Development
  • Supports multiple image output interfaces including DVP and BT.1120
  • Outputs RAW/YUV image data with serial port control
Product Specifications
Model COIN1212
IR Detectors Indicators
Sensitive Material VOx
Resolution 1280×1024
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤40mK/F1.0/25℃
Image Processing
Digital Frame Rate 30Hz
Start-up Time 6s
Analog Video /
Digital Video RAW/YUV422
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Suppression (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software
ICC Software Module Control & Video Display
Electrical
Standard External Interface 50pin: DF40C-50DP-0.4V(51), (HRS,Male)
Extension Board USB3.0
Communication Interface TTL-232
Digital Video Interface DVP16/BT.1120/MIPI
Supply Voltage 4.5~5.5V
Typical Power Consumption 1.0W
Mechanical
Bare Core Size(mm) 14mm/19mm/25mm: 25.4mm×25.4mm×19.3mm
35mm/50mm/100m: 35.4mm×35.4mm×17.8mm
Bare Core Weight(g) 14mm/19mm/25mm: 19.7±1g
35mm/50mm/100m: 32.5±1g
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens
Optical Lens Fixed Focus Athermal: 14mm/19mm/25mm/35mm/50mm/100mm
Protection Level IP67(Front Lens)
Industrial Applications

The COIN1212 thermal imaging module is applied in the field of Key Infrastructure Monitoring, High-end Manufacturing, Industrial Inspection, Scientific Research etc.

Our Product Line
  • High sensitivity and excellent performance
  • World-leading technology in infrared industry
  • Various infrared detectors available - Both uncooled and cooled IR detectors in different formats and pixel size
  • Volume production to ensure fast delivery - Three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
1. Why do infrared thermal imagers perform better at night?
Infrared thermal cameras typically perform better at night, but this is independent of the brightness and darkness of the surrounding environment. It is because the ambient temperature at night is much lower than during the day, thermal imaging sensors can display warm areas with high contrast.
2. Thermal Imaging Frame Rate
The frame rate of infrared thermal imager represents the photographic time density of the thermal imager video, which can be used to indicate the speed of thermal imager photography. The concept of frame rate of infrared thermal imager is how many pictures can output per unit time in the video process. The number of output pictures only represents the output time density. For example, 30Hz represents 30 pictures output per second and 60Hz represents 60 pictures output per second. Although the total number of output pictures in one second is different, it doesn't mean that moving objects (such as cars in progress) that can't be captured at 30Hz can be captured at 60Hz.
