Specifications
Brand Name :
Kaishan
Model Number :
ZT10
Certification :
CE
Place of Origin :
Zhejiang China
MOQ :
1
Price :
$105000-$120000/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100
Delivery Time :
25-35 work days
Packaging Details :
Directly fixed in container
Description

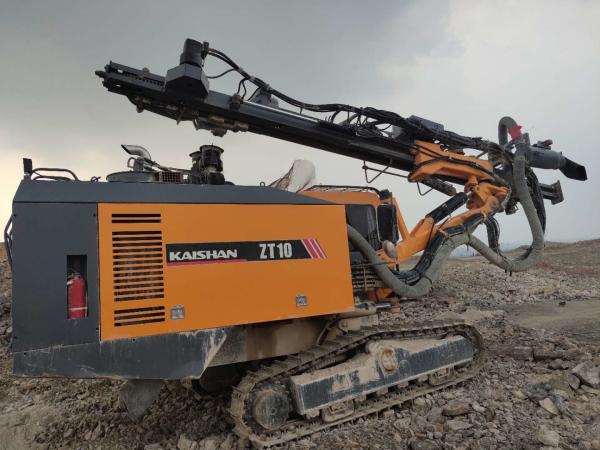

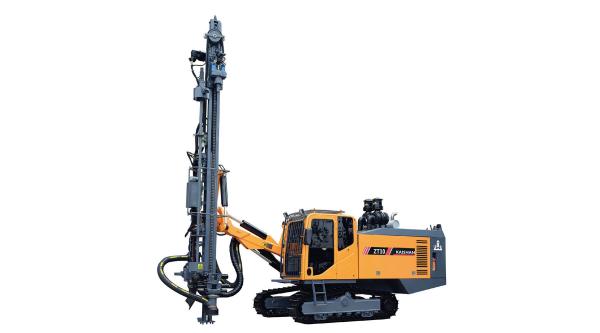

ZT10 Integrated Down the hole Drill Rig for Open Use

Product information
model name ZT10
dimension 9230*2360*3260mm
weight 15000kg
rock hardness f=6-20
drilling diameter 105-130mm
ground clearance 430mm
leveling angle of track ±10°
travelling speed 0-3km/h
climbing capacity 25°
traction 120KN
max rotary torque 2800N.m(Max)
rotation speed 0-120rpm
lifting angle of drill boom Up47, down20
swing angle of drill boom Left20, right50
swing angle of carriage Left95, right95
tilt angle of beam 114
compensation stroke 1354mm
rotation head stroke 4490mm
max propelling force 25KN
method of propulsion Moter+roller chain
depth of economical drilling 32m
number of rods 7+1
specifications of drilling rod φ76*400mm
DTH hammer k40
engine Yuchai YC6L310+H300
rated power 228KW
rated revolving speed 2200r/min
screw air compressor Zhejiang Kaishan
air delivery 18m³/min
Discharge pressure 17bar
travelling control system Hydraulic pilot
drilling control system Hydraulic pilot
Anti-Jamming Automatic electro-hydraulic anti-jamming
Voltage 24V24V DC
safe cab Meet the requirements of ROPS&FOPS
indoor noise 85dB(A)/ Below 85dB(A)
seat Adjustable
air-conditioning Standard temperature
entertainment Radio
