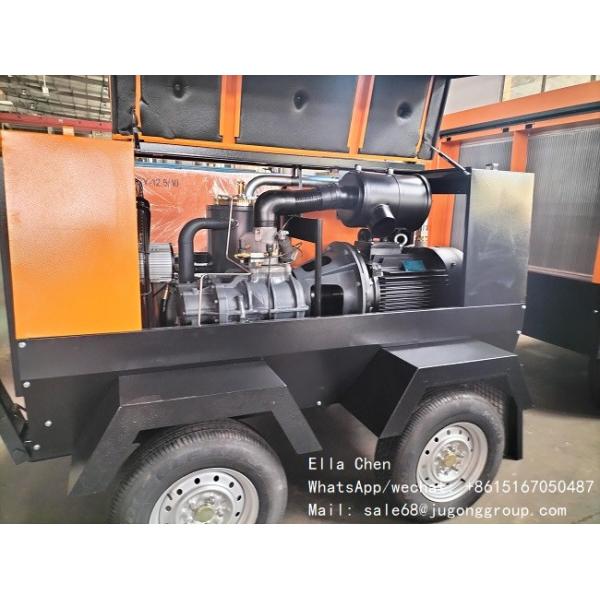

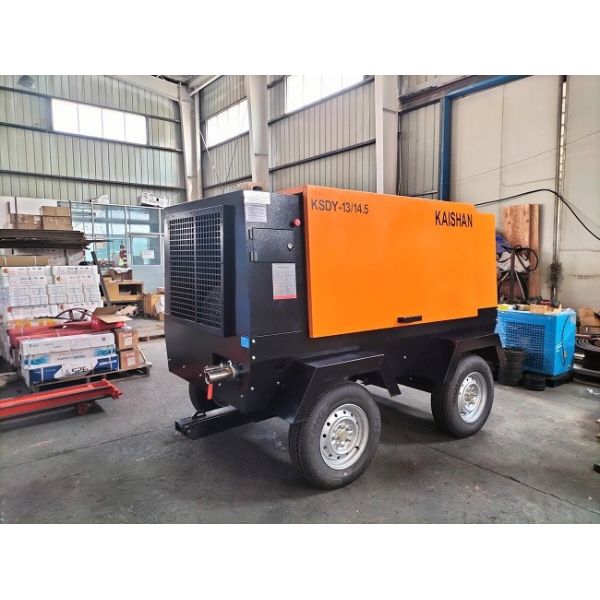

10 Bar Electric Portable Screw Air Compressor For Construction Works
10 Bar Electric Portable Screw Air Compressor For Construction Works
10 Bar Electric Portable Screw Air Compressor For Construction Works
10 Bar Electric Portable Screw Air Compressor For Construction Works
10 Bar Electric Portable Screw Air Compressor For Construction Works
10 Bar Electric Portable Screw Air Compressor For Construction Works
10 Bar Electric Portable Screw Air Compressor For Construction Works
10 Bar Electric Portable Screw Air Compressor For Construction Works
10 Bar Electric Portable Screw Air Compressor For Construction Works
10 Bar Electric Portable Screw Air Compressor For Construction Works
Specifications
Brand Name :
China
Model Number :
KSDY-12.5/10
Certification :
ISO，CE
Place of Origin :
China
MOQ :
≥1sets
Price :
USD7000-7500/sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 Unit/Units per Month diesel air compressor
Delivery Time :
About 20 days
Packaging Details :
1.The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. 2.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
Weight :
1550KG
Configuration :
Portable
Warranty :
1 Year for machinery warranty，1 Year for Core Components
Motor power :
75KW 100HP electric portable air compressor
Capacity :
12.5m³/min
Pressure :
1.0Mpa / 145 psi
Dimension(l*w*h) :
3240*1760*1785
Voltage :
380v/3ph/50hz(or Customized)
Type :
Screw,Rotary
Power source :
AC Power
Description

10 bar electric power easy move portable screw air compressor for construction works

The mian engine of the screw air compressor consists of rotor, cylinder,bearing and shaft seal. The efficiency of the screw air compressor depends on the rotor,also the life of the screw air compressor depends on the bearing and the shaft seal.Only Silk can produce a whole pedigree of rotor in the world and the diameter of 220kw rotor can reach 386cm. The bearing of screw air coompressor generally use SKF ,and low speed,the bearing no extra force the worklife of the screw air compressor will be longer Silk compressor's rotor is direct driven,no speed gear,lower speed,higher eficiency.So the worklife of Silk compressor is longer than other brand compressor. Silk compressor can continue to provide stable and eflcient power for the mechanical equipment and support the equipment at g high speed and stability.

THE DESIGN FEATURES OF KADY ELECTRIC AIR COMPRESSOR

1. Our single-stage rotary screw airend and rotor is large which allows for bigger bearings, 30%~50% slower rotor speeds results in less power consumption or noise or maintenance cost.

2. One piece bearing housing ensures both rotors are held by the bearings in proper alignment during transient periods such as machine startups/shutdowns or load changes.

3. All of our air compressors have the latest inlet valve, airend air discharge port and oil inlet port design.

4. Lower sound emission level than most of our competitors results in less sound pollution.

5. The axial and rotational loading are supported by different bearings for better stiffness and less transition noise.

6. Simple package design requires only minimum maintenance for optimum performance. Continuous cooling and circulation of lubrication oil, ensures long airend operation life.

Model Working pressure
(Mpa)		 Capacity
m3/min		 Power
(KW)		 Outlet Weight
(kg)		 Dimension
(mm)

KSDY-13.6/8

(2 wheels)

 0.8 13.6 75 G3/4*1
G11/2*1 		1750 2700*1700*1700

KSDY- 12.5/10

(4 wheels)

 1 12.5 1750 2700*1700*1700

KSDY-10/14.5

(2 wheels)

 1.45 10 1600 2820*1525*1700

KSDY-16.5/8

(4 wheels)

 0.8 16.5 90 G3/4*1
G2*1		 1940 2730*1680*1800

KSDY-13/14.5

(2 wheels)

 1.45 13 1760 3020*1670*1850

KSDY-13/14.5

(4 wheels)

 1.45 13 1910 2730*1680*1800

KSDY-20/8

(4 wheels)

 0.8 20 110 3115 3065*1835*2000

KSDY-24/8

(4 wheels)

 0.8 24 132 3150 3065*1835*2000

KSDY-18/13

(4 wheels)

 1.3 18 132-2 3070 3065*1835*2000

KSDY-15/17

(4 wheels)

 1.7 15 2975 3065*1835*2000

KSDY-20/18-II

(two stage compression)

 1.8 20 132-4 3800 3445*1600*2030

KSDY-17/17

(4 wheels)

 1.7 17 3500 3445*1600*2030

KSDY-20/17

(4 wheels)

 1.7 20 160-2 4100 3545*1820*2320

KSDY24/14

(4 wheels)

 1.4 24 185-2 3900 3545*1820*2320

10 Bar Electric Portable Screw Air Compressor For Construction Works10 Bar Electric Portable Screw Air Compressor For Construction Works
