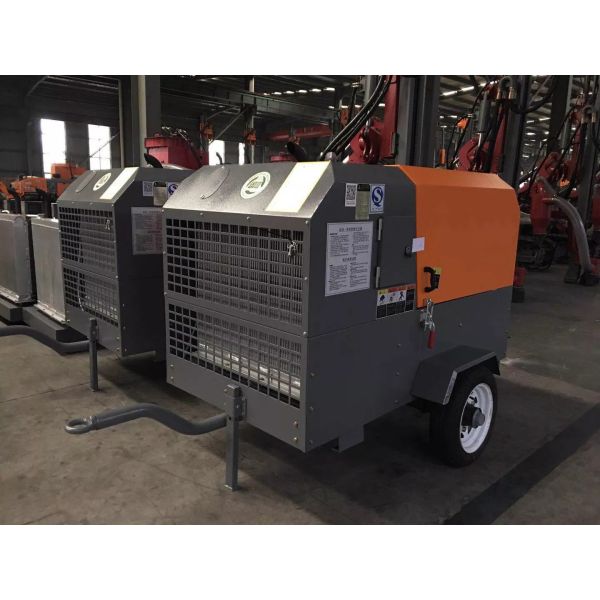

7 Bar 37 Kw 50HP Diesel Mobile Air Compressor For Mining / Building Site
7 Bar 37 Kw 50HP Diesel Mobile Air Compressor For Mining / Building Site
7 Bar 37 Kw 50HP Diesel Mobile Air Compressor For Mining / Building Site
7 Bar 37 Kw 50HP Diesel Mobile Air Compressor For Mining / Building Site
7 Bar 37 Kw 50HP Diesel Mobile Air Compressor For Mining / Building Site
7 Bar 37 Kw 50HP Diesel Mobile Air Compressor For Mining / Building Site
Specifications
Brand Name :
China
Model Number :
40SCY
Certification :
CE
Place of Origin :
zhejiang, China
MOQ :
1
Price :
$5000-7000/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 sets per month
Delivery Time :
7days after received the payment
Packaging Details :
wooden package/as customer requirements
Type :
diesel screw air compressor
Configuration: :
portable
Power Source :
AC power
Lubrication Style :
Oil lubricanted
Voltage :
Diesel Engine Driven
Condition :
New
Diesel engine :
37kw/50hp
Application :
Pneumatic machine,Machinery Industry,Sandblast Heavy Duty Industries,Instruments,Mine
Description

Small Diesel Mobile 40SCY 7 Bar 37 Kw 50HP Air Compressor For Mining / Building Site

Main Features:
1 Air-end:
Professional customized two stage screw air-end.
Perfect pressure option, larger F.A.D.
Lower energy consumption, longer life.
Lower maintenance cost.

2 Lubricating oil filtration system of compressor:
Imported oil filters and imported thermostatic valve component set for excellent quality.
Stable performance of lubricating oil system.

3 Full opening doors on both Left & right side:
Larger operating space.
Easy service access and high efficiency for time saving.
Used oil or coolant drained from centralized chassis point for environment protection.
Reinforced heavy duty & durable undercarriage design.

4 Outlet valve component set:
Excellent quality air outlet valves of 2 inch & 1 1/2 inch.
Meeting daily air requirement of all situations.

5 International Famous brand diesel engine:
Top of the line manufacturing process,reliable & durable.
More powerful engine with fuel adaptability.
More powerful and better responding in lower speed.
Integrated design with less failure rate and for easy maintenance.
Excellent reliability and lower fuel consumption.


Usage
It has wide range of usages,such as broke road construction, clean and wipe off road markings, kinds of trench excavation, kinds of mine prospecting (including underground operations, non-explosion-proof), auxiliary works for various construction site foundation pits, etc., can be used as independent gas supply units for related equipment.

Model 40SCY/7
Name Diesel screw compressor
Rated Air Displacement 4.5m³/min
Rated pressure 7bar
Volume of compressed oil 16L
Volume of air tank 16L
Stage of compress 1
Cooling method Water cooling
Noise 80±5 dB(A)
Diesel Engine Data
Manufacturer Xichai
Model 4DW91-50GBG3U-YM10
Working rotate speed 2500RPM
Power 37KW
Volume of lubricating oil 6L
Volume of fuel tank 65L
Whole machine size & weight
40SCY-7
Length(mm) 2400
Width(mm) 1330
Height(mm) 1550
Weight(kg) 860
Exhaust valve size G1"

Advantages:

1. We are the only manufacturer in china which is able to mass produce the motor powered and diesel powered portable screw air compressor, breaking the monopoly of foreign brand in the screw air compressor.

2. Good adaptability: automatically control the air delivery of diesel engine by matching the demand of air consumption, which equal to frequency conversion control in motor power screw air compressor

3. Operation parameter is straightforward, with multiple warning and shut down.
