1.7Mpa 18m³/Min Diesel Screw Air Compressor For Deep Well 220HP
1.7Mpa 18m³/Min Diesel Screw Air Compressor For Deep Well 220HP
1.7Mpa 18m³/Min Diesel Screw Air Compressor For Deep Well 220HP
1.7Mpa 18m³/Min Diesel Screw Air Compressor For Deep Well 220HP
1.7Mpa 18m³/Min Diesel Screw Air Compressor For Deep Well 220HP
1.7Mpa 18m³/Min Diesel Screw Air Compressor For Deep Well 220HP
1.7Mpa 18m³/Min Diesel Screw Air Compressor For Deep Well 220HP
1.7Mpa 18m³/Min Diesel Screw Air Compressor For Deep Well 220HP
Specifications
Brand Name :
Kaishan
Model Number :
KSZJ-18/17A
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
≥1SETS
Price :
USD15000-60000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 Set/Sets per Month Screw Compressor
Delivery Time :
10-20Days
Packaging Details :
Water Well Drilling Rig With Diesel Screw Air Compressor for sale Packing Details: 1.Inner package:Stretch film 2.Outside package:Standard export wooden cases 3.Or as your requirements
Weight :
2400KG
Working pressure :
1.7Mpa
Capacity :
18m³/min
Diesel engine :
Yuchai ： 2200HP
Dimension(l*w*h) :
3000*1520*2000
Description
Quick Details
Main machine: SKY170L-16 (SKY)
Motor:YC6A260L-T20(Yuchai)
Intake valve:HDKG85-A
Minimum pressure valve:MPV-50A(Hongxing)
Temperature control valve:TV11/4-82℃(Hoerbiger)
Solenoid valve:NT093E-GNT(AirTAC)
Servo cylinder:ZBED40
Emptying valve:VVF15NO
Inverse proportion valve:PRNE(Hoerbiger)
Flexible coupling:CF-A-140-E-S(CENTA)
Safety valve:DN40-1.88MPa (Yongyi)
Air filter:A797 (Fuliejia)
Oil filter assembly:WD13145 (Mann)
Air Oil separation core:55 220 300 410(Chaolv)
Monitoring meter:JCD-900 (Jichao)

1.7Mpa 18m³/Min Diesel Screw Air Compressor For Deep Well 220HP

Product model Pressure(Mpa) Capacity(m³/min) Motor power(HP) Exhaust interface Weight(KG) Dimension(mm)
KSZJ-15/15 1.5 15 Yuchai:190HP G2*1,G3/4*1 2100 2600*1520*1800
KSZJ-18/17A 1.7 18 Yuchai:220HP G2*1,G3/4*1 2400 3000*1520*2000
KSZJ-18/18 1.8 18 Yuchai:260HP G2*1,G3/4*1 2700 3000*1520*2000

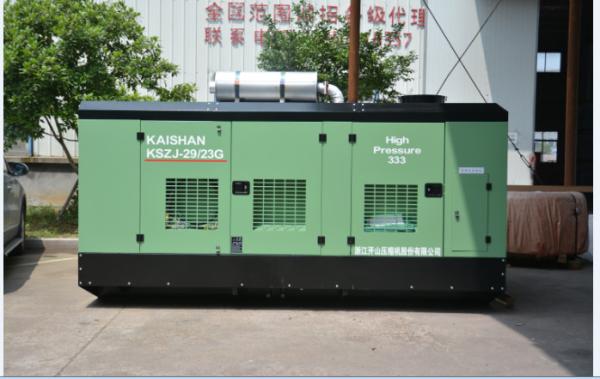

KSZJ-29/23G 2.3 29 Yuchai:400HP G2*1,G3/4*1 4050 3500*1950*2030
KSZJ-29/23-32/17 1.7-2.3 29-32 Yuchai:400HP G2*1,G3/4*1 4050 3500*1950*2030
KSZJ-35/30-38/25 2.5-3.0 35-38 Cummins:550HP G2*1,G3/4*1 5400 3500*2160*2500

1.7Mpa 18m³/Min Diesel Screw Air Compressor For Deep Well 220HP

1.7Mpa 18m³/Min Diesel Screw Air Compressor For Deep Well 220HP
