High efficiency diesel piston air compressor for YT24 Air Leg jack hammer
High efficiency diesel piston air compressor for YT24 Air Leg jack hammer
High efficiency diesel piston air compressor for YT24 Air Leg jack hammer
High efficiency diesel piston air compressor for YT24 Air Leg jack hammer
High efficiency diesel piston air compressor for YT24 Air Leg jack hammer
High efficiency diesel piston air compressor for YT24 Air Leg jack hammer
Specifications
Brand Name :
kaishan
Model Number :
W-3/5
Certification :
ISO9001-2008
Place of Origin :
Zhejiang of China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000sets per month
Delivery Time :
7days after receiving
Packaging Details :
wooden package/as customer requirements
Price :
$1000-1300/ set
Type :
Piston
Configuration: :
Portable
Power Source :
AC power， diesel engine
Lubrication Style :
Lubricant
Working pressure :
5 bar
Description

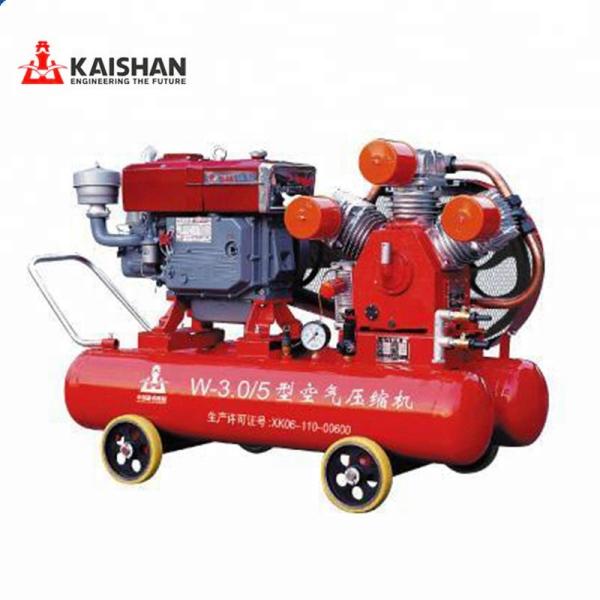

S1115 Diesel Engine For Portable Diesel Mining Piston Air Compressor W-3/5

Industrial Piston Air Compressor/Mining Air Compressor W-3/5

1.> Specification

Capacity 3.0 (m3/min)
Working Pressure 0.5 Mpa
Cylinder 125mmx3
Air Tank 220L
Dimension 180mmx90mmx130mm
Weight 600kg

High efficiency diesel piston air compressor for YT24 Air Leg jack hammer

2.> Features

a) Value plate and spring strip: made of special steel from Sweden and after special treatment; high efficient and reliable.

b) Piston ring: special design; integral casting; excellent flexibility; lowest lubricating oil consumption.

c) Cylinder: made of boron cast iron; wear resistant; special suitable for dust condition.

d) Cylinder cover: extrusion process adopted; streamlined external appearance; good heat emission performance.

e) Crankshaft: made from ductile cast iron; rare magnesium alloy after heat treatment and surface quenching; excellent performance.

f) Simple structure, light weight, easy to move.

The Related Piston Air Compressor:

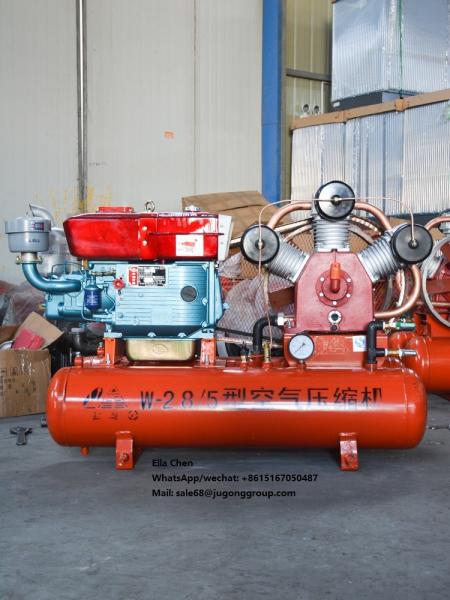

Model Number W1.8/5 W2.85/5 W3.0/5 W-3.5/5
Cylinder cylinder . mm 100x3 115x3 120x3 125×100×3
Rated speed rpm 1000 1070 1070 1070
Air capacity m3/min 1.8 2.85 3 3.5
cfm 63.6 101 106 123.55
Work pressure Mpa 0.5 0.5 0.5 0.5
psig 73 73 73 73
Volume of Tank L 130 160 200 200
Diesel Engine S1100(15HP) S1110(18HP) S1115(22HP) ZS1120 (24HP)
N.W kg 325 465 530 535
G.W kg 365 515 590 585
Package Size (L×W×H) mm 1540×640×1030 1710×860×1215 1710×860×1245 1690×840×1150m

W-3/5 Diesel Driven Piston Air Compressor for YT24 Air Leg Jack Hammer :

1.The rock drill is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.

2.It’s suitable for drilling of horizontal or inclined holes on the medium-hard and hard rock. When it’s matched with air leg Model FT140B, it can blast holes from different directions and angles.

3. Blast hole diameter is between 36mm and 42mm. with an efficient depth from 1.5m to 2m.

Main Specification for YO18 Hand Held Jack Hammer:

tem Name YT24 drill
Weight 24kg
Overall dimensions 678mm
Stoke 70mm
Cylinder Dia 70 mm
Air pressure 0.4-0.63mpa
Water pressure 0.2-03mpa
Impact frequency >31Hz
Air consumption 66.7L/S
Drilling speed 250mm
Max drilling depth >6m
Air pipe inside dia 19mm
Water pipe inside dia 13mm
Drill bit size 32-42mm
Drilll rod size H22X108mm

High efficiency diesel piston air compressor for YT24 Air Leg jack hammer
