Piston Air Compressor For Pneumatic Tools
Piston Air Compressor For Pneumatic Tools
Piston Air Compressor For Pneumatic Tools
Piston Air Compressor For Pneumatic Tools
Specifications
Brand Name :
kaishan
Model Number :
W-1.8/7
Certification :
ISO9001-2008
Place of Origin :
zhejiang of China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000sets per month
Delivery Time :
7days after receiving
Packaging Details :
wooden package/as customer requirements
Type :
PISTON
Configuration: :
portable
Power Source :
AC power， diesel engine
Lubrication Style :
lubricant
Description

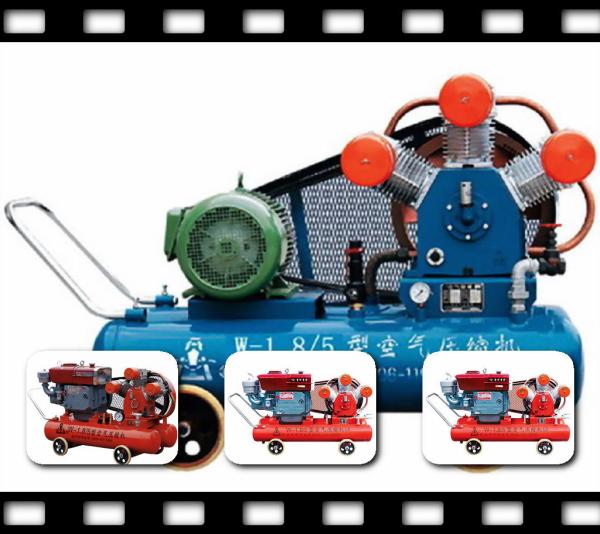

W1.8/7 Electric Double Tank Piston Air Compressor

Place of Origin:

Zhejiang China (Mainland)

Brand Name:

Kaishan

Model Number:

W-1.8/7

Power Source

Diesel or Electrical

feature:

compressor with tank

Lubrication Style

Lubricated

Configuration:

Portable

Minimum Order Quantity:

1

Packaging Details:

Wooden case

Delivery Time:

7-15 days after received your payment

Payment Terms:

CIF FOB L/C AND SO ON

Certificate

ISO

Quick Detail:

Model

W1.8/7

Cylinder no.×diameter

mm

3×100

Rotating speed

rpm

1100

Airflow volume

m /min

1.8

cfm

63.6

Discharge pressure

Mpa

0.7

psig

102

Air tank capacity

L

130

Equipped power

11kw motor

N.W

kg

389

G.W

kg

434

Package size (L×W×H)

mm

1500×765×1000

Description:

a) Value plate and spring strip: made of special steel from Sweden and after special treatment; high efficient and reliable.

b) Piston ring: special design; integral casting; excellent flexibility; lowest lubricating oil consumption.

c) Cylinder: made of boron cast iron; wear resistant; special suitable for dust condition.

d) Cylinder cover: extrusion process adopted; streamlined external appearance; good heat emission performance.

e) Crankshaft: made from ductile cast iron; rare magnesium alloy after heat treatment and surface quenching; excellent performance.

f) Simple structure,light weight, easy to move.

g) Easy operating and maintenance.

h) Energy saving and loew cost.

Applications:

Our small air compressor are mainly used to supplys table and clean compressed air to the pneumatic tools and keep them working smoothly and efficiently.

Specifications:

Mining and engineering with parameters of piston type air compressor

Model

Matched engine

(kW)

Air delivery

(m3/min)

Working pressure

(Mpa)

Overall size

(L×W×H)mm

W-1.8/5-D

11

1.8

0.5

1700×710×1000

W-1.8/5

S1100

1.8

0.5

1700×710×1000

W-2/5-D

11

2

0.5

1700×810×1050

W-2/5

S1100

2

0.5

1700×810×1050

W-2.6/5-D

15

2.6

0.5

1780×870×1235

W-2.6/5

S1110

2.6

0.5

1780×870×1235

W-2.8/5-D

15

2.8

0.5

1780×870×1235

W-2.8/5

S1110

2.8

0.5

1780×870×1235

W-3/5-D

18.5

3

0.5

1800×900×1300

W-3/5

S1115

3

0.5

1800×900×1300

2V-3.5/5-D

18.5

3.5

0.5

1800×950×1300

2V-3.5/5

S1125

3.5

0.5

1800×950×1300

2V-4/5-D

18.5

4

0.5

1800×950×1300

2V-4/5

S1125

4

0.5

1800×950×1300

W-1.8/7-D

11

1.8

0.7

1100×820×1100

W-1.8/7

S1100

1.8

0.7

1100×820×1100

W-2.6/7-D

15

2.6

0.7

1800×870×1235

W-2.6/7

S1115

2.6

0.7

1800×870×1235

W-3.2/7-D

18.5

3.2

0.7

1920×960×1350

W-3.2/7

S1125

0.7

0.7

1920×960×1350

Competitive Advantage:

1. High quality control(ISO 9001-2000)
2. Fast Delivery( 15-35 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)

cooperation terms:

1) Delivery time :within 30days after receiving your advance payment

2) Payment terms:T/T 50% in advance ,the balance should be paid within 5days against the B/L date

3) Package:1,plywood cases suitable for sea transportation 2,Fumigation-free wooden cases 3,simple package

4) Air compressor HS CODE:8414809090


5) Quality Guarantee:12 months from delivery date(quick-wear part except)


6) After-sale service:For warranty repair/ replacement, user should send defective items back then supplier re-supply the same to user whin assurance period for free(user in charge of freight fee

Mineral air compressor,piston air compressor ,diesel engine air compressor,small air compressor,1.8³ air compressor,5bar air compressor,air compressor for pneumatic tools,
