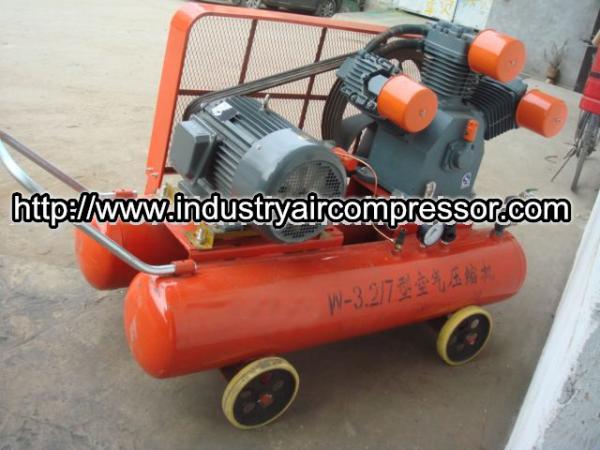

Light weight silent mining air compressor piston type 3.2m³/min 7bar 25HP
Light weight silent mining air compressor piston type 3.2m³/min 7bar 25HP
Specifications
Brand Name :
kaishan
Model Number :
W-3.2/7D
Certification :
ISO9001-2008
Place of Origin :
zhejiang of China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000sets per month
Delivery Time :
7days after receiving
Packaging Details :
wooden package/as customer requirements
Type :
PISTON
Configuration: :
portable
Power Source :
AC power， diesel engine
Lubrication Style :
lubricant
Description

small mineral piston air compressor for pnematic tools W-3.2/7D 3.2m³/min 7bar

Air Compressor for Mining/Piston Air Compressor W-3.2/7


Specification

Model


W-3.2/7


W-3.2/7-D


Exhaust Volume (m³/min)


3.2


3.0


Exhaust Pressure(Mpa)


0.7


0.7


Cylinder (DiaxQty)


125*3


125*3


Diesel Engine /Motor (KW/HP)


S1130 Engine,25HP


18.5/25


Volume of Gas Storage tank(L)


230


230


Diemension(LXWXH)MM


1960*900*1250


1960*900*1250


Weight (Kg)


550

550


Features

a) Value plate and spring strip: made of special steel from Sweden and after special treatment; high efficient and reliable.
b) Piston ring: special design; integral casting; excellent flexibility; lowest lubricating oil consumption.
c) Cylinder: made of boron cast iron; wear resistant; special suitable for dust condition.
d) Cylinder cover: extrusion process adopted; streamlined external appearance; good heat emission performance.
e) Crankshaft: made from ductile cast iron; rare magnesium alloy after heat treatment and surface quenching; excellent performance.
f) Simple structure, light weight, easy to move


Specifications:

Mining and engineering with parameters of piston type air compressor

Model

Matched engine
(kW)

Air delivery
(m3/min)

Working pressure
(Mpa)

Overall size
(L×W×H)mm

W-1.8/5-D

11

1.8

0.5

1700×710×1000

W-1.8/5

S1100

1.8

0.5

1700×710×1000

W-2/5-D

11

2

0.5

1700×810×1050

W-2/5

S1100

2

0.5

1700×810×1050

W-2.6/5-D

15

2.6

0.5

1780×870×1235

W-2.6/5

S1110

2.6

0.5

1780×870×1235

W-2.8/5-D

15

2.8

0.5

1780×870×1235

W-2.8/5

S1110

2.8

0.5

1780×870×1235

W-3/5-D

18.5

3

0.5

1800×900×1300

W-3/5

S1115

3

0.5

1800×900×1300

2V-3.5/5-D

18.5

3.5

0.5

1800×950×1300

2V-3.5/5

S1125

3.5

0.5

1800×950×1300

2V-4/5-D

18.5

4

0.5

1800×950×1300

2V-4/5

S1125

4

0.5

1800×950×1300

W-1.8/7-D

11

1.8

0.7

1100×820×1100

W-1.8/7

S1100

1.8

0.7

1100×820×1100

W-2.6/7-D

15

2.6

0.7

1800×870×1235

W-2.6/7

S1115

2.6

0.7

1800×870×1235

W-3.2/7-D

18.5

3.2

0.7

1920×960×1350

W-3.2/7

S1125

0.7

0.7

1920×960×1350




Mineral air compressor,piston air compressor ,diesel engine air compressor,small air compressor,

1.8³ air compressor,5bar air compressor,air compressor for pneumatic tools,
