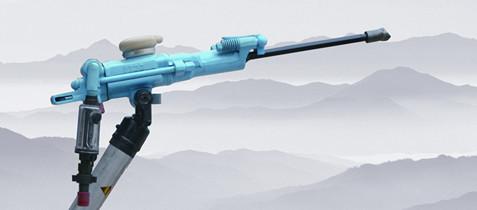

High efficiency pneumatic rock drill air leg / portable mine drilling rig YT23D
High efficiency pneumatic rock drill air leg / portable mine drilling rig YT23D
Specifications
Brand Name :
KAISHAN
Model Number :
YT23D
Certification :
ISO9001-2008
Place of Origin :
ZHEJAING China
MOQ :
2
Delivery Time :
7days after receive the downpayments
Packaging Details :
wooden package
color :
silver
working way :
hand held
drilling bit :
36/38/40/42
weight :
18kg
Description

Pneumatic Tools YT23D air leg Rock Drilling 668 mm 26kg Kaishan famous brand factory offer

pneumatic rock drilling machine YT23D(7655D)

Specifications:

jack hammer

Model

YO18

Y18P

Y19A

YO20

Y26

Weight(kg)

18

18

19

20

26

Length(mm)

550

550

600

561

650

Cylinder size*trip(mm)

58*45

58*45

65*54

63*55

65*70

Working pressure(Mpa)

0.35-0.63

Impact frequency(Hz)

≥32

≥30

≥28

≥33

≥23

Impact energy(J)

≥22

≥22

≥28

≥26

≥30

Air consumption(m3/min)

≤20

≤24

≤37

≤33

≤47

Place of Origin:

ZHEJIANG QUZHOU CHINA

Brand Name:

KAISHAN

Model Number:

YT23D

Certification:

ISO9001

Minimum Order Quantity:

1

Price:

Packaging Details:

CARTON

Delivery Time:

7DAYS AFTER GOT THE 30%DOWNPAYMENT

Payment Terms:

FOB,CIF,LC AND SO ON

Supply Ability:

1500SETS PER MONTH

Quick Detail:

Model

7655(YT23)

Weight (kg)

24

Outside length (mm)

668

Cylinder diameter (mm)

70

Piston stroke (mm)

70

Working air pressure (Mpa)

0.4-0.63

Working water pressure (Mpa)

0.2-0.3

Impact energy (J)

≥45J

Impact Frequency (HZ)

≥28HZ

Air consumption (L/S)

≤38L/S

Size of air hose (mm)

19

Size of water hose (mm)

13

Borehole diameter (mm)

34-42mm

Drilling depth (m)

5m

Size of shank (mm)

H22*108

Description:
This product is widely used in metallurgy, coal industry, road construction, mining and other drilling operations.
· Hand-hold rock drill, hand hammer drilllow weight,reasonable structure,handy use and little air consumption.
· 6 hand-hold rock drill is a tool for the secondary blasting in quarry and especailly for rocking 20mm hose in marble and granite,it has characteristic of low weight,reasonable structure,handy use and little air consumption


Competitive Advantage:

1). save energy and high efficiency
2). strong impact energy
3). low vibration
4). easy handling
5). low noise
6). wet drilling
7). easy cleaning air /water holes
8). spare parts easily purchasing
