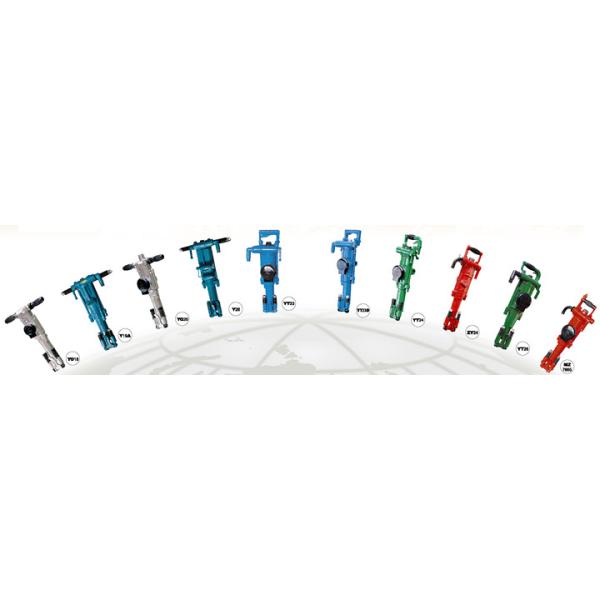

Light weight high speed pneumatic air pick hammer rock drill 561mm 20kg
Light weight high speed pneumatic air pick hammer rock drill 561mm 20kg
Light weight high speed pneumatic air pick hammer rock drill 561mm 20kg
Light weight high speed pneumatic air pick hammer rock drill 561mm 20kg
Specifications
Brand Name :
KAISHAN
Model Number :
YO20
Certification :
ISO9001-2008
Place of Origin :
ZHEJAING China
MOQ :
2
Delivery Time :
7days after receive the downpayments
Packaging Details :
wooden package
color :
silver
working way :
hand held
drilling bit :
36/38/40/42
weight :
18kg
Description

Pneumatic Tools YO20 Hand-hold Rock Drilling 561mm 20kg Kaishan famous brand factory offer

Specifications:

jack hammer

Model

YO18

Y18P

Y19A

YO20

Y26

Weight(kg)

18

18

19

20

26

Length(mm)

550

550

600

561

650

Cylinder size*trip(mm)

58*45

58*45

65*54

63*55

65*70

Working pressure(Mpa)

0.35-0.63

Impact frequency(Hz)

≥32

≥30

≥28

≥33

≥23

Impact energy(J)

≥22

≥22

≥28

≥26

≥30

Air consumption(m3/min)

≤20

≤24

≤37

≤33

≤47

KAISHAN YO20 DATE:

Weight

≈18kg

Length

≈609mm

Cylinder dia.

60mm

Piston stroke

50mm

Air pressure

0.4Mpa

Impact frequency

≥30Hz

Air pipe inner dia

16 or or19mm

Water pipe inner dia

8mm

Air consumption

≤25 L/S

Shank dimension

22*108mm+1mm

Bit dimension

34- 40mm

FT100type air leg

Length

1312mm

Piston stroke

810mm

Cylinder dia

52mm

Weight

≈11kg


Light weight high speed pneumatic air pick hammer rock drill 561mm 20kg

Description:

This product is widely used in metallurgy, coal industry, road construction, mining and other drilling

operations.

· Hand-hold rock drill, hand hammer drilllow weight,reasonable structure,handy use and little air consumption.

· 6 hand-hold rock drill is a tool for the secondary blasting in quarry and especailly for rocking 20mm hose in

marble and granite,it has characteristic of low weight,reasonable structure,handy use and little air

consumption

Competitive Advantage:

1). save energy and high efficiency

2). strong impact energy

3). low vibration

4). easy handling

5). low noise

6). wet drilling

7). easy cleaning air /water holes

8). spare parts easily purchasing

ROCK DRILL

DRILL RIG

JACK HARMMER
