Portable high efficiency mine drilling rig machine 25m deepth / drilling machinery
Portable high efficiency mine drilling rig machine 25m deepth / drilling machinery
Specifications
Brand Name :
KAISHAN
Model Number :
KG960
Certification :
ISO9001
Place of Origin :
ZHEJIANG CHINA
MOQ :
1
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000
Delivery Time :
15DAYS AS GOT THE DOWN PAYMENT
Packaging Details :
wooden package as customer requirement
Condition :
new
Type :
Rotary Drilling Rig
Power Type :
Diesel
Rock Hardness :
Rock Hardness
After-sales Service Provided :
Engineers available to service mac
Description

New product Kaishan manufacturer KG960 diesel engine crawler drilling rig machine 80-125mm 25m deepth

Specification

Rock rigidity

F=6-20

Diameter of hole

Φ80-125mm

Optium drilling depth

25m

Rotation speed

120r/min

Rotation torque

2000N.m

Lift power

17 KN

Feed way

oil cylinder-chain

Feed distance

3000mm

Walk speed

0-2.0 km/h

gradeability

30°

Ground clearance

320mm

Weight

6000kg

Size of drill machine

5355*2225*2365mm

Sliding carriage pitch angle

Blow 135°,elevation5°, total 145°

Sliding carriage swing angle

Left100°,right45°,total 145°

Drill boom pitch angle

Blow 50°,elevation25°, total 75°

Drill boom pitch swing angle

Left45°, right90°, total135°

Sliding carriage suppling length

1200mm

power

YC-4D80(58Kw 2400r/min)

Drill pipe

Φ76

Working air pressure

1.0-2.4Mpa

Air consumption

9-18 m³/min

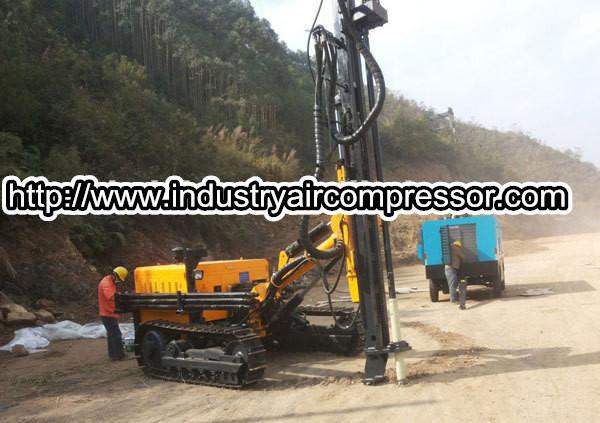

Introduction to KG960 portable drilling rig
KG960 Surface DTH drilling rig is designed according to the requirements of mines., which adopted hydraulic technology
(1) Has the characteristics of beautiful appearance, convenient operation, stable performance.
(2)Through the optimization of the hydraulic components configuration, it is applicable to different rock drill hole.
(3) It is applied to drilling with higher altitudes with high-power four-cylinder engine, providing strong rotary torque.
(4) High torque rotary reducer can meet larger and deeper aperture drilling operations.
(5) KG960 DTH drilling rig is applied to open-pit mining, road building, tunnel digging engineering and so on.

Advantages of KG960portable drilling rig
(1) Easy operation and high efficiency as the hydraulic feeding be taken
(2) As the ball type chuck and the driving rod, it can complete no-stopping rotating while the spindle relift.
(3) The pressure indicator of bottom hole can observe and control the well conditions easily.
(4) Close levers, convenient to operate.
(5) Compact size and light in weight are easy to set up and transport on working plains and mountai-n area.
(6) The innovation design of carriage and drill arm make a pendulum Angle protection play horizontal and vertical hole at the same time, and the horizontal hole is very low.
(7) Convenient operation and save labour
(8) centralized layout of operating handle. It is equipped with pedals, very tidy and beautiful,easy to operation.
(9) Speeding up the rotation speed so as to meet the market demand.
