Multi - function integrated crawler drilling rig machine , 36m Depth 135 - 190mm Diameter
Multi - function integrated crawler drilling rig machine , 36m Depth 135 - 190mm Diameter
Specifications
Brand Name :
KAISHAN
Model Number :
KT20
Certification :
ISO9001
Place of Origin :
ZHEJIANG CHINA
MOQ :
1
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000
Delivery Time :
15DAYS AS GOT THE DOWN PAYMENT
Packaging Details :
wooden package as customer requirement
Condition :
new
Type :
Rotary Drilling Rig
Power Type :
Diesel
Rock Hardness :
Rock Hardness
After-sales Service Provided :
Engineers available to service mac
Description

36m Depth 135-190mm Diameter KAISHAN multi-functions integrated drilling rig KT20/Self propelled air compressor drill rig

Welcome to SHAANXI KAISHAN EQUIPMENT CO.,LTD. Best quality goods, lowest price, perfect service.

Cooperation terms:

1. Price: FOB any port in china.

2. Minimum order: 1set.

3. Payment: T/T, L/C, O/A ect.

4. Shipping: 15-20days.

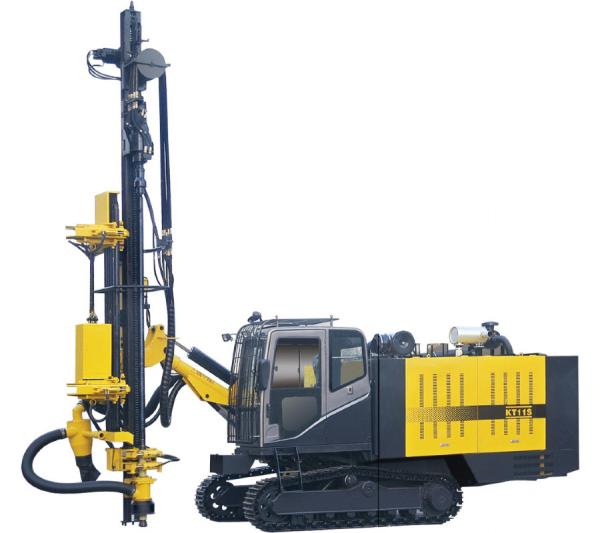

Kaishan kt20 crawler drilling rig machine

• Automatic releasing rod system disk type, automatic releasing rod drilling depth of 36

meters.

• he caterpillar engine, a strong driving force, reliable performance.

• The single engine two ends of the output layout, compact structure,convenient repair.

• High pressure and large discharge air compression system (22m3/min, 20bar) to ensure fast

drilling hammer.

• Adopting imported hydraulic parts and electrical.

KT20 Specifaication

Rock Hardness

f=6-20

Carriage pitch angle

125°

Hole diameter (mm)

135-190

Carriage swing angle

R97°L33°

Drill Depth(m)

36

Sliding frame lateral swing angle

R42°~15°

Walking speed(Km/h)

3.0

Drill arm swing angle

R42°L5°

Climing capacity

22°

Frame leveing angle

UP42° Down20°

Ground clearance(mm)

430

advacing srroke mm

4000

Power(Kw)

287

compreation length mm

1200

Diesel

C11

Drill rod

φ102x4000mm

Screw machine

exhaust aolume(m³/min)

22

Dust collecting mode

Dry

Screw machina

exhaust pressure(bar)

20

Collecting rod

Atomatic loading and

unloading mode

Dimension(mm)

11500×2700×3200

Atomatic protection

card

Electro-hydraulic

control card

Weight(Kg)

23000

Drill pipe lubrication

Atomatic lubrication

Rotating speed (r/min)

0-107

Drill pipe thread

protection

With the floating joint protection drill pipe thread

Rotary torque N*m

4100

Drilling angle indicator

Two dimensional electron angleindicator
