2900r/min Stainless Steel Magnetic Pump Chemical Fertilizer And Pesticide Pump
2900r/min Stainless Steel Magnetic Pump Chemical Fertilizer And Pesticide Pump
2900r/min Stainless Steel Magnetic Pump Chemical Fertilizer And Pesticide Pump
2900r/min Stainless Steel Magnetic Pump Chemical Fertilizer And Pesticide Pump
Specifications
Brand Name :
Huatao
Model Number :
HT-Magnetic Pump
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 200-1270 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 sets per month
Delivery Time :
20-35 days
Packaging Details :
Wooden Box
Name :
Stainless Steel Magnetic Pump
Material :
Cast Iron,Stainless Steel
Speed :
2900r/min
Head :
10～18m
Flow :
3.2～400m³/h
Usage :
Water Treatment Chemicals
Description

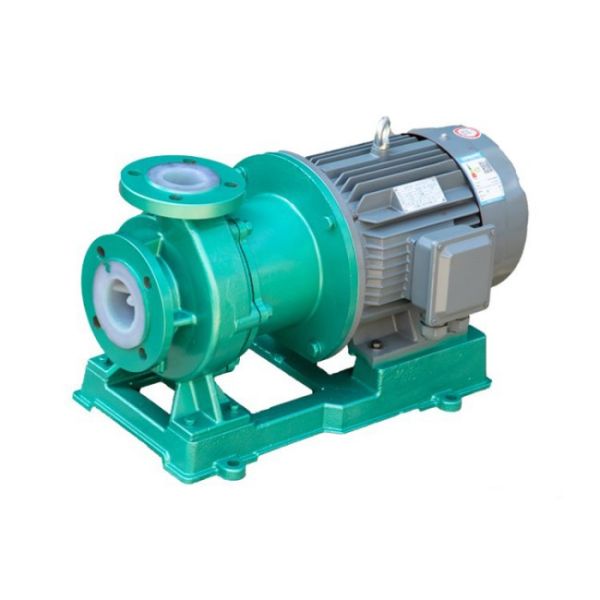

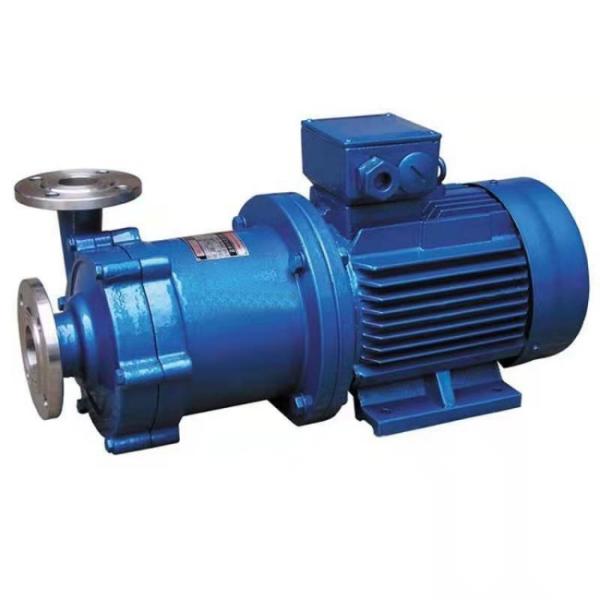

Stainless Steel Magnetic Pump Chemical Fertilizer And Pesticide Pump

Application range of magnetic pump
It is suitable for pumping and transporting acidic and alkaline liquids, oils, rare and precious liquids, toxic liquids, volatile liquids and water circulation equipment, especially for pumping and transporting flammable, leaking and explosive liquids.
Entry point temperature: -20℃～200℃.

Magnetic Pump Feature

Product Name Magnetic Pump
Material Cast Iron,Stainless Steel
Head

10~18m
Power 0.55-160kw
Flow

3.2-400m³/h

Temperature

-20~200℃

Special Preventing Leak Design Advantage of Magnetic Pump

Elimination of shaft seals and indirect drive with a magnetic coupling completely eliminates drips and leaks and will not contaminate the workplace as the pump's wetted parts are made of "thermoplastic". It can continuously transport acidic, alkaline, strong oxidants and other related corrosive media of any color without damage. It has the advantages of overall sealing, no leakage, and strong corrosion resistance.

The Principle of Operation Magnetic Pump :

The driving device is fixed on the motor shaft through the active magnetic joint, and the pump room is completely sealed. The impeller with magnets is indirectly driven in rotation via a magnetic coupling. Compact structure, safe and energy-saving.

Magnetic Pump body structure

The part contacting the liquid is thermoplastic and the armor is made of metal material. So the pump is enough to endure the weight of the channels and resist mechanical impact.

2900r/min Stainless Steel Magnetic Pump Chemical Fertilizer And Pesticide Pump2900r/min Stainless Steel Magnetic Pump Chemical Fertilizer And Pesticide Pump

2900r/min Stainless Steel Magnetic Pump Chemical Fertilizer And Pesticide Pump2900r/min Stainless Steel Magnetic Pump Chemical Fertilizer And Pesticide Pump
