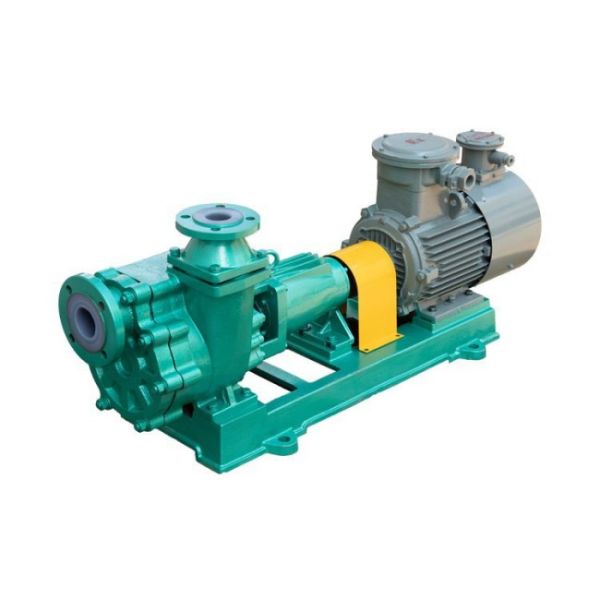

2900r/min High Head Electronic Fluoroplastic chemical pump 380V
2900r/min High Head Electronic Fluoroplastic chemical pump 380V
2900r/min High Head Electronic Fluoroplastic chemical pump 380V
2900r/min High Head Electronic Fluoroplastic chemical pump 380V
Specifications
Brand Name :
Huatao
Model Number :
HT-Petroleum chemical pump
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 750-12700 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 sets per month
Delivery Time :
20-35 days
Packaging Details :
Wooden Box
Name :
Petroleum chemical pump
Material :
Cast Iron,Stainless Steel
Voltage :
380V
Speed :
2900r/min
Head :
0.74-8.7bar
Flow :
1.75-130m³/h
Description

High Head Electronic Fluoroplastic Reinforced Chemical Pump Acid And Alkali Resistance

Fluoroplastic Chemical Pump Introduction:

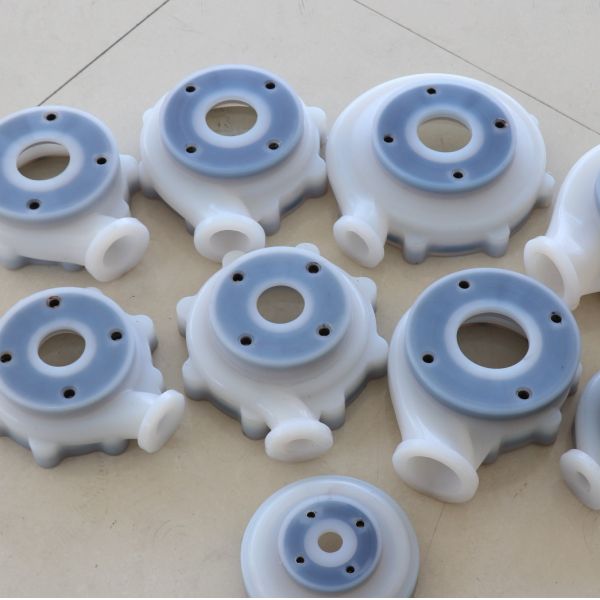

The fluoroplastic chemical pump is made of a metal shell lined with PTFE. The impeller and pump cover are integrally sintered and molded by PTFE outer metal inserts. The shaft seal adopts an external bellows mechanical seal, 99.9% alumina ceramics Or fixed seal ring made of silicon carbide, PTFE packing or rotary seal ring made of silicon carbide. Corrosion resistance, wear resistance, high temperature resistance, aging resistance, high mechanical strength, non-toxic decomposition, wide temperature range.

Fluoroplastic Chemical Pump Feature

Product Name Fluoroplastic chemical pump
Material Cast Iron,Stainless Steel
Head

4~250m
Power 0.55-160kw
Flow

1.75-130m³/h

Temperature

-85~200℃

Fluoroplastic Chemical Pump Application:

It is widely used in chemical, pharmaceutical, pesticide and paper industries for liquid transfer, wastewater treatment, acidification and other processes.

Fluoroplastic Chemical Pump Advantage:

Strong structure:
Strengthen ribs added on the pump body
Precision wax mould for main parts
API610 standard mechanical seal design
Dismountable couplers
• Safe and reliable
• Easy maintenance
• Low cost
• High efficiency
• Long service life

Fluoroplastic Chemical Pump Model description:

IH 50 – 32 – 125
IHF --------------- Corrosive resistant chemical pump
50 ---------------- Inlet diameter: 50mm
32 ----------------- Outlet diameter: 32mm
125 ---------------- Impeller diameter: 125mm

2900r/min High Head Electronic Fluoroplastic chemical pump 380V2900r/min High Head Electronic Fluoroplastic chemical pump 380V2900r/min High Head Electronic Fluoroplastic chemical pump 380V
