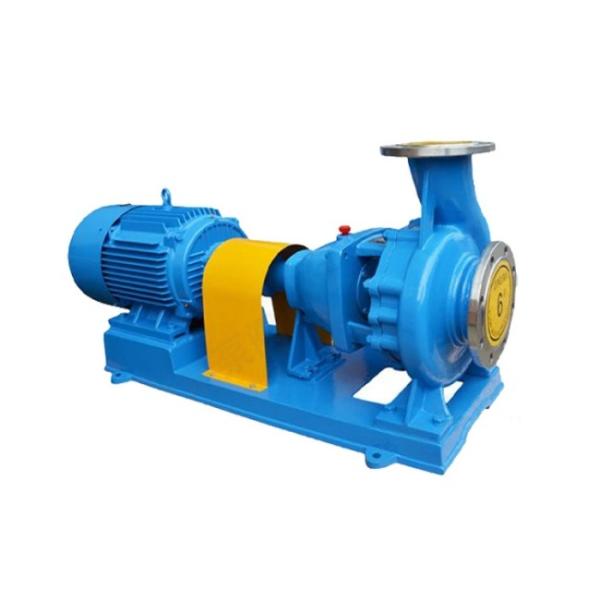

SS316 SS304 Industrial Chemical Pump Manufacturers For Chemical Gas Oil Industry
SS316 SS304 Industrial Chemical Pump Manufacturers For Chemical Gas Oil Industry
SS316 SS304 Industrial Chemical Pump Manufacturers For Chemical Gas Oil Industry
SS316 SS304 Industrial Chemical Pump Manufacturers For Chemical Gas Oil Industry
Specifications
Brand Name :
Huatao
Model Number :
HT-Chemical Centrifugal Pump
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 1500-5000 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 sets per month
Delivery Time :
20-35 days
Packaging Details :
Wooden Box
Name :
HT-Chemical Centrifugal Pump
Material :
Cast Iron;304;316
Head :
5~ 125m
Power :
0.55 ~ 90kw
Inlet diameter :
32 ~ 200mm
Flow :
0.3 ~ 400m³/h
Description

Cast Iron Stainless Steel Industrial Chemical Centrifugal Pump Uesd For Chemical Gas Oil Industry

Chemical Centrifugal Pump Description

The type centrifugal pump is a single-stage and single-suction (axial suction) corrosion-resisting centrifugal pump, which pumps corrosive liquid without solid particles and glueness similar to water. The temperature of the medium is - 20℃ ~105℃, if necessary, cooling measures can be taken to reach a higher temperature.

It widely applies to petroleum, chemical, metallurgical, power, paper making, foodstuff, pharmaceutical, synthetic fiber industry, etc.

Chemical Centrifugal Pump Range of properties

Product Name HT-Chemical Centrifugal Pump
Material Cast Iron:304 316
Head 5~ 125m
Power 0.55-90kw
Flow 0.3 ~ 400m³/h
Inlet diameter 32mm~200mm

Chemical Centrifugal Pump Feature

A wider range of properties higher efficiency convenient maintenance

The serial pumps have 40 basic types, among which there are 33 double speed(2900,1450r/min),and can reach 112 specifications after cutting the impeller diameter.

SS316 SS304 Industrial Chemical Pump Manufacturers For Chemical Gas Oil Industry

1. Pump body

2. Impeller

3. Impeller nut

4. Even after the line machine pump cover

5. Suspension

6. Mechanical sea gland

7. Bearing gland (pump)

8. Angular contact ball bearings

9. Pump shaft

10. Pump shaft

11. Angular contact ball bearings

12. Bearing gland (coupling)

13. Coupling

14. Shaft sleeve

15. Mechanical seal

16. Stent

17. Shield

SS316 SS304 Industrial Chemical Pump Manufacturers For Chemical Gas Oil Industry

SS316 SS304 Industrial Chemical Pump Manufacturers For Chemical Gas Oil Industry
