Copper Core Halogen Free Solar PV Cable H1Z2Z2-K Single Core UV Resistant
Copper Core Halogen Free Solar PV Cable H1Z2Z2-K Single Core UV Resistant
Specifications
Brand Name :
H1Z2Z2-K Solar Cable
Model Number :
HIZ2Z2-K
Certification :
TUV,ISO
Place of Origin :
Hebei，China
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10DAYS
Packaging Details :
Steel wooden drum, Coil In Foil / Drum
Conductor :
Tinned copper
Test Voltage :
6.5kV AC
Temperature Rating :
Fixed: -40°C to +90°C
Core :
1 Core/2 Core
Description

Copper Core Halogen Free Solar Cable PV Cable H1Z2Z2-k Single Core


Application


The Copper Core Halogen Free Solar Cable H1Z2Z2-K Single Core is specifically designed for use in photovoltaic (PV) systems, providing reliable and efficient power transmission between solar panels and inverters.

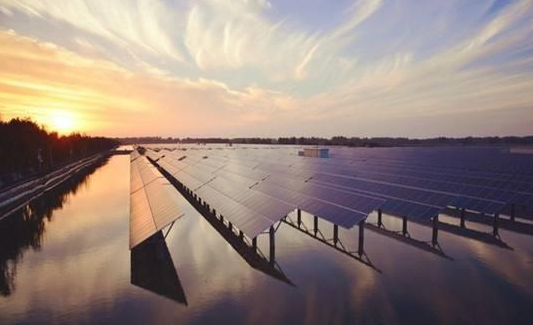

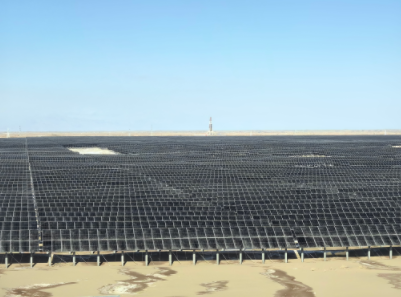

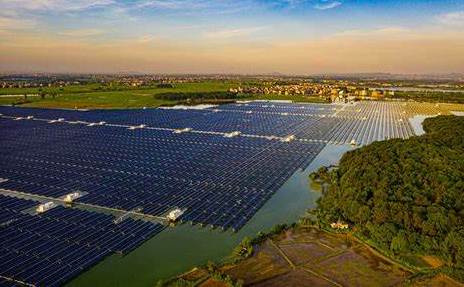

This cable is suitable for both indoor and outdoor installations, including rooftop solar systems, ground-mounted solar farms, and large-scale photovoltaic power plants. Thanks to its halogen-free, low smoke properties, it ensures enhanced safety in case of fire, making it ideal for installations in residential, commercial, and industrial environments.

With excellent UV resistance, weather resistance, and ozone resistance, the cable is capable of withstanding harsh environmental conditions such as prolonged sunlight exposure, temperature fluctuations, and humidity. It is also suitable for fixed installation, free hanging, and installation in cable trays or conduits.

The flexible stranded copper conductor allows for easy installation, while the durable insulation and sheath materials ensure a long service life, typically over 25 years in solar applications.

Typical applications include:

  • Solar panel to inverter connections
  • DC cabling in photovoltaic systems
  • Rooftop and distributed solar installations
  • Utility-scale solar power plants

Compliant with international standards such as EN 50618 and IEC 62930, this solar cable guarantees high performance, safety, and long-term reliability in renewable energy systems.



Constrcution


  1. Conductor: Tinned copper, electrical property & Structure in accordance with EN60228 Class 5.
  2. Insulation: LSZH electron-beam cross-linked Polyolefin copolymer ROHS material, prior color black or as per customer’s request.
  3. Outer Sheath: LSZH & UV-resistant electron-beam cross-linked Polyolefin copolymer ROHS material, prior color black or as per customer’s request.


Specification


Cable structure parameters



Cross section(mm²)

Conductor Construction(no/mm)

Conductor Stranded OD.max(mm)

Cable OD.(mm)

Approximate weight of cable
kg/km

Max Cond Resistance(Ω/km,20°C)

1×1.5

48/0.20

1.58

4.8

35

13.7

1×2.5

77/0.20

2.02

5.2

47

8.21

1×4

56/0.285

2.46

5.7

64

5.09

1×6

84/0.285

3.01

6.3

86

3.39

1×10

77/0.40

4.1

7.2

128

1.95

1×16

7×17/0.40

5.5

8.9

196

1.24

1×25

7×27/0.40

6.7

10.7

299

0.795

1×35

7×38/0.40

8.2

12.4

407

0.565

1×50

19×20/0.40

10.0

14.6

571

0.393

1×70

19×28/0.40

11.6

16.4

773

0.277

1×95

19×38/0.40

13.5

18.5

1024

0.210

1×120

24×38/0.40

14.4

19.8

1266

0.164

1×150

30×38/0.40

16.2

22.2

1584

0.132

1×185

37×38/0.40

18.2

25.0

1967

0.108

1×240

48×38/0.40

20.6

27.8

2518

0.0817
