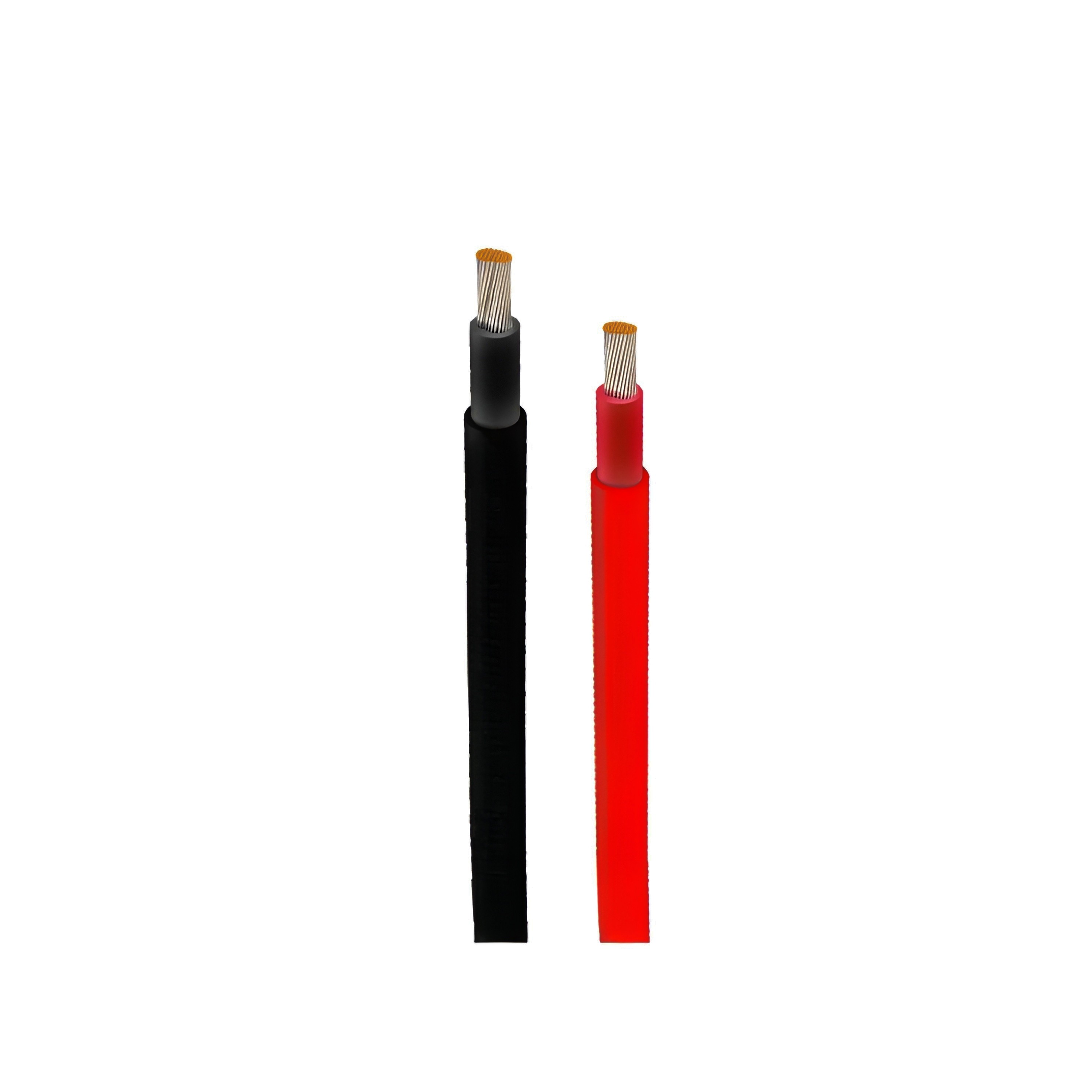

Photovoltaic PV Cable Solar Cable H1z2z2-k Copper Core XLPO Jacket 6mm2 4mm2 1500v
Photovoltaic PV Cable Solar Cable H1z2z2-k Copper Core XLPO Jacket 6mm2 4mm2 1500v
Specifications
Brand Name :
Zhongdong
Model Number :
H1z2z2-k
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Voltage :
1.0/ 1.5kV
Armoring :
No
Insulation :
PVC
Core :
Multi cores
Temperature range :
- 30℃ to + 70℃
Sheathed :
PVC
Description

Photovoltaic PV Cable Solar Cable H1z2z2-k Copper Core XLPO Jacket 6mm2 4mm2 1500v


APPLICATION


Primarily used for DC connections between solar panels, including:

  • Series connections within panel arrays
  • Parallel connections between strings and DC distribution boxes (combiners)
  • Links from combiners to inverters


CONSTRUCTION


  • Conductor: Class 5 tinned copper conductors
  • Insulation: Halogen free flame-retardant insulation material for solar cables
  • Outer sheath:Halogen free flame retardant sheath material for solar cables

Photovoltaic PV Cable Solar Cable H1z2z2-k Copper Core XLPO Jacket 6mm2 4mm2 1500v



CHARACTERISTIC

  • Voltage Rating: Uo/U:1.0/1.0kV Um:1.5kV
  • Maximum operating temperature of conductor:+120℃
  • Operating ambient temperature: -40℃~+90℃
  • Cable laying temperature:Not less than -25℃
  • Minimum Bending Radius: 6D


SPECIFICATIONS

Cross section(mm²)

Conductor Construction(no/mm)

Conductor Stranded OD.max(mm)

Cable OD.(mm)

Approximate weight of cable
kg/km

Max Conductor Resistance(Ω/km,20°C)

1×1.5

48/0.20

1.58

4.8

35

13.7

1×2.5

77/0.20

2.02

5.2

47

8.21

1×4

56/0.285

2.46

5.7

64

5.09

1×6

84/0.285

3.01

6.3

86

3.39

1×10

77/0.40

4.1

7.2

128

1.95

1×16

7×17/0.40

5.5

8.9

196

1.24

1×25

7×27/0.40

6.7

10.7

299

0.795

1×35

7×38/0.40

8.2

12.4

407

0.565

1×50

19×20/0.40

10.0

14.6

571

0.393

1×70

19×28/0.40

11.6

16.4

773

0.277

1×95

19×38/0.40

13.5

18.5

1024

0.210

1×120

24×38/0.40

14.4

19.8

1266

0.164

1×150

30×38/0.40

16.2

22.2

1584

0.132

1×185

37×38/0.40

18.2

25.0

1967

0.108

1×240

48×38/0.40

20.6

27.8

2518

0.0817


OUR FACTORY


Photovoltaic PV Cable Solar Cable H1z2z2-k Copper Core XLPO Jacket 6mm2 4mm2 1500v



PROJECTS


Photovoltaic PV Cable Solar Cable H1z2z2-k Copper Core XLPO Jacket 6mm2 4mm2 1500v


PARTNER



Photovoltaic PV Cable Solar Cable H1z2z2-k Copper Core XLPO Jacket 6mm2 4mm2 1500vPhotovoltaic PV Cable Solar Cable H1z2z2-k Copper Core XLPO Jacket 6mm2 4mm2 1500v


Why Choose us

Photovoltaic PV Cable Solar Cable H1z2z2-k Copper Core XLPO Jacket 6mm2 4mm2 1500v

FAQ

What is the primary application of H1Z2Z2-K cable?‌

Designed for DC connections in photovoltaic systems, including panel-to-panel, string-to-inverter, and combiner-to-inverter links. It is unsuitable for AC power transmission.
Is this cable UV-resistant?‌

Yes, its XLPE insulation and special sheath resist UV degradation, ensuring outdoor durability.
What are the voltage and lifespan specifications?‌

Rated for 1.5kV DC with a lifespan of 30+ years (some upgraded versions claim 40 years).
Can it be used for underground installation?‌

Yes, but requires proper conduit or trenching. Direct burial is permissible due to its robust护套 design.
How does it differ from PV1-F cables?‌

H1Z2Z2-K offers higher voltage (1.5kV vs. 1kV), dual-layer insulation, and superior mechanical strength. PV1-F is being phased out.
What conductor material is used?‌

Tinned copper conductors for enhanced oxidation resistance and conductivity.
What maintenance does H1Z2Z2-K require?‌

Minimal maintenance; periodic inspections for physical damage or rodent bites are recommended.
