CU XLPE PVC Low Voltage Power Cable Copper Wire Shielded Cable 0.6/1kV
CU XLPE PVC Low Voltage Power Cable Copper Wire Shielded Cable 0.6/1kV
Specifications
Brand Name :
LV cable
Model Number :
NYBY NAYBY
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Voltage :
3.6/6kV
Insulation :
XLPE
Jacket :
PVC
Feature :
LSZH
Amour :
Steel Tape
Application :
underground, overhead, indoor, mining and power distribution etc
Description

CU/XLPE/PVC Low Voltage Cable Copper Wire Shielded Cable 0.6/1kV



Application


The cable could be laying indoors, in tunnel, cable trench, or direct in ground, they can bear external mechanical forces, but unable to bear large pulling force.



Construction


  1. Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
  2. Insulation:XLPE
  3. Filler: Non-hygroscopic material
  4. Screen: Copper Wire
  5. Binder tape:: Non-hygroscopic material
  6. Sheath PVC


Characteristics


  1. Test Voltage: 3.5kV 5min No Breakdown
  2. The ambient temperature for installation: ≥0℃.
  3. Maximum conductor temperature in normal operation:≤90℃.
  4. Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
  5. Permissible minimum bending radius:
  6. Single unarmoured cable: 20 x OD
  7. Multi-core unarmoured cable: 15 x OD
  8. Single armoured cable: 5 x OD
  9. Multi-core armoured cable: 12 x OD
  10. Note : OD=Overall Diameter of Cable



Specification


Nominal section area

Approx. overall diameter

Approx. weight of cable

Maximum DC resistance of the conductor

mm2

mm

kg/km

Ω/km

Cu

Al

20℃ Cu

20℃ Al

4×1.5 RE

11.4

177

–

12.1

–

4×2.5 RE

12.4

226.9

164.7

7.41

12.1

4×4 RE

14.5

320.2

220.7

4.61

7.41

4×6 RE

15.7

424.1

274.9

3.08

4.61

4×10 CC

18.2

607.6

358.9

1.83

3.08

4×16 CC

20.6

861

463.1

1.15

1.91

4×25 CC

24.5

1287.4

665.6

0.727

1.2

4×35 CC

26.9

1687.4

816.9

0.524

0.868

4×50 SM

28

2295.4

1051.8

0.387

0.641

4×70 SM

31.6

3095.1

1354.1

0.268

0.443

4×95 SM

35.9

4146

1783.2

0.193

0.32

4×120 SM

38.5

5125.7

2141.1

0.153

0.253

4×150 SM

42.8

6379.9

2649.2

0.124

0.206

4×185 SM

48.4

7849.2

3248

0.0991

0.164

4×240 SM

53.5

10084

4114.8

0.0754

0.125

4×300 SM

59.2

12526.3

5064.8

0.0601

0.1

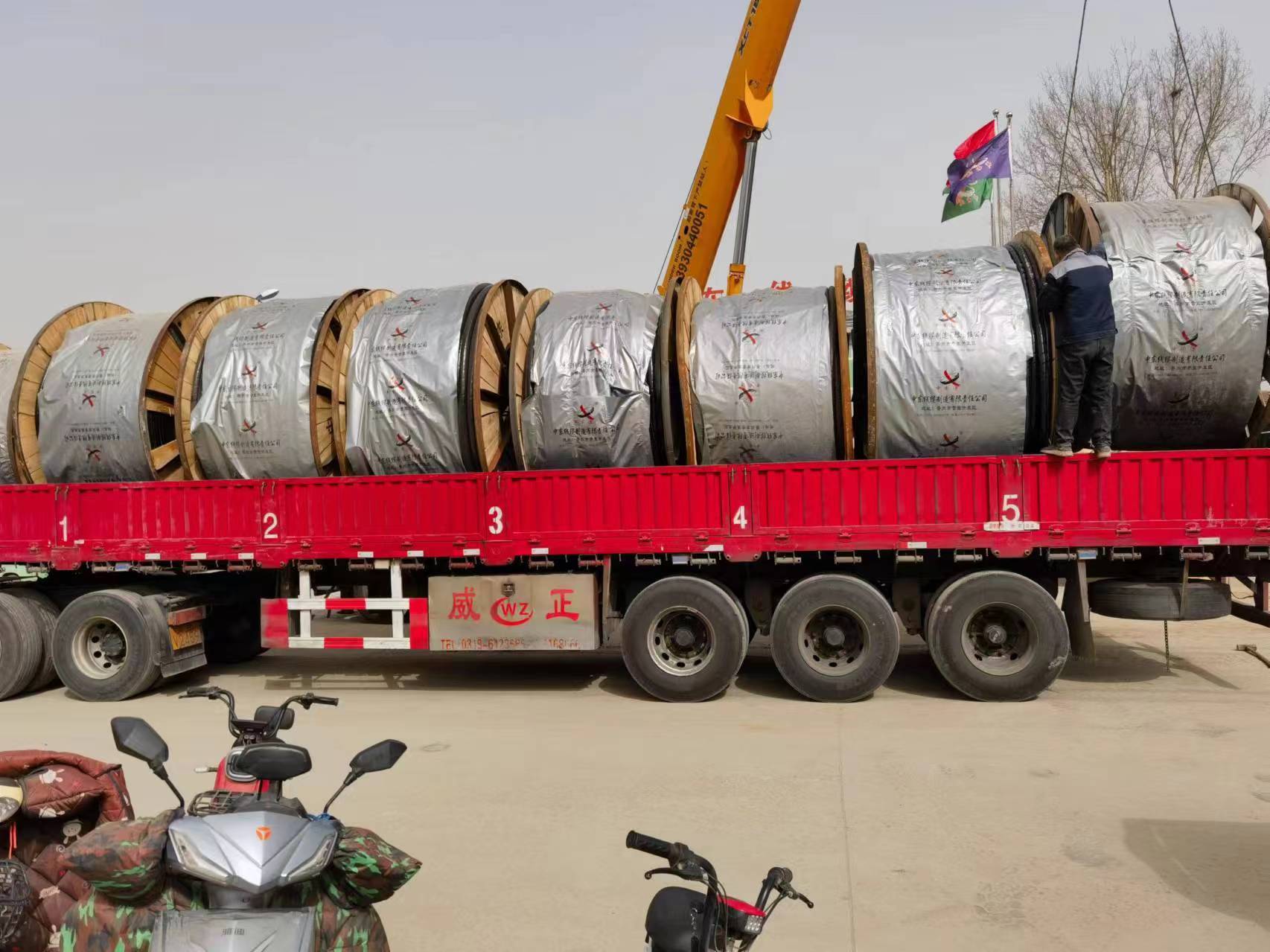

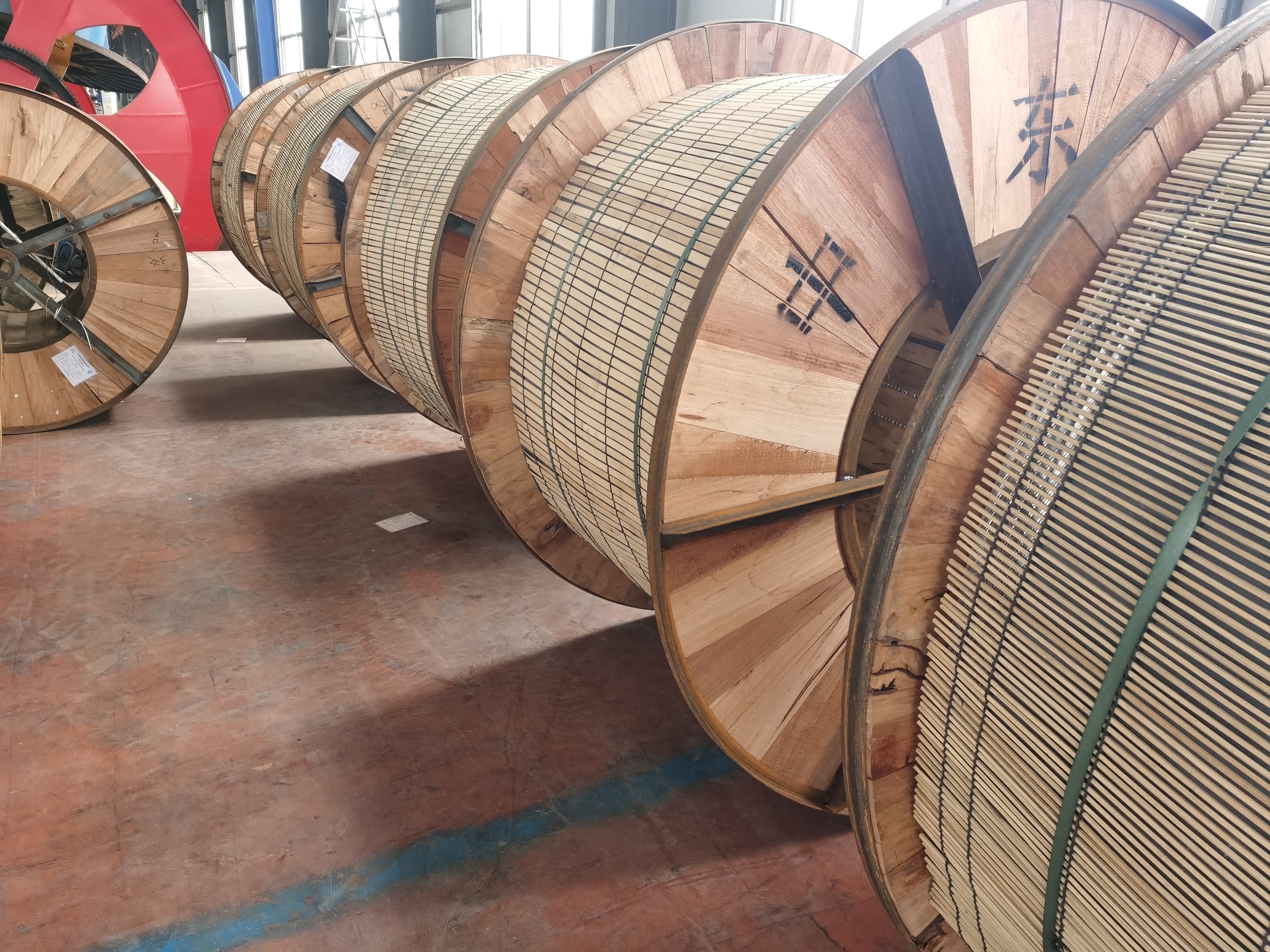

Delivery

CU XLPE PVC Low Voltage Power Cable Copper Wire Shielded Cable 0.6/1kVCU XLPE PVC Low Voltage Power Cable Copper Wire Shielded Cable 0.6/1kV
