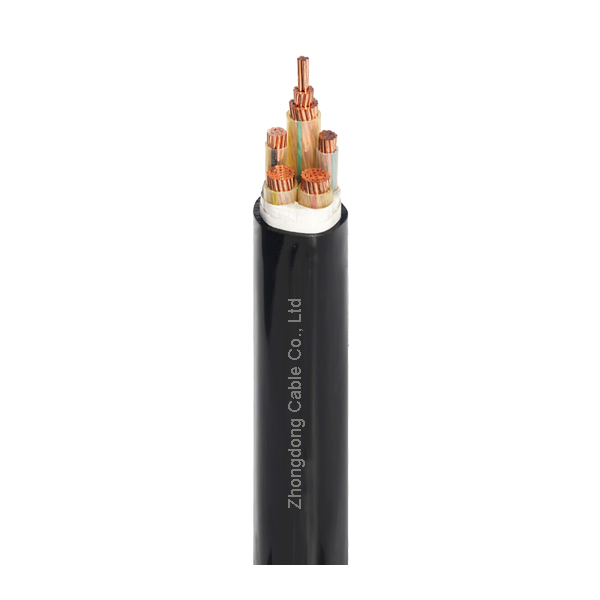

Non Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power Cable
Non Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power Cable
Specifications
Brand Name :
Low Voltage Cable
Model Number :
NYBY NAYBY
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Voltage :
3.6/6kV
Insulation :
XLPE
Jacket :
PVC
Feature :
LSZH
Amour :
Steel Tape
Application :
underground, overhead, indoor, mining and power distribution etc
Description

Non Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power Cable



Application

Application of Non Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power Cable‌

This cable is widely used in ‌industrial and commercial buildings‌ where fire safety is critical. It is commonly installed in ‌power distribution systems‌, ‌emergency lighting circuits‌, and ‌fire alarm systems‌. Due to its flame-retardant properties and steel tape armour, it is suitable for ‌underground installations‌, ‌tunnels‌, and ‌areas with high mechanical stress‌. It is also used in ‌mining operations‌ and ‌chemical plants‌ where resistance to fire and mechanical damage is essential.


Construction

Conductor:Class 1/Class 2 stranded Copper conductor

Refractory layer:Single sided gold mica tape

Insulation:XLPE

Filler(options):Polypropylene mesh tear rope or flame-retardant filling

Outer sheath:Polyethylene (PE)


Non Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power CableNon Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power Cable

Characteristics

Voltage Rating Uo/U:0.6/1kV

Maximum system voltage:12kV

Maximum operating temperature of conductor:+90℃

Operating ambient temperature: -15℃~+55℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius: Single core:20D multi core:15D (D is the actual outer diameter of the cable)

Specification

Spec
mm²

Conductor diameter mm

Approx outer diameter of cable mm

Approx cable weight

kg/km

NH

ZAN

ZBN

ZCN

NH

ZAN

ZBN

ZCN

1×1.5

1.37

/

6.1

5.8

5.8

5.8

49.3

48.1

48.1

1×2.5

1.75

/

6.5

6.2

6.2

6.2

60.9

59.6

59.6

1×4

2.22

/

6.9

6.6

6.6

6.6

77.5

76.3

76.3

1×6

2.74

/

7.5

7.2

7.2

7.2

100.0

98.7

98.7

1×10

4

/

9.0

8.7

8.7

8.7

152.2

151.0

151.0

1×16

5

/

10.0

10.3

10.3

10.3

213.9

222.7

222.7

1×25

5.59

/

11.0

11.3

11.3

11.3

305.4

315.1

315.1

1×35

6.62

/

12.0

12.3

12.3

12.3

399.9

410.6

410.6

1×50

7.65

/

13.3

14.4

14.0

13.6

521.5

556.2

544.6

1×70

9.21

/

15.1

16.2

15.8

15.4

724.7

763.8

750.8

1×95

10.78

/

16.8

17.9

17.5

17.1

976.9

1020.7

1006.3

1×120

12.12

/

18.3

19.5

19.1

18.6

1211.3

1259.0

1243.3

1×150

13.69

/

20.8

21.6

21.2

20.8

1497.7

1546.6

1529.2

1×185

15.21

/

22.7

23.6

23.2

22.7

1851.3

1904.8

1885.8

1×240

17.4

/

25.3

26.2

25.7

25.3

2400.0

2460.0

2439.0

1×300

19.55

/

27.8

28.7

28.3

27.8

2983.5

3050.1

3027.0

1×400

22.05

/

30.9

31.8

31.4

30.9

3756.2

3830.9

3805.3

1×500

25

/

34.5

35.3

34.9

34.5

4786.0

4870.0

4841.5

1×630

28.4

/

38.6

39.5

39.0

38.6

6152.5

6248.3

6216.4

2×1.5

1.37

/

10.3

10.6

10.6

11.0

114.6

128.5

128.5

2×2.5

1.75

/

11.0

11.3

11.3

11.7

141.1

156.7

156.7

2×4

2.22

/

11.9

12.2

12.2

12.2

178.6

196.2

196.2

2×6

2.74

/

12.9

13.2

13.2

12.9

229.1

249.3

249.3

2×10

4

/

16.0

16.3

16.3

16.3

350.4

410.2

416.1

2×16

5

/

18.0

18.3

18.3

18.3

487.3

565.3

572.1

2×25

5.59

/

20.3

20.3

20.3

20.3

690.6

785.0

792.5

2×35

6.62

/

22.4

22.4

22.4

22.4

897.5

1015.6

1024.0

2×50

7.65

/

24.8

25.7

24.8

24.8

1164.0

1364.5

1323.3

2×70

9.21

/

28.4

29.2

28.4

28.4

1608.2

1868.7

1821.9

2×95

10.78

/

31.9

32.7

31.9

31.9

2162.5

2484.6

2432.1

2×120

12.12

/

35.1

36.0

35.1

35.1

2687.0

3074.8

3017.0

2×150

13.69

/

39.3

40.1

39.3

39.3

3310.0

3791.4

3726.9

2×185

15.21

/

43.3

44.2

43.3

43.3

4099.1

4681.5

4589.4

2×240

17.4

/

48.5

49.3

48.5

48.5

5305.6

6028.0

5922.9

2×300

19.55

/

53.5

53.5

53.5

53.5

6592.0

7377.9

7347.2

2×400

22.05

/

59.7

59.7

59.7

59.7

8297.4

9280.2

9243.4

3×1.5

1.37

/

10.8

11.1

11.1

11.5

137.5

151.3

151.3

3×2.5

1.75

/

11.6

11.9

11.9

12.4

173.7

189.0

189.0

3×4

2.22

/

12.6

12.9

12.9

12.9

225.6

242.8

242.8

3×6

2.74

/

13.7

14.0

14.0

13.6

295.7

315.4

315.4

Contact us for more details


Our factory


Non Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power Cable


Application


Non Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power Cable

About us


Non Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power Cable


Partner


Non Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power CableNon Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power Cable



FAQ

Are you trading company or manufacturer ?
We are manufacturer and trading company.

What types of low-voltage cables do you offer?‌
We provide a range of LV cables, including armoured (STA/PVC) and non-armoured (XLPE/PE) types, with voltage ratings from 0.6/1kV up to higher capacities.

Are your cables suitable for fire-resistant applications?‌
Yes, our fire-resistant cables are designed for critical environments like industrial plants, tunnels, and emergency systems, with flame-retardant properties to enhance safety.

Can you customize cables for specific project needs?‌
Absolutely, we offer customization for size, length, and application-specific requirements, including tailored packaging and delivery options.

What is the minimum order quantity (MOQ) for your cables?‌
We can adjust based on project scale and customer agreements.

How do you ensure product quality during production?‌
Our process includes 100% finished product inspection, testing for electrical and mechanical performance, and adherence to strict quality control protocols.

What are your delivery and payment terms?‌
We support flexible terms such as FOB, CIF, and T/T payment, with fast delivery timelines to meet urgent project deadlines.
