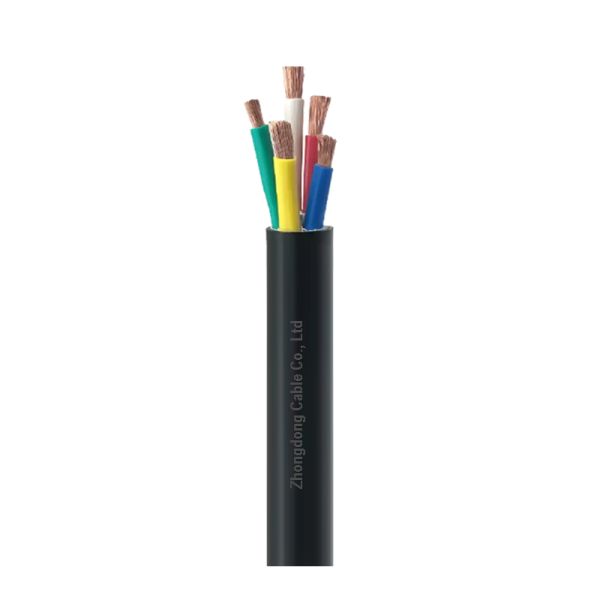

High Performance Low Voltage Cable 3 Core 4 Core 5 Core CU/XLPE/PVC Cable
High Performance Low Voltage Cable 3 Core 4 Core 5 Core CU/XLPE/PVC Cable
Specifications
Brand Name :
0.6/1kV Low Voltage Cable
Model Number :
NCYY NAYY
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Voltage :
0.6/1kV
Insulation :
PVC
Sheath :
PVC
Conductor :
Copper
Description

High Performance Low Voltage Cable 3 Core 4 Core 5 Core CU/XLPE/PVC Cable


APPLICATION

The cables are typically used in 0.6/1kV rated voltage circuits, the main applications include power transmission and distribution, Industrial Equipment and commercial building, and underground Distribution and harsh area etc.


CONSTRUCTION

Conductor: Class 2 stranded Copper conductor

Insulation:Cross-Linked Polyethylene(XLPE)

Outer sheath:Polyvinyl chloride (PVC)

CHARACTERISTIC

  • Voltage Rating Uo/U: 0.6/1kV
  • Maximum system voltage: 12kV
  • Maximum operating temperature of conductor:+90℃
  • Operating ambient temperature: -20℃~+45℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  • Minimum Bending Radius: Single core:20D Multicire: 15D


SPECIFICATION

Specs

mm²

Conductor diameter
mm

Nominal thickness of insulation
mm

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

3×1.5

1.38

0.7

1.8

10.4

142

3×2.5

1.78

0.7

1.8

11.3

183

3×4

2.25

0.7

1.8

12.3

240

3×6

2.76

0.7

1.8

13.4

311

3×10

4.0

0.7

1.8

16.0

446

3×16

5.0

0.7

1.8

18.2

641

3×25

6.1

0.9

1.8

21.5

955

3×35

7.2

0.9

1.8

23.9

1259

3×50

8.4

1.0

1.8

27.1

1674

3×70

10.0

1.1

1.9

31.2

2347

3×95

12.0

1.1

2.0

35.7

3176

3×120

13.0

1.2

2.1

38.5

3931

3×150

14.9

1.4

2.3

43.9

4893

3×185

16.5

1.6

2.4

48.5

6050

3×240

18.4

1.7

2.6

53.5

7828

3×300

21.0

1.8

2.8

59.9

9763

3×400

23.4

2.0

3.1

66.6

12470

ABOUT US

High Performance Low Voltage Cable 3 Core 4 Core 5 Core CU/XLPE/PVC Cable


APPLICATION

High Performance Low Voltage Cable 3 Core 4 Core 5 Core CU/XLPE/PVC Cable


PACKAGE


High Performance Low Voltage Cable 3 Core 4 Core 5 Core CU/XLPE/PVC Cable


PARTNER


High Performance Low Voltage Cable 3 Core 4 Core 5 Core CU/XLPE/PVC CableHigh Performance Low Voltage Cable 3 Core 4 Core 5 Core CU/XLPE/PVC Cable


FAQ

Q: Do you offer cable customization services?

A: Yes. We support custom logo printing and specification adjustments (core count, conductor size, materials, etc.), all compliant with international standards.

Q: What is the minimum order quantity (MOQ)?

A: Flexible negotiation is allowed.

Q: What is the production lead time?

A: 7–30 working days for standard orders; 15–35 working days for customized ones (logo, special materials).

Q: Can I get free samples?

A: Free samples are provided (freight collect). Custom samples require a refundable fee.

Q: What payment terms do you accept?

A: We accept T/T (30% deposit, 70% balance before shipment), L/C at sight. Flexible terms for long-term partners.

Q: How are export cables packaged?

A: Cables are wound on wooden/plastic reels, wrapped in waterproof film, and labeled with product specs and shipping marks.

Q: How do you ensure cable quality?

A: Full-process quality control (raw material, in-production, final testing) is implemented. A Certificate of Conformity (COC) is provided for all orders.

Q: Do your flame-retardant cables meet international standards?

A: Yes. They comply with IEC 60332 flame-retardant standards, inhibiting flame spread effectively.
