600V 1000V LV Low Voltage Cable For Underground , Low Voltage Electrical Wire
600V 1000V LV Low Voltage Cable For Underground , Low Voltage Electrical Wire
Specifications
Brand Name :
Low Voltage Electrical Wire
Certification :
IEC,CE,CCC,ISO
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different Qty
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Voltage :
600V, 1000V
Standard :
IEC60502-1
Feature :
LSZH
conductor :
Copper or Aluminium
Type :
XLPE insulated, PVC sheath, PVC Jacket
Armour :
Steel Wire
Description

0.6/1kv LV Low Voltage Cable for Underground Use CU/XLPE/SWA/PVC


‌Application


Suitable for use in power distribution lines with rated voltage 0.6/1KV. For laying in shaft, water underground and large difference of level, able to bear external mechanical pressure and moderate pulling force.



Construction

Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum

Insulation:XLPE

Filler: Non-hygroscopic material

Inner sheath: PVC

Armouring: Steel Wire

Outer Sheath PVC


Specification


Specs
mm²

Conductor diameter
mm

Nominal thickness of insulation
mm

Lining thickness
mm

Nominal thickness of steel wire
mm

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

Stainless steel wire armor

Aluminum wire armor

1×10

4

1

1

0.8

1.4

13.1

353

/

1×16

5

1

1

0.8

1.4

14.1

437

/

1×25

6.1

1.2

1

0.8

1.4

15.6

571

/

1×35

7.2

1.2

1

0.8

1.4

16.7

690

/

1×50

8.4

1.4

1

1.25

1.5

19.4

1003

775

1×70

10

1.4

1

1.25

1.5

21

1256

1002

1×95

12

1.6

1

1.25

1.6

23.7

1613

1320

1×120

13

1.6

1

1.6

1.7

25.6

2021

1627

1×150

14.9

1.8

1

1.6

1.7

27.9

2409

1961

1×185

16.5

2

1

1.6

1.8

30.1

2845

2365

1×240

18.4

2.2

1

1.6

1.9

32.6

3520

2987

1×300

21

2.4

1.2

2

2

37.2

4542

3792

1×400

23.4

2.6

1.2

2

2.1

40.3

5547

4714

1×500

26.6

2.8

1.2

2

2.2

44.1

6788

5871

1×630

30

2.8

1.2

2

2.4

47.9

8293

7293


Characteristic

Voltage Rating: Uo/U:0.6/1kV Um:1.2kV

Maximum operating temperature of conductor:+70℃

Operating ambient temperature: -20℃~+45℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius: Single core:15D multi core:12D (D is the actual outer diameter of the cable)

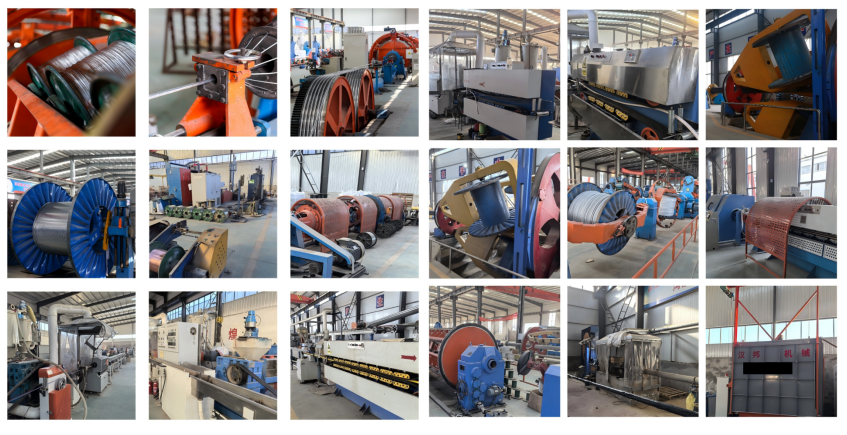

Our Factory

600V 1000V LV Low Voltage Cable For Underground , Low Voltage Electrical Wire

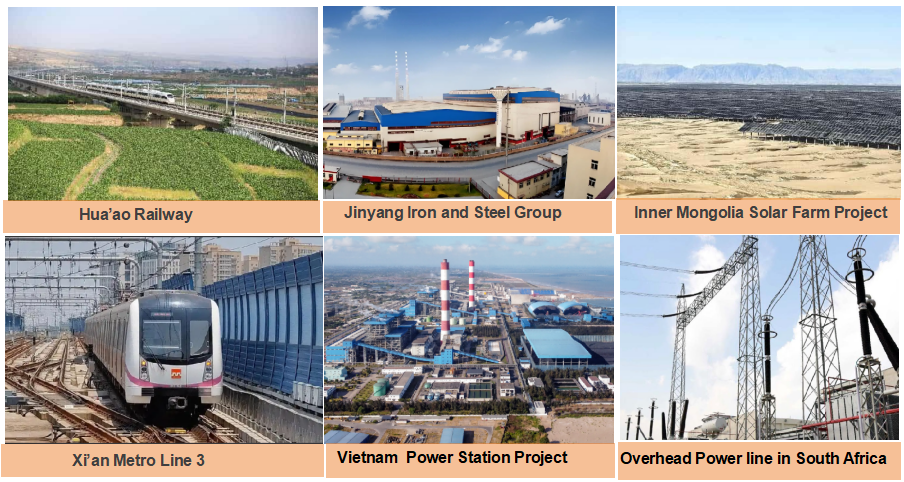

Our Projects

600V 1000V LV Low Voltage Cable For Underground , Low Voltage Electrical Wire

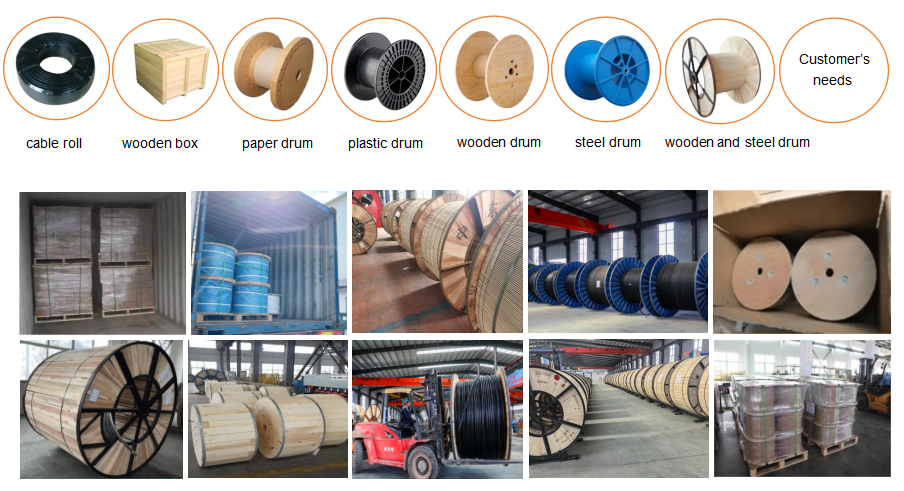

Our Package

600V 1000V LV Low Voltage Cable For Underground , Low Voltage Electrical Wire


Our Partner

600V 1000V LV Low Voltage Cable For Underground , Low Voltage Electrical Wire



FAQ

Q: Are you the trading company or Manufacturer?

A: We are the manufacturer, and we supply the factory price to you.

Q: How long does it take to get a quote back?

A: Most quotes are returned within 24 hours.

Q: What's your payment terms?

A: T/T,L/C,Western Union,etc.

Q: Do you offer free sample?

A: Yes, we offer free sample, but freight collect.

Q: How long can I expect to get the sample?

A: After you pay the freight charge , the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days.

Q: Where is your factory?
A: Our factory is located in Yingli, HeBei, China. If you want to visit our company, we will arrange everything for you.

Q:What the warrenties do your products carry?

A: We guarantee all of our products, wires and cables, are free from defects. We will take back any product that does not meet the agreed quality by both parties.
